8.5 Firmware Updating with K-PWA-DLM-320
Thefirmware oftheoption (FAX ROM)canbe updatedindividuallybyusingK-PWA-DLM-
320F. Update the ROM data written on each board according to the need such as the case of
replacing the board.
Options
Model name Firmware Stored
FAXUnit
(GD-1340)
FAXrmware FAXboard
K-PWA-DLM-320F
[1]
[3]
[4]
[2]

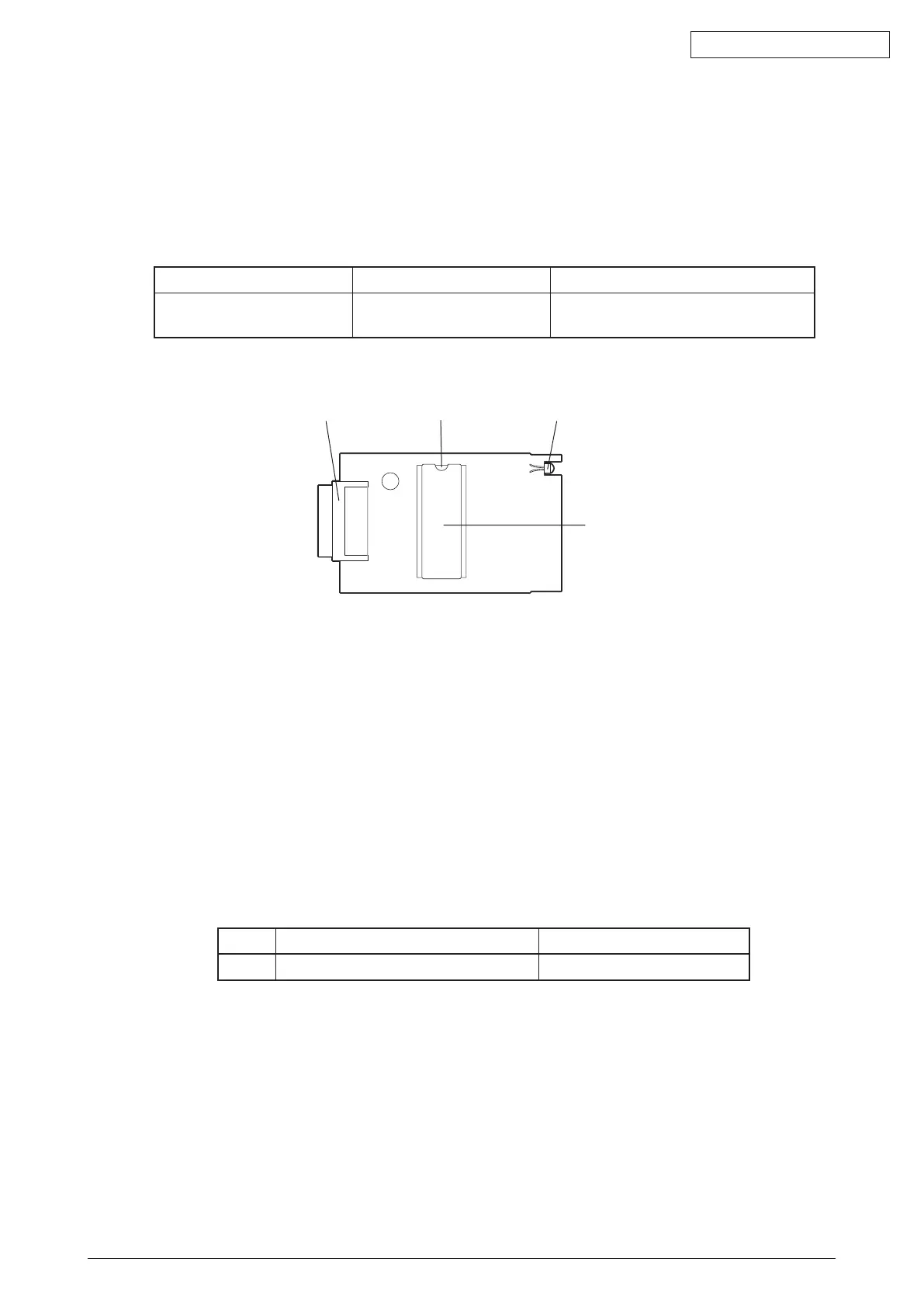

Fig.8-17
[1] Connector
[2] Mark for ROM installation direction
[3]LED
[4] ROM
Important:
Pay attention to the direction of the ROM.
Remarks: Useable jigs
Downloadjigsforthisequipmentareasfollows:
No Type of jig Remarks
1 K-PWA-DLM-320
