Omega DP41-B - Figure 33-1 Meter Housing and Panel Cutout

33
Specifications
112

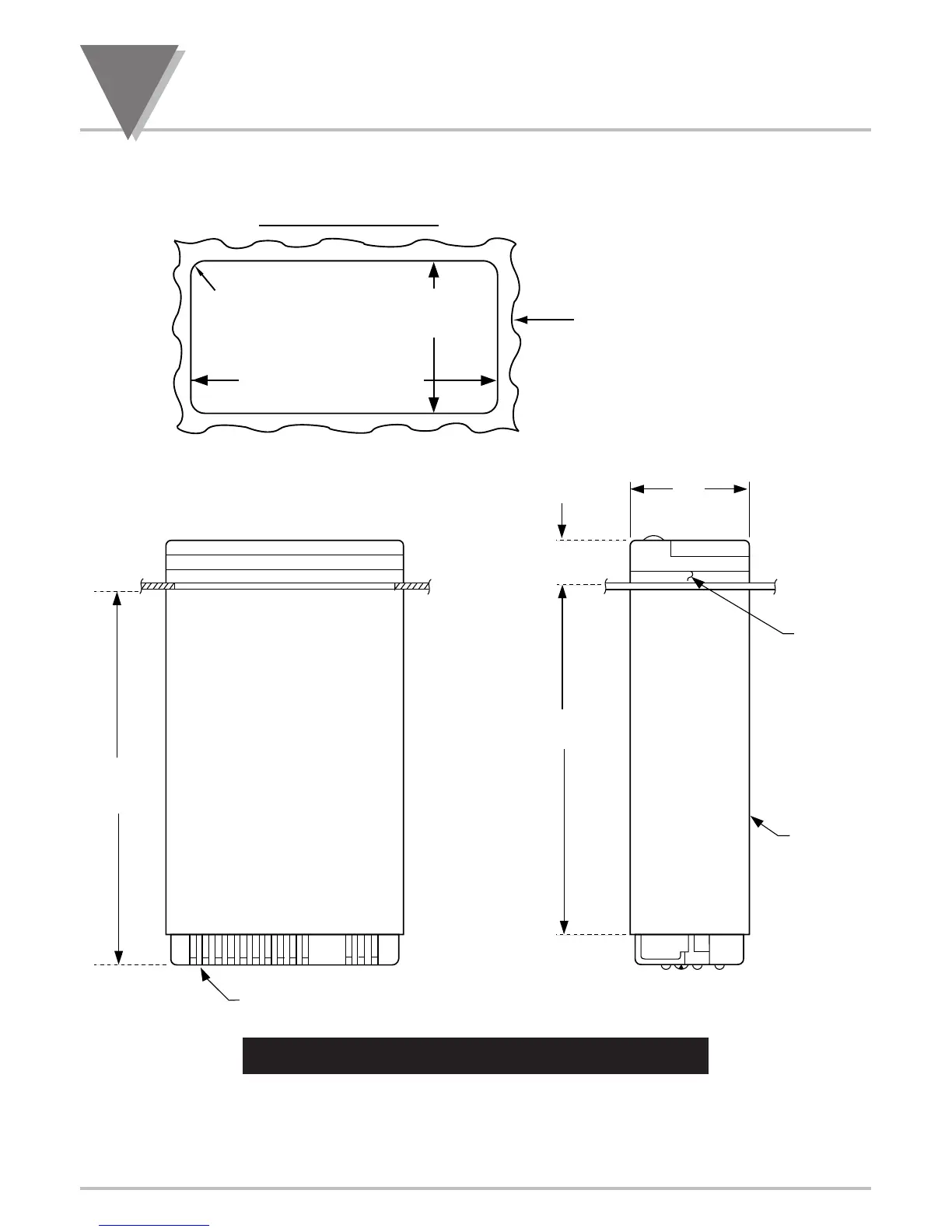

Figure 33-1. Meter Housing and Panel Cutout
SIDE VIEW
SLEEVE
CASE
1.89
(48.0)
.70
(17.8)
5.23
(132.8)
PROTECTIVE COVER
TOP VIEW
5.86
(148.8)
MAX
1.772 +0.024/-.000
[45.00 +0.61/-0.00]
3.622 +0.032/-.000
[92.00 +0.81/-0.00]
PANEL CUTOUT
0.25 [6.4] MAX
0.03 [0.8] MIN
PANEL THICKNESS
0.06
[1.5]
4PLCS
R
