18
Multi-Point Scale and Offset Menu Configuration
66
18 MULTI-POINT SCALE & OFFSET MENU CONFIGURATION: (MP.SC.OF)

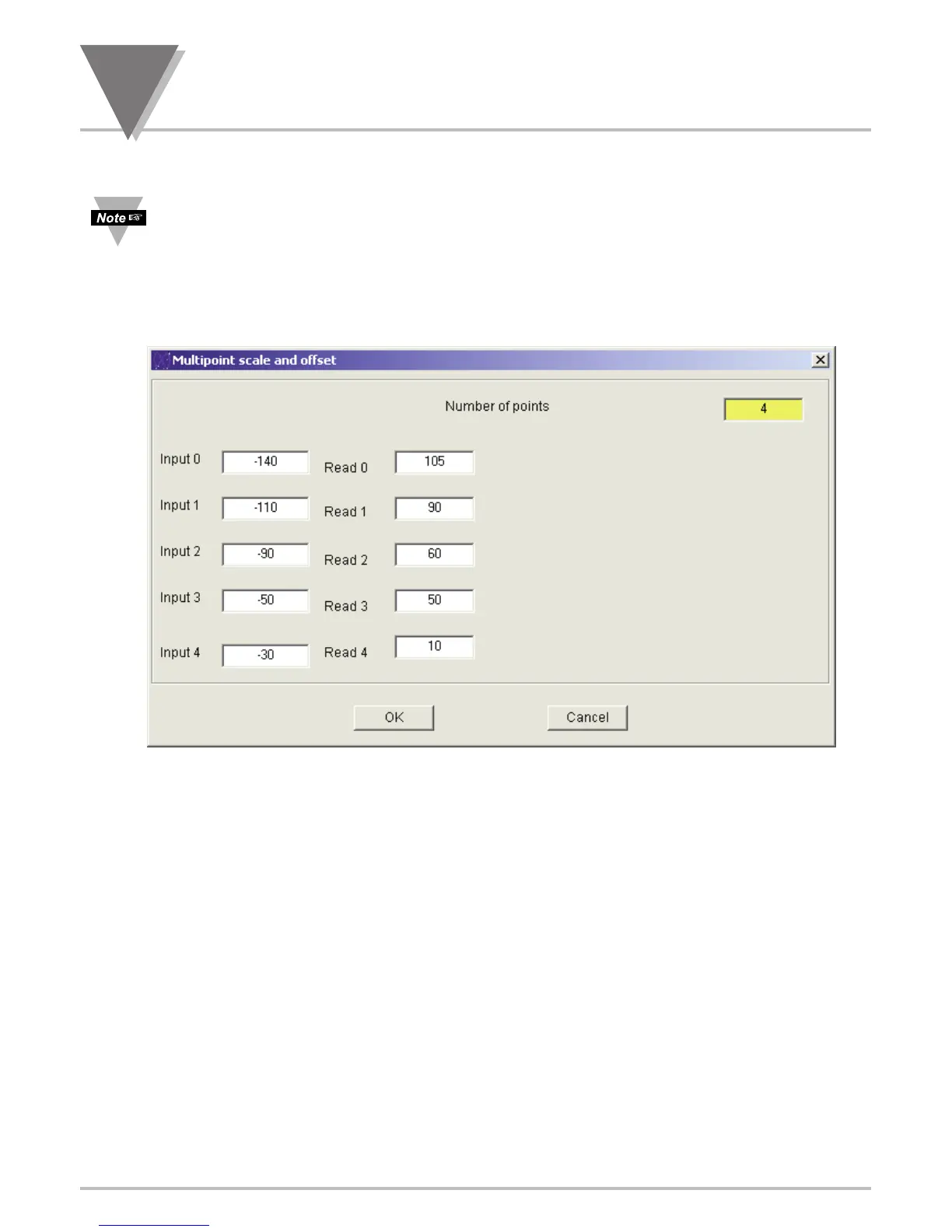

For proper Multipoint Scale & Offset Configuration, user must enter the first Input (Input0) with
least value, then the next one with the greater value and so forth...therefore the last one
(Input4) must be entered with the greatest value in the manner shown in the following
example:
Negative numbers are shown, as a worst case scenario, even though the same rule applies to
positive values and to a sequence of negative values transitioning to positive values.
This scaling method based on 2 Input values entered with 2 corresponding readings. Up to 10
Linearization Points can be selected to customize the transducer curve.
MP.SC.OF Enter MULTI-POINT SCALE & OFFSET MENU:
Press ‘MENU’ 1) Four times or scroll though Main Menu items, select and enter
"MP.SC.OF".
Press ‘RESET/ENTER’ 2)
Display shows "NUM.PNt" Number of Points menu.
Press ‘RESET/ENTER’ 3) Display flashes some 2-digit number or previous setting which
represents the number of Scale & Offset points.
Press ‘䊱/MAX’ 4)
Scroll through "00" to "09" for your choice of Scaling method that allows
users to select up to 10 points for transducer curve‘s linearization
purposes.
Press ‘RESET/ENTER’ 5) Display shows "StOREd" momentarily then advances to "OUt.CNF", if
"00" was selected. Otherwise displays will flash either of the following
2 options: "ON.L INE" or "MANUAL". Select your choice for Scaling
method.
