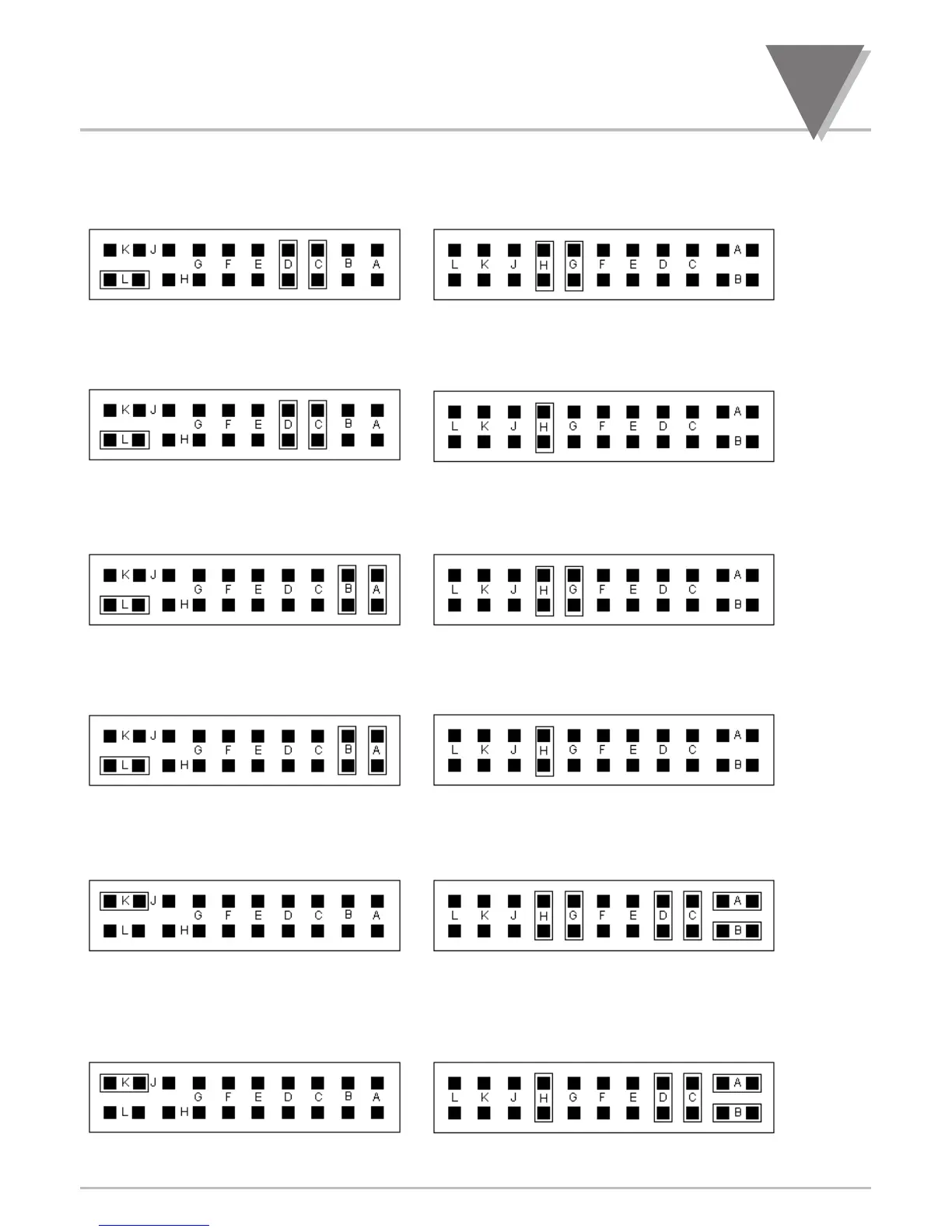

6.5.5 For ± 5V, 0-10V ranges with Internal Excitation:
S1_L/C/D; S2_G/H, jumpers are closed as shown:
S1 S2
6.5.6 For ± 5V, 0-10V ranges with External Excitation:
S1_L/C/D; S2_H, jumpers are closed as shown:
S1 S2
6.5.7 For ± 50V, 0-100V ranges with Internal Excitation:
S1_L/A/B; S2_G/H, jumpers are closed as shown:
S1 S2
6.5.8 For ± 50V, 0-100V ranges with External Excitation:
S1_L/A/B; S2_H, jumpers are closed as shown:
S1 S2
6.5.9 For 0-20mA or 4-20mA range with Internal Excitation:
S1_K; S2_A/B/C/D/G/H, jumpers are closed as shown with Internal Excitation:
S1 S2
6.5.10 For 0-20mA or 4-20mA range with External Excitation:
S1_K; S2_A/B/C/D/H, jumpers are closed as shown with External Excitation:
S1 S2
Jumper Positions
