Omega DP41-B User Manual

73
Output Configuration Menu
20
20.2 Ot.SC.OF Enter OUTPUT SCALE & OFFSET CONFIGURATION SUBMENU:
READING 1
Press ‘RESET/ENTER’ 10) Display shows "REAd 1" Reading 1 menu.
Press ‘RESET/ENTER’ 11) Display flashes 1st digit of previous "REAd 1" value.
Press ‘䊱/MAX’ & ‘
䊳
/MIN’ 12) Enter "REAd 1" value. (Example 000000).
Press ‘RESET/ENTER’ 13) Display advances to "OUt 1" Output 1 menu.
OUTPUT 1
Press ‘RESET/ENTER’ 14)
Display flashes 1st digit of previous "OUt 1" value.
Press ‘䊱/MAX’ & ‘
䊳
/MIN’ 15) Enter "OUt 1" value. (Example 0000.00).
Press ‘RESET/ENTER’ 16) Display advances to "REAd 2" Reading 2 menu.
READING 2
Press ‘RESET/ENTER’ 17) Display flashes 1st digit of previous "REAd 2" value.
Press ‘䊱/MAX’ & ‘
䊳
/MIN’ 18) Enter "REAd 2” value. (Example 999999).
Press ‘RESET/ENTER’ 19) Display advances to "OUt 2" Output 2 menu.
OUTPUT 2
Press ‘RESET/ENTER’ 20)
Display flashes 1st digit of previous "OUt 2" value.
Press ‘䊱/MAX’ & ‘
䊳
/MIN’ 21) Enter "OUt 2" value. (Example 0010.00).
Press ‘RESET/ENTER’ 22) Display Display shows "StOREd" stored message momentarily and
then advances to the "SP CNF" SetPoint Configuration menu.
The above example is for 0-10 V of the entire range of the process input and analog
output. For 0-20mA output you need to set "MOdE" to "CURRNt" DC-Current output and
"OUt 2" to 0020.00.

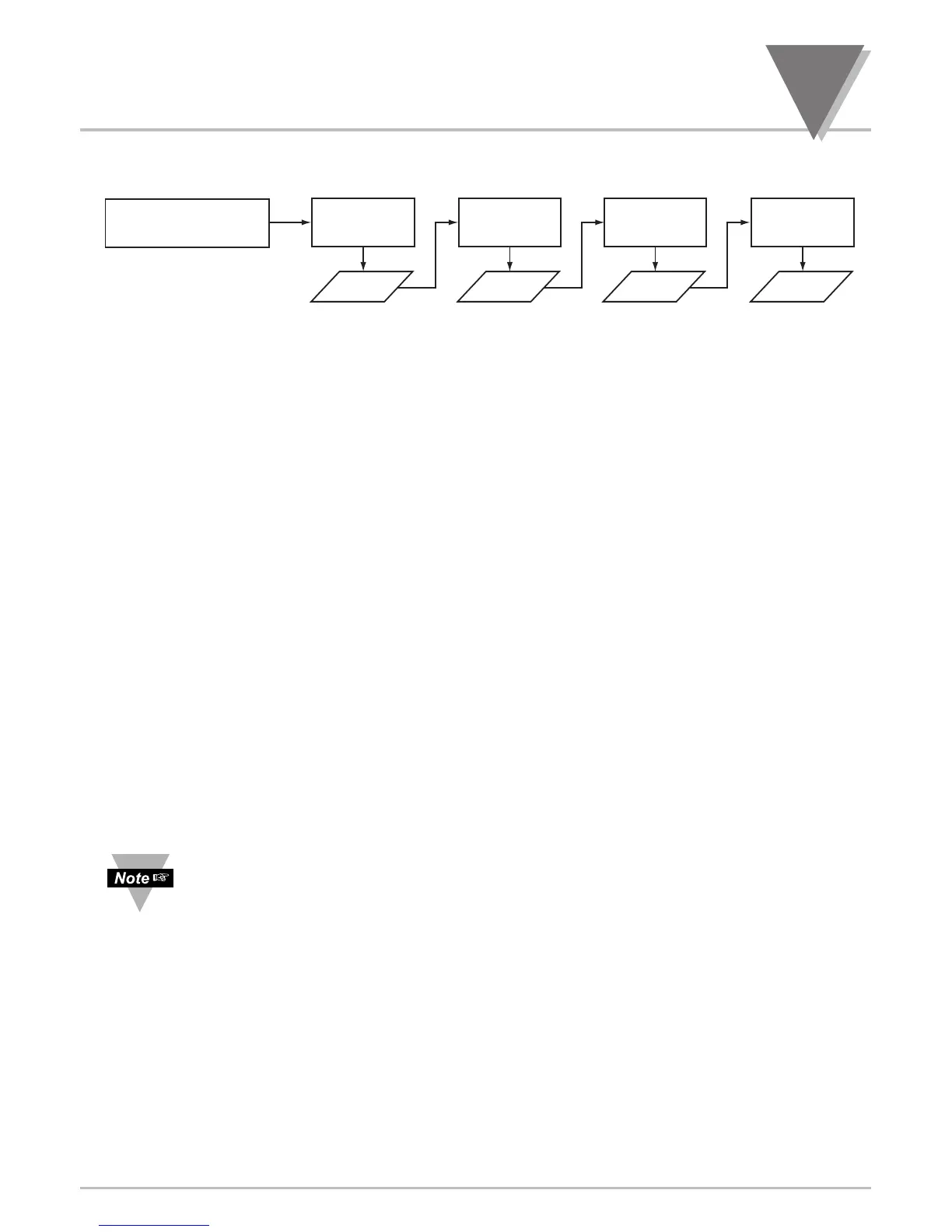

Ot.SC.OF
(Output Scale & Offset)
REAd 1
value
OUt 1
value
REAd 2
value
OUt 2
value
