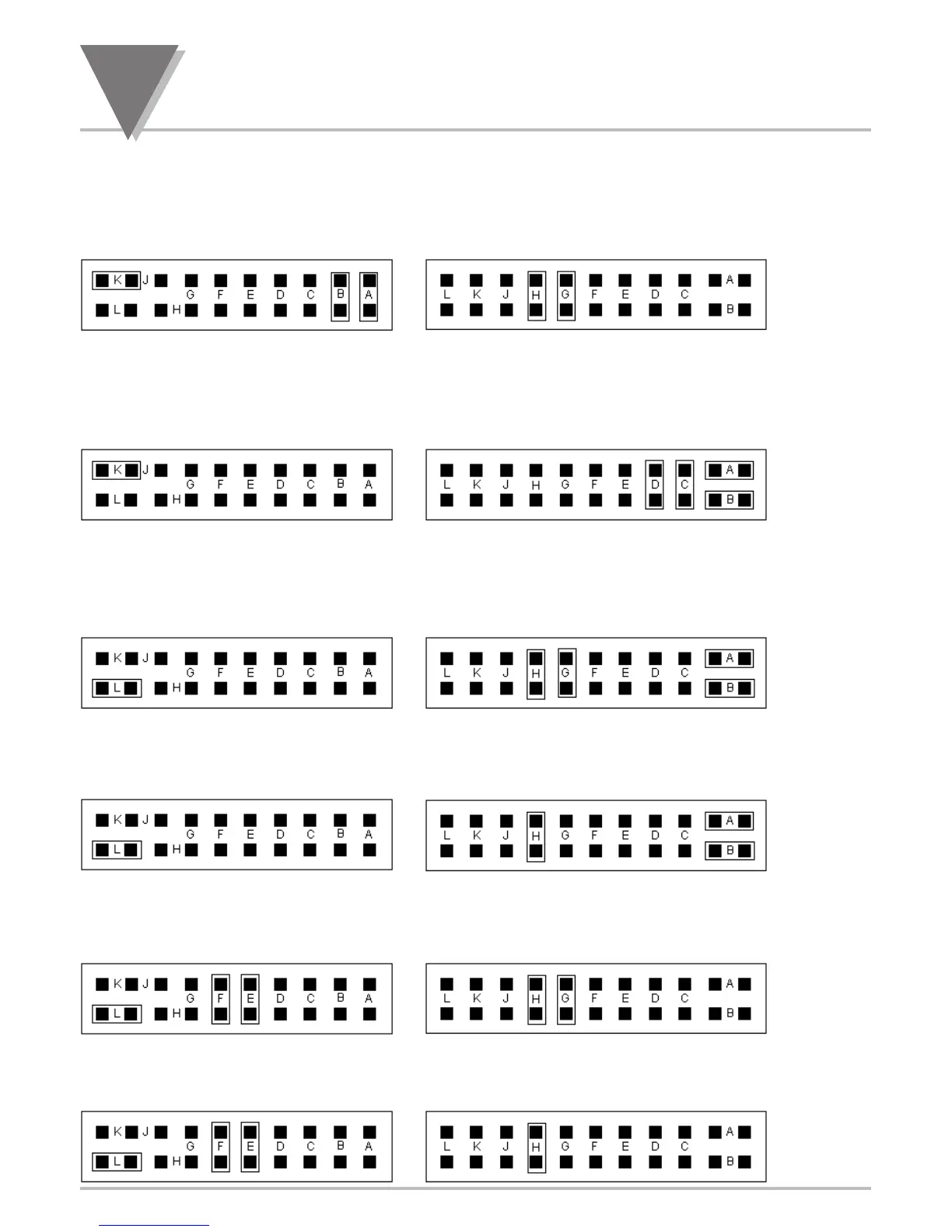

6.3.4 For ± 50V, 0-100V ranges:
S1_K/A/B; SD2_G/H, jumpers are closed as shown:
S1 S2
6.4 CURRENT/PROCESS VALUE Input:
6.4.1 For 0-20mA or 4-20mA range:
S1_K; S2_A/B/C/D, jumpers are closed as shown:
S1 S2
6.5 BRIDGE Input:
6.5.1 For ± 50mV, 0-100mV ranges with Internal Excitation:
S1_L; S2_A/B/G/H, jumpers are closed as shown:
S1 S2
6.5.2 For ±50mV, 0-100mV ranges with External Excitation:
S1_L; S2_A/B/H, jumpers are closed as shown:
S1 S2
6.5.3 For ± 500mV, 1V ranges with Internal Excitation:
S1_L/E/F; S2_G/H, jumpers are closed as shown:
S1 S2
6.5.4 For ± 500mV, 1V ranges with External Excitation:
S1_L/E/F; S2_H, jumpers are closed as shown:
S1 S2
6
Jumper Positions
26
