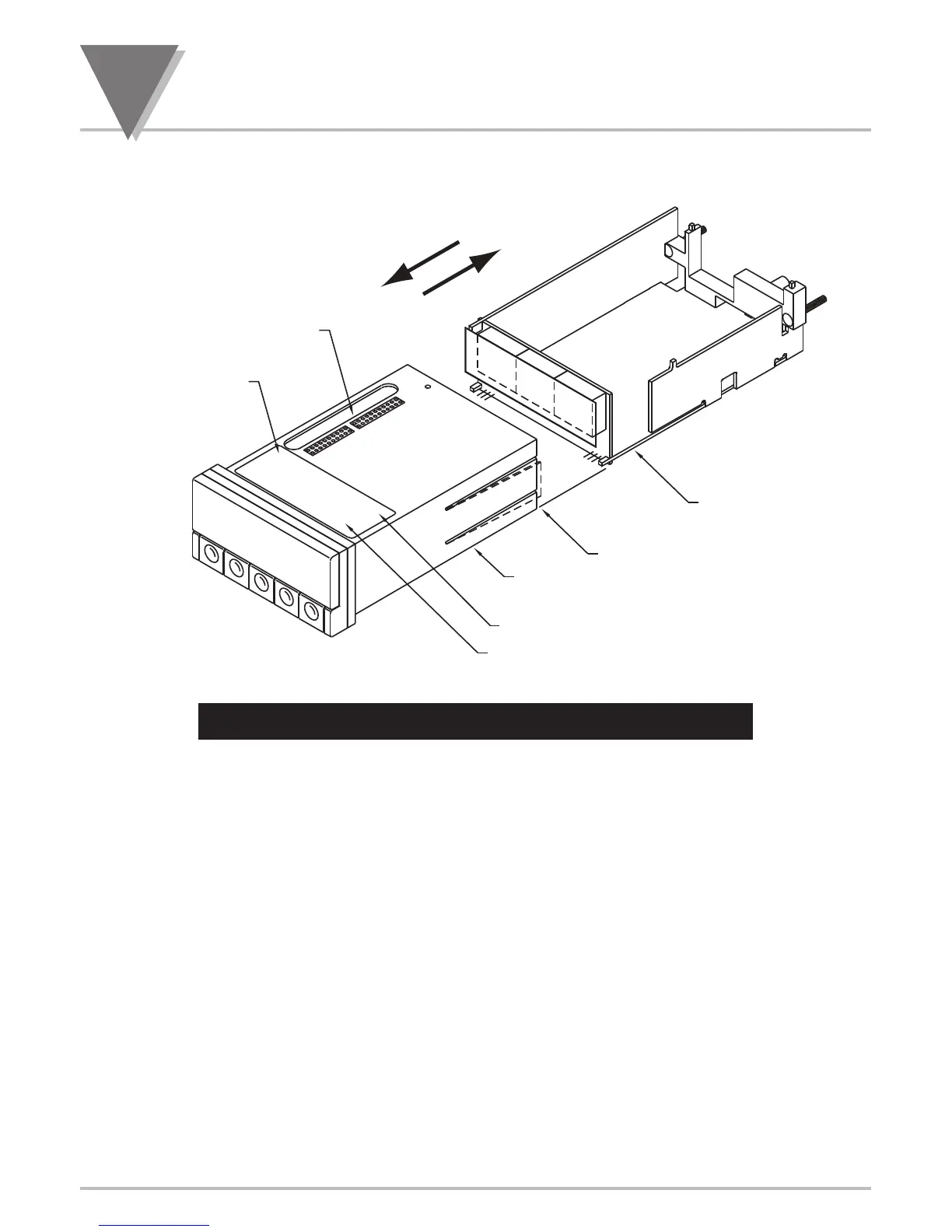

Figure 5-2. Board Assembly Removing/Installing Detail
The meter is now disassembled to the point where you can check and configure jumpers and install
option boards.
REINSERTING THE MAIN BOARD ASSEMBLY INTO THE CASE
Reinsert the Main Board into the case once jumpers and optional boards have been configured and
installed.
Spread the side-panel detents of the case, see Figure 5-2, and carefully slide the main board all the
way in.
MAIN BOARD ASSY
BEND DETENTS OUTWARD
TO INSTALL/REMOVE MAIN BOARD
CASE
SIGNAL INPUT
JUMPER LABEL
PRODUCT IDENTIFICATION LABEL
TO INSTALL
TO REMOVE
ETHERNET (OPTIONAL) VERSION #
MICRO-PROCESSOR
VERSION #
-XX
-XX
