Omega DP41-B User Manual

71
Output Configuration Menu
20

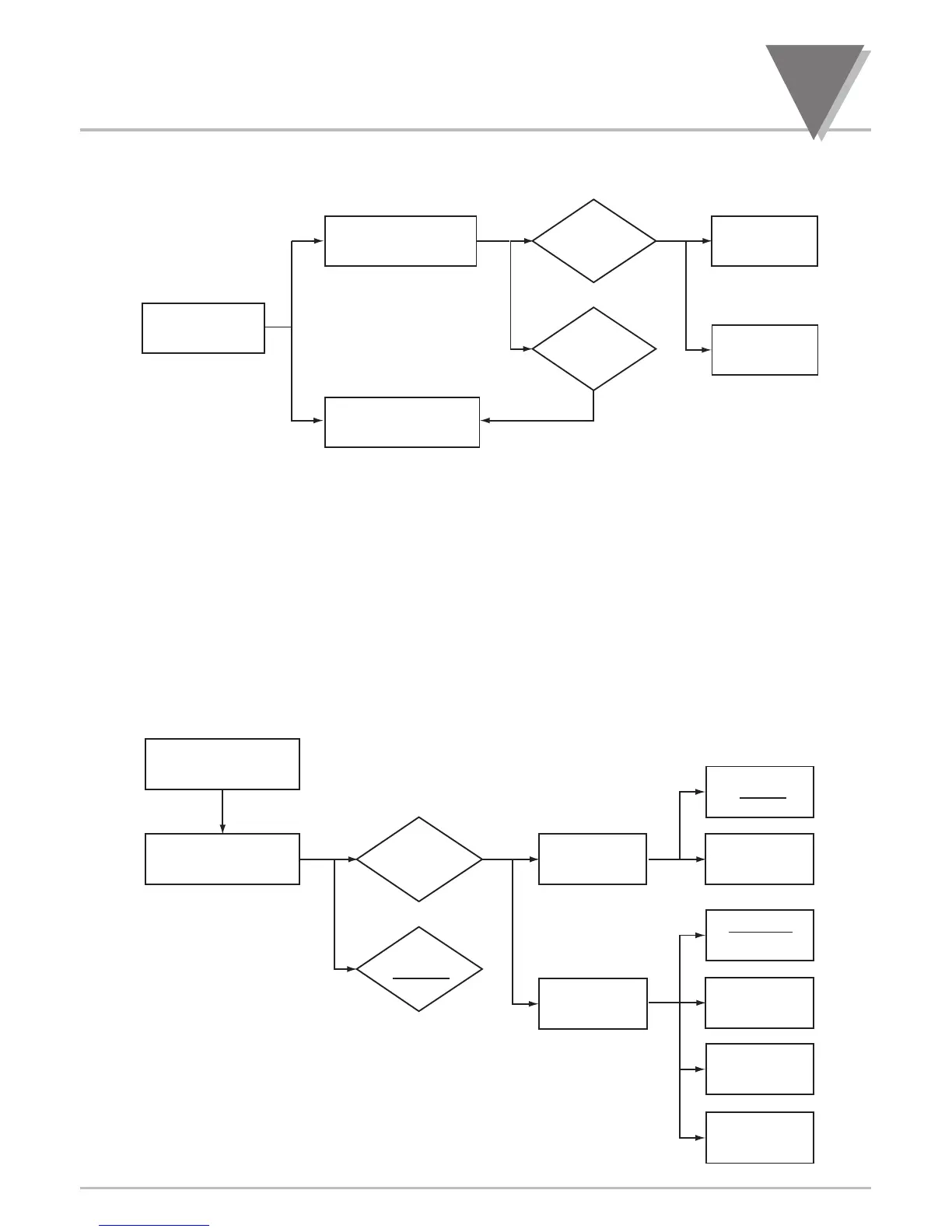

20 OUTPUT CONFIGURATION MENU: (OUt.CNF)
OUt.CNF Enter OUTPUT CONFIGURATION MENU:
Press ‘MENU’ 1) 5 times or scroll though main Menu until Display shows "OUt.CNF"
Output Configuration Menu.
20.1 ANA.OUt
Press ‘RESET/ENTER’ 2) Display shows "ANA.OUt" Analog Output Configuration submenu.
Press ‘RESET/ENTER’ 3)
Display flashes "dISAbL" (Default) or previous setting option.
Press ‘䊱/MAX’ 4) Select "ENAbLE" to setup Analog Output if your controller is equipped
with the optional Analog Output board.
ANA.OUt
(Analog Output)
OUt.CNF
ENAbLE
MOdE
dISAbL
OUt.tyP
(Output Type)
CURRNt
VOLt
FILtRd
(Filtered)
UNFILt
(Unfiltered)
PEAk
VALLy
OUt.CNF
ANA.OUt
(Analog Output)
Ot.SC.OF
(Output Scale & Offset)
ENAbLE
MOdE
dISAbL
OUt.tyP
(Output Type)
