Wiring CP1L CPU Units Section 3-4
3-4 Wiring CP1L CPU Units
Note (1) Do not remove the protective label from the top of the Unit until wiring has
been completed. This label prevents wire strands and other foreign mat-
ter from entering the Unit during wiring procedures.
(2) Remove the label after the completion of wiring to ensure proper heat dis-
sipation.

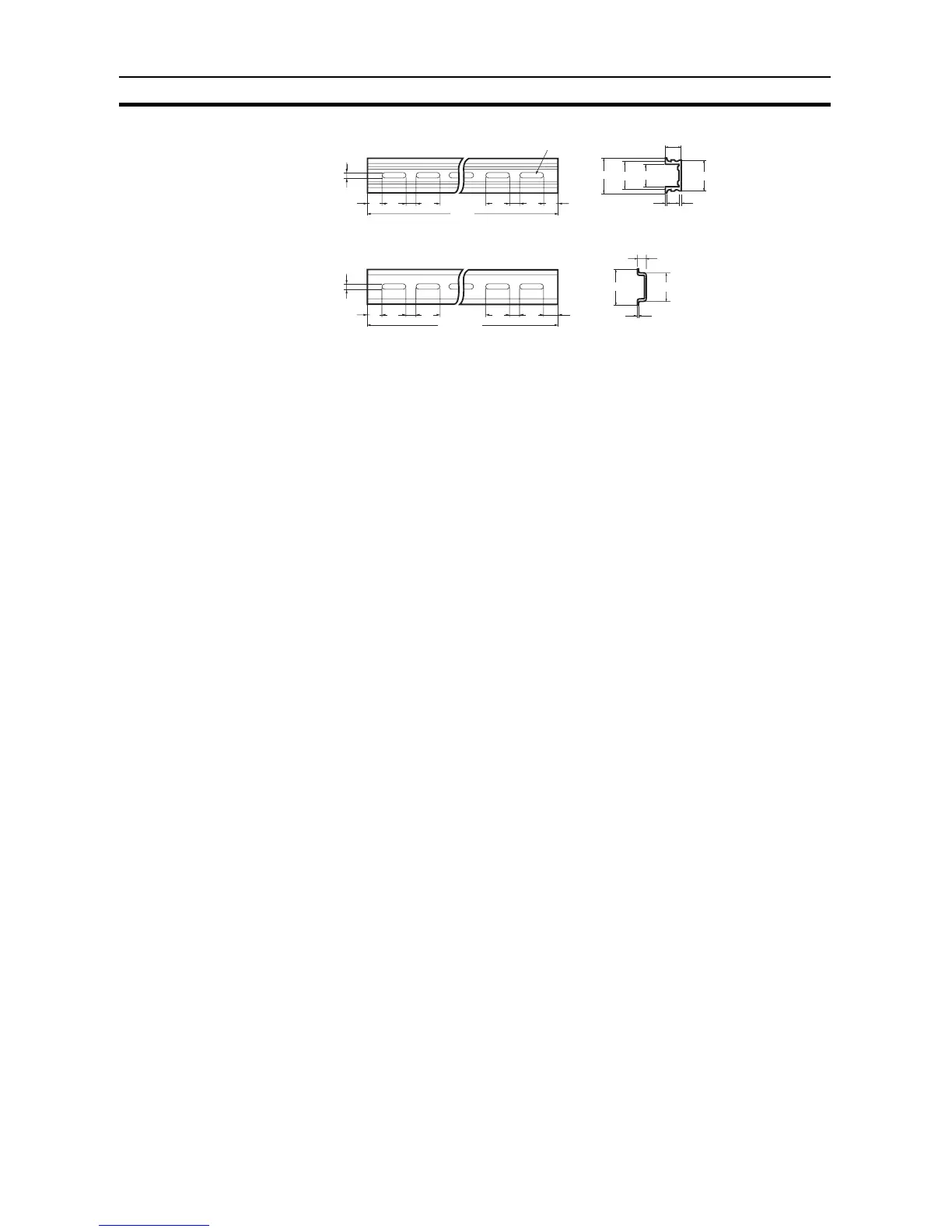

15
10
4.5
25
25
25
10
25
15
1000
1000 (500)
(See note.)
PFP-100N2
PFP-100N/50N
15
10
4.5
25 25
25
10
25 15 (5)
(See note.)
1
16
1.51
29.2
24
27
30 ±0.3
7.3 ±0.15
35 ±0.3 27 ±0.15
28.25 × 4.5 oblong holes
Note: PFP-50N dimensions are given in parentheses.

Omron CP1L Specifications

General

Model	CP1L
Data Memory Capacity	32K words
Program Capacity	10K steps
Communication Ports	USB, RS-232C
Expansion	I/O
Pulse Output	100 kHz
Built-in I/O	Digital I/O
Expansion Slots	Supports up to 3 expansion units
Operating Voltage	100-240 VAC or 24 VDC (varies by model)
Operating Temperature	55 degrees Celsius
Storage Temperature	75 degrees Celsius
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
Shock Resistance	147 m/s^2, 3 times in X, Y, and Z directions
