Omron CP1L - Input Interrupts (Direct Mode)

342
Interrupt Functions Section 6-1
Prevention of Duplicate Processing
6-1-2 Input Interrupts (Direct Mode)
This function executes an interrupt task when the corresponding input signal
(up or down differentiated) is received.
Input Interrupt Bit and
Terminal Allocations

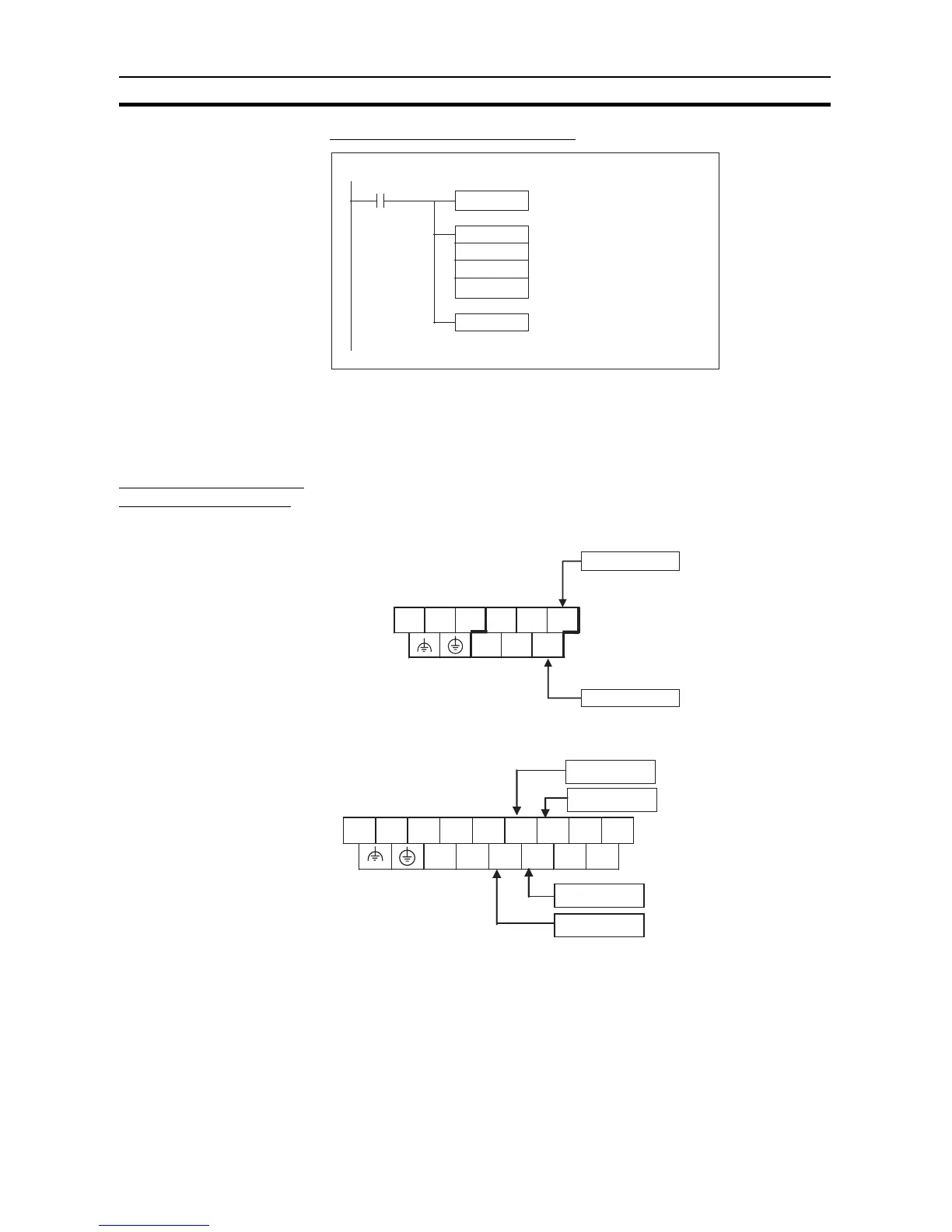

The following diagrams show the input bits and terminals that are used for the
input interrupt function in each CPU Unit.
Input Terminal Block of
CPU Units with 10 I/O
Points
The 2 input bits CIO 0.04 to CIO 0.05 can be used for input interrupts.
Input Terminal Block of
CPU Units with 14 I/O
Points
The 4 input bits CIO 0.04 to CIO 0.07 can be used for input interrupts.
BSET
#1234
D0
D10
DI
EI
Cyclic task
Disables execution of
interrupt programs.
Enables execution of
interrupt programs.
Upper Terminal Block
(Example: AC Power
Supply Modules)
Input interrupt 1
Inputs(CIO 0)
L2/NL1 COM 01 03 05
00 02 04
Input interrupt 0
L1 L2/N COM 01 03 05 07 NC NC
00 02 04 06 NC NC
Inputs (CIO 0)
Input interrupt 3
Input interrupt 1
Upper Terminal Block
(Example: CPU Unit
with AC Power Supply)
Input interrupt 2
Input interrupt 0
