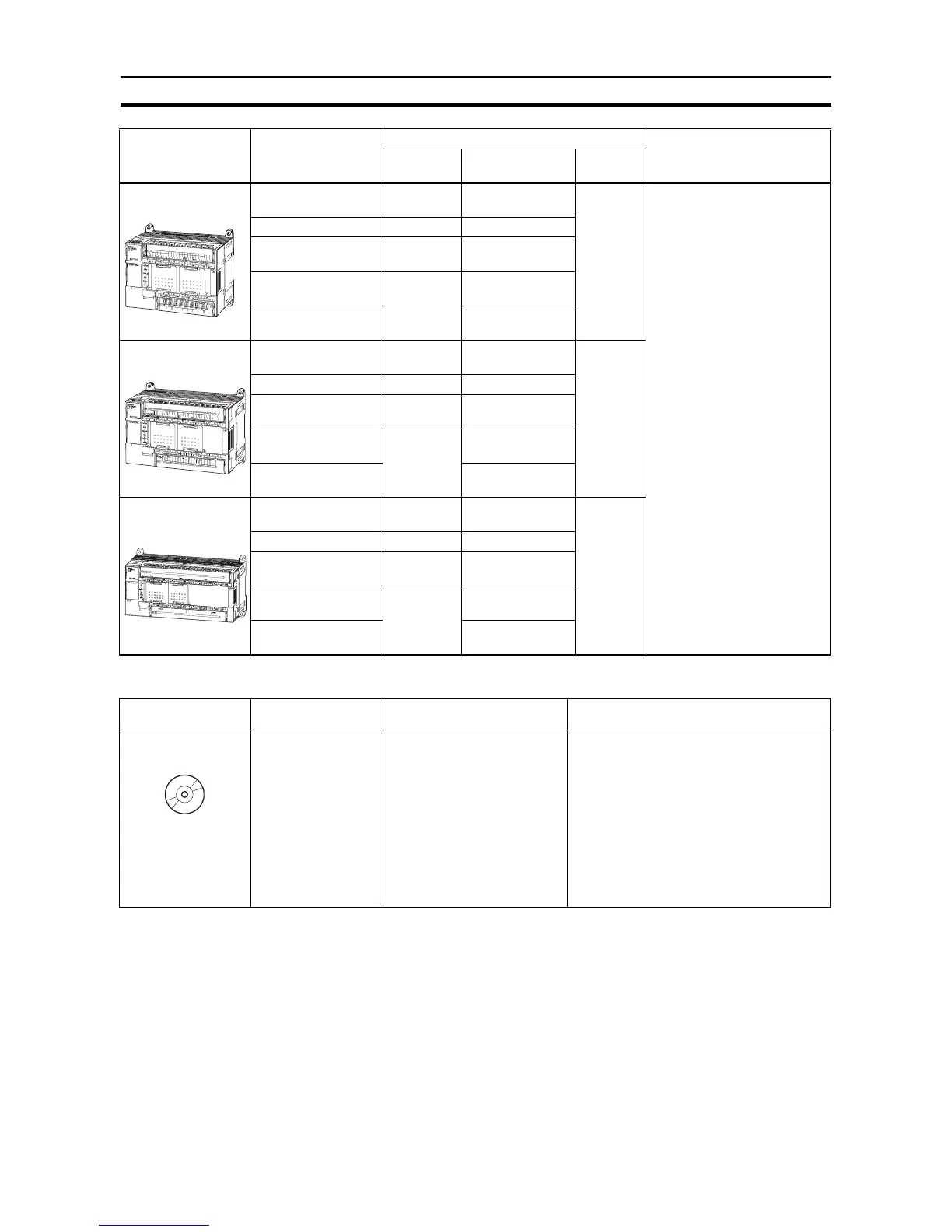

Standard Models Appendix A
Programming Devices
CPU Units with 30
I/O Points
CP1L-M30DR-A 100 to
240 VAC
12 relay outputs 24 VDC
18 inputs
Memory capacity: 10 Ksteps
High-speed counters:
100 kHz, 4 counters
Pulse outputs:
2 axes at 100 kHz
CP1L-M30DR-D 24 VDC 12 relay outputs
CP1L-M30DT-A 100 to
240 VAC
12 transistor out-
puts, sinking
CP1L-M30DT-D 24 VDC 12 transistor out-
puts, sinking
CP1L-M30DT1-D 12 transistor out-
puts, sourcing
CPU Units with 40
I/O Points
CP1L-M40DR-A 100 to
240 VAC
16 relay outputs 24 VDC
24 inputs
CP1L-M40DR-D 24 VDC 16 relay outputs
CP1L-M40DT-A 100 to
240 VAC
16 transistor out-
puts, sinking
CP1L-M40DT-D 24 VDC 16 transistor out-
puts, sinking
CP1L-M40DT1-D 16 transistor out-
puts, sourcing
CPU Units with 60
I/O Points
CP1L-M60DR-A 100 to
240 VAC
24 relay outputs 24 VDC
36 inputs
CP1L-M60DR-D 24 VDC 24 relay outputs
CP1L-M60DT-A 100 to
240 VAC
24 transistor out-
puts, sinking
CP1L-M60DT-D 24 VDC 24 transistor out-
puts, sinking
CP1L-M60DT1-D 24 transistor out-
puts, sourcing
Name and
appearance
Model Application Remarks
CX-Programmer
Ver. 7.1
WS02-CXPC1-E-
V71
Programming and monitoring
from a Windows environment
• The CP1L L or M model with 14, 20, 30, 40
or 60 points is supported by CX-Program-
mer version 7.1 or higher.
• The CP1L J model is supported by CX-
Programmer Version 7.22 or higher.
• The CP1L with 10 points is supported by
CX-Programmer version 7.3 or higher.
• Use an off-the-shelf USB cable to connect
the computer running the CX-Program-
mer to the USB port on the CP1L CPU
Unit.
Name and
appearance
Model Specifications Remarks
Power
supply
Outputs Inputs
