CP1L CPU Unit Operation Section 2-3
2-3 CP1L CPU Unit Operation
2-3-1 Overview of CPU Unit Configuration

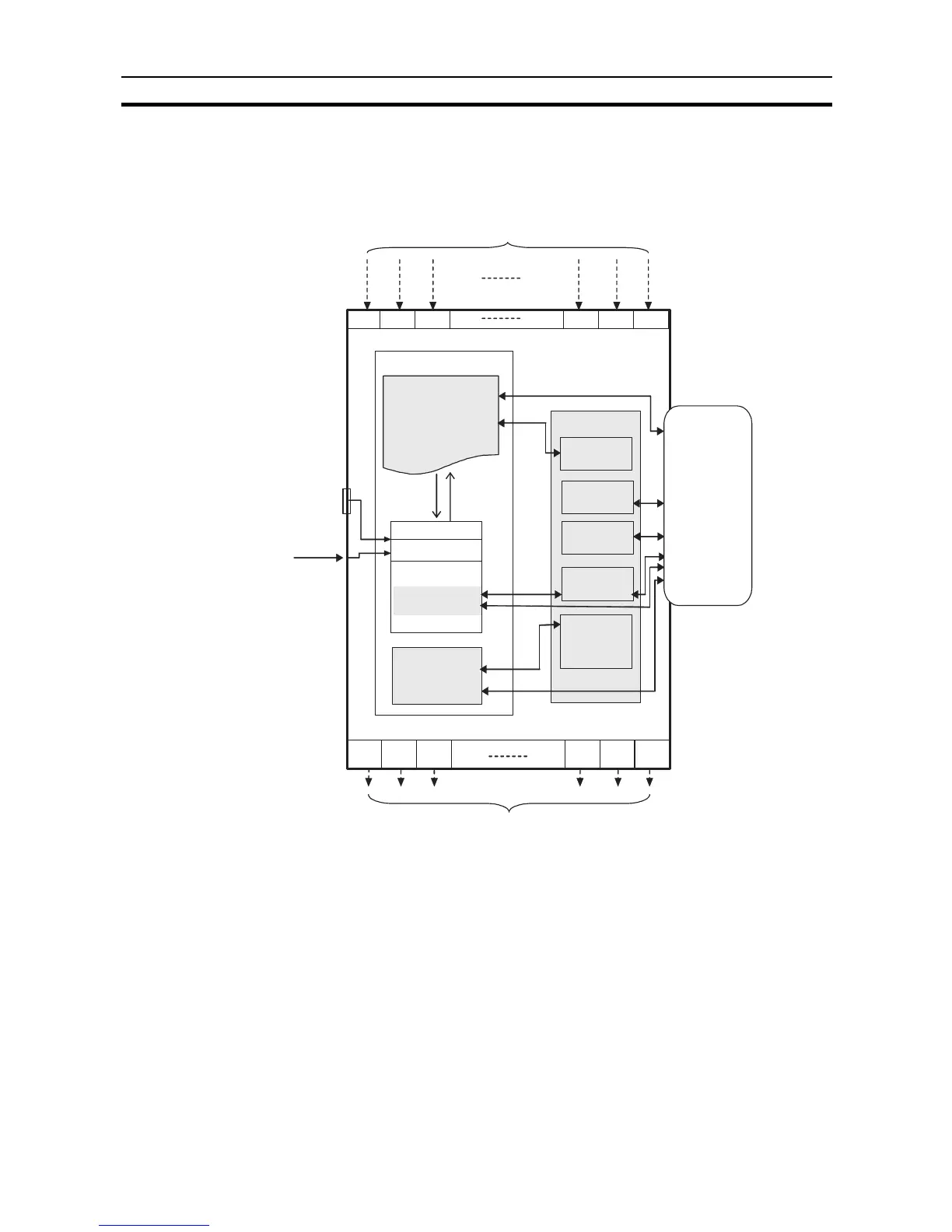

The CP1L CPU Unit memory consists of the following blocks.
(1) • Data is backed up from RAM to the built-in flash memory when
changes are made, e.g., from the CX-Programmer.
• When the power supply is turned ON, data is transferred from the built-
in flash memory to RAM.
(2) • A CX-Programmer operation can be used to transfer DM Area initial
values from RAM to the built-in flash memory.
• The PLC Setup can be set so that DM Area initial values are trans-
ferred from the built-in flash memory to RAM when the power supply
is turned ON.
(3) • CX-Programmer operations can be used to transfer data from RAM to
the Memory Cassette or from the built-in flash memory to the Memory
Cassette.
RAM
DM Area
(2)
(3)
(1)
(1)
(3)
(3)
(3)
(3)
(3)
Built-in inputs
CPU Unit
User program
I/O memory
AR Area
PLC Setup
and other
parameters
Flash memory
User
program
Comment
memory
FB program
memory
DM Area
initial values
PLC Setup
and other
parameters
Memory
Cassette
Analog adjuster
External analog
setting input
Built-in out
p
uts
Access
