Omron CP1L - I;O Wiring for CPU Units with 14 I;O Points

124
Wiring CPU Unit I/O Section 3-5

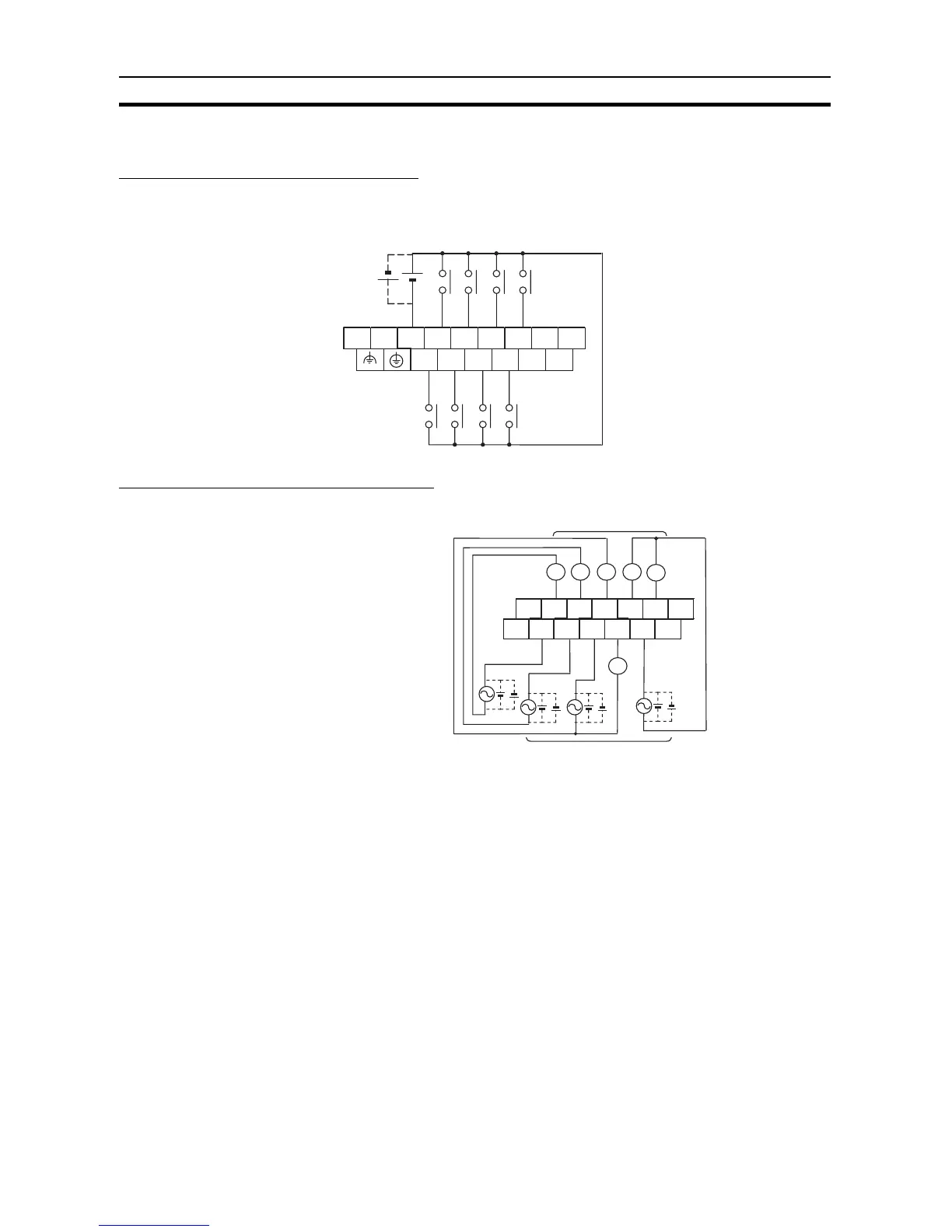

3-5-5 I/O Wiring for CPU Units with 14 I/O Points
Input Wiring (Upper Terminal Block)
The input circuits have 8 points/common. Use power lines with sufficient cur-
rent capacity for the COM terminals.
Output Wiring (Lower Terminal Block)
Relay Outputs
(CP1L-L14DR-A, CP1L-
L14DR-D, CP1L-J14DR-A
and CP1L-J14DR-D)
AC-power-supply models have a 24-VDC output terminals (+/−) on the lower
terminal block. They can be used as a DC power supply for the input circuit.
24 VDC
CIO 0
CIO 0
L1 L2/N
COM
01
00
03
05
04
07
06
NC
NC
NC
NC
02
CIO 100
L L L L
L
L
+ 00 01 02 04 05 NC
- COM COM COM 03 COM NC
CIO 100
