LCD Option Board Function Section 8-6
8-6-17 LCD Contrast Setting
This function can make a setting for the LCD contrast.

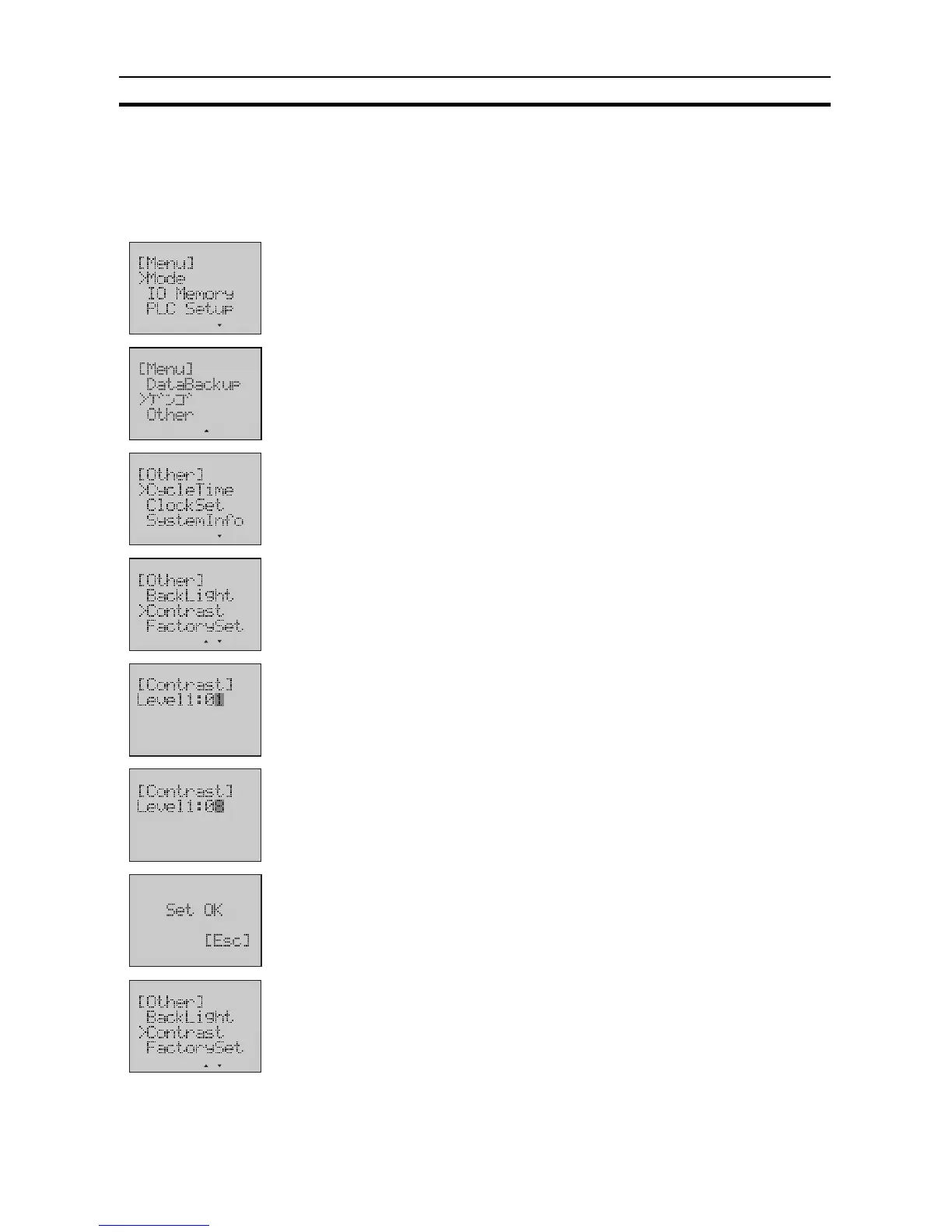

Example Change the contrast of LCD display to 8.
1,2,3...
1. Switch to the Setup Mode.
2. Press the Down button to select
Other .
3. Press the OK button to enter the Other menu.
4. Press the Down button to select
Contrast .
5. Press the OK button to enter the Contrast Screen.
The contrast level of LCD display is 1 to 16.
6. Use the Up button to change the level to
08 .
7. Press the OK button to save the setting.
8. Press the ESC or OK button to return to the previous menu.
