350
Interrupt Functions Section 6-1

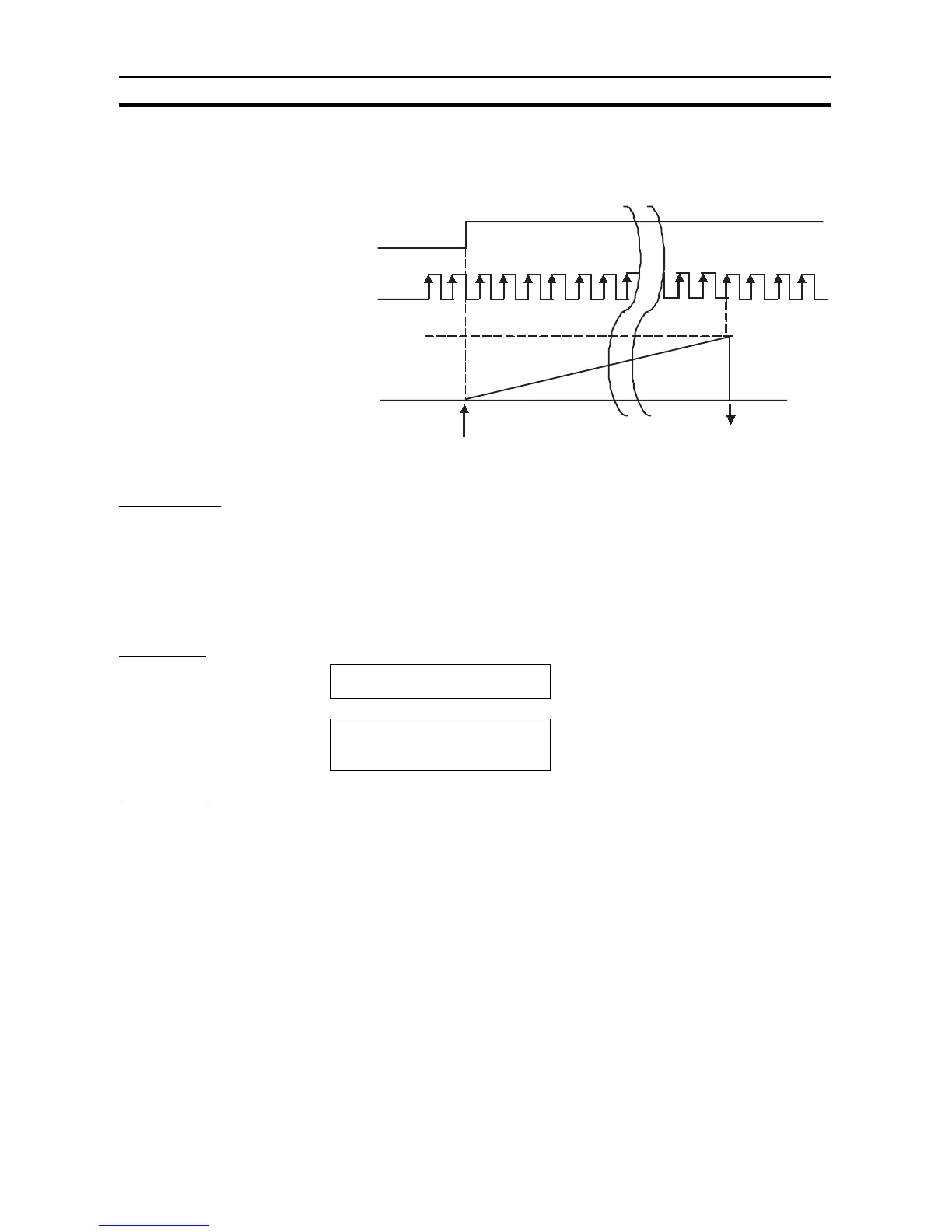

When CIO 0.05 goes from OFF to ON 200 times, processing of the cyclic task
that is currently being executed will be interrupted and processing of interrupt
task 141 will start. When the interrupt task processing is completed, process-
ing of the interrupted ladder program will restart.
Restrictions Inputs cannot be used for input interrupts when they are being used as gen-
eral-purpose (normal) inputs or quick-response inputs.
6-1-4 Scheduled Interrupts
This function executes an interrupt task at a fixed time interval measured by
the CPU Unit’s built-in timer. Interrupt task 2 is allocated to scheduled inter-
rupt.
Procedure
PLC Setup Click the Timings Tab and set the input function to
Scheduled Interrupt Inter-
val
(the scheduled interrupt timer’s units). The timing units can be set to 10
ms, 1 ms, or 0.1 ms. The scheduled interrupt timer SV is calculated by multi-
plying this interval setting by the timer SV set with MSKS(690).
W0.00
0
0.05
Counter SV (in A533)
= 200 (00C8 hex)
Counting enabled.
Counter PV (in A537)
Interrupt task 141
executed.
Set the PLC Setup.
• Use the CX-Programmer to set the scheduled
interrupt timer units in the PLC Setup.
↓
Write the ladder program.
• Write the program allocated to interrupt task
2 (scheduled interrupt task).
• Use MSKS(690) to specify the timer SV.
To Next Page
