Features and Main Functions Section 1-1

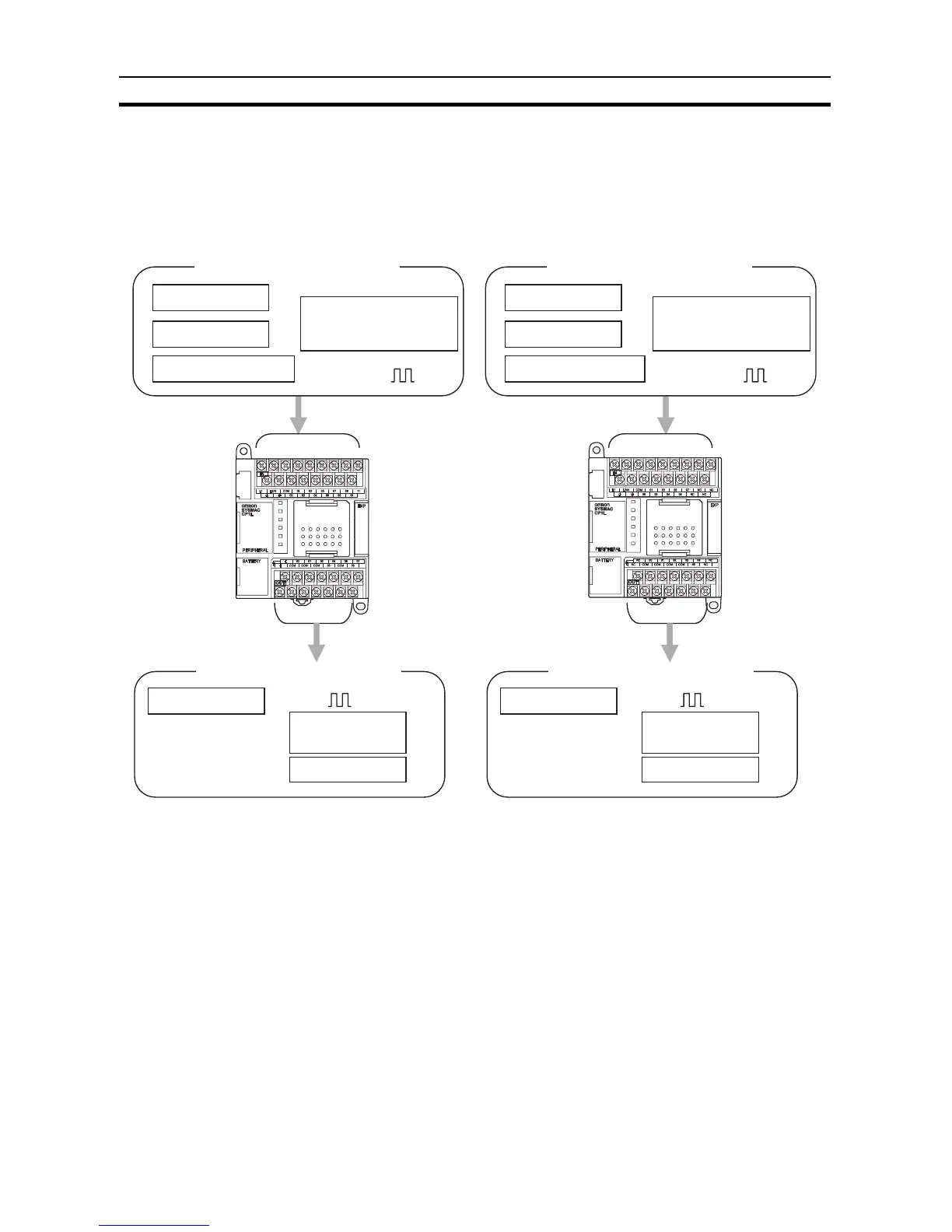

CPU Units with 20 I/O Points: CP1L-L20D@-@ and
CP1L-J20D@-@
CPU Units with 14 I/O Points: CP1L-L14D@-@ and
CP1L-J14D@-@
• The CPU Unit has 12 inputs and 8 outputs built in. • The CPU Unit has 8 inputs and 6 outputs built in.
• The PLC can be expanded to a maximum total of
60 I/O points by using CP-series Expansion I/O
Units.
• The PLC can be expanded to a maximum total of
54 I/O points by using CP-series Expansion I/O
Units.
12 built-in inputs (Functions
can be assigned.) (See note.)
Normal inputs (12)
Interrupt inputs (6)
Quick-response inputs (6)
High-speed counter
(4 counters/2 axes)
100 kHz (single phase) CP1L-L
20 kHz (single phase) CP1L-J
8 built-in outputs (Functions
can be assigned.) (See note.)
Normal outputs (8)
2 pulse outputs
100 kHz (
CP1L-L)
20 kHz (CP1L-J)
2 PWM outputs
8 built-in inputs (Functions can
be assigned.) (See note.)
Normal inputs (8)
Interrupt inputs (4)
Quick-response inputs (4)
12 built-in outputs (Functions
can be assigned.) (See note.)
Normal outputs (6)
2 PWM outputs
CPU Units with transistor outputs only. CPU Units with transistor outputs only.
High-speed counter
(4 counters/2 axes)
100 kHz (single phase) CP1L-L
20 kHz (single phase) CP1L-J
2 pulse outputs
100 kHz (
CP1L-L)
20 kHz (CP1L-J)
