Omron CP1L - Connecting Expansion Units and Expansion I;O Units; Mounting Height

106
Mounting Section 3-3
Mounting Height The mounting height is approximately 90 mm.
When a cable is connected to an Option Board, however, the additional height
must be factored in. Always allow for the additional height when considering
the depth of the control panel in which the PLC is to be mounted.

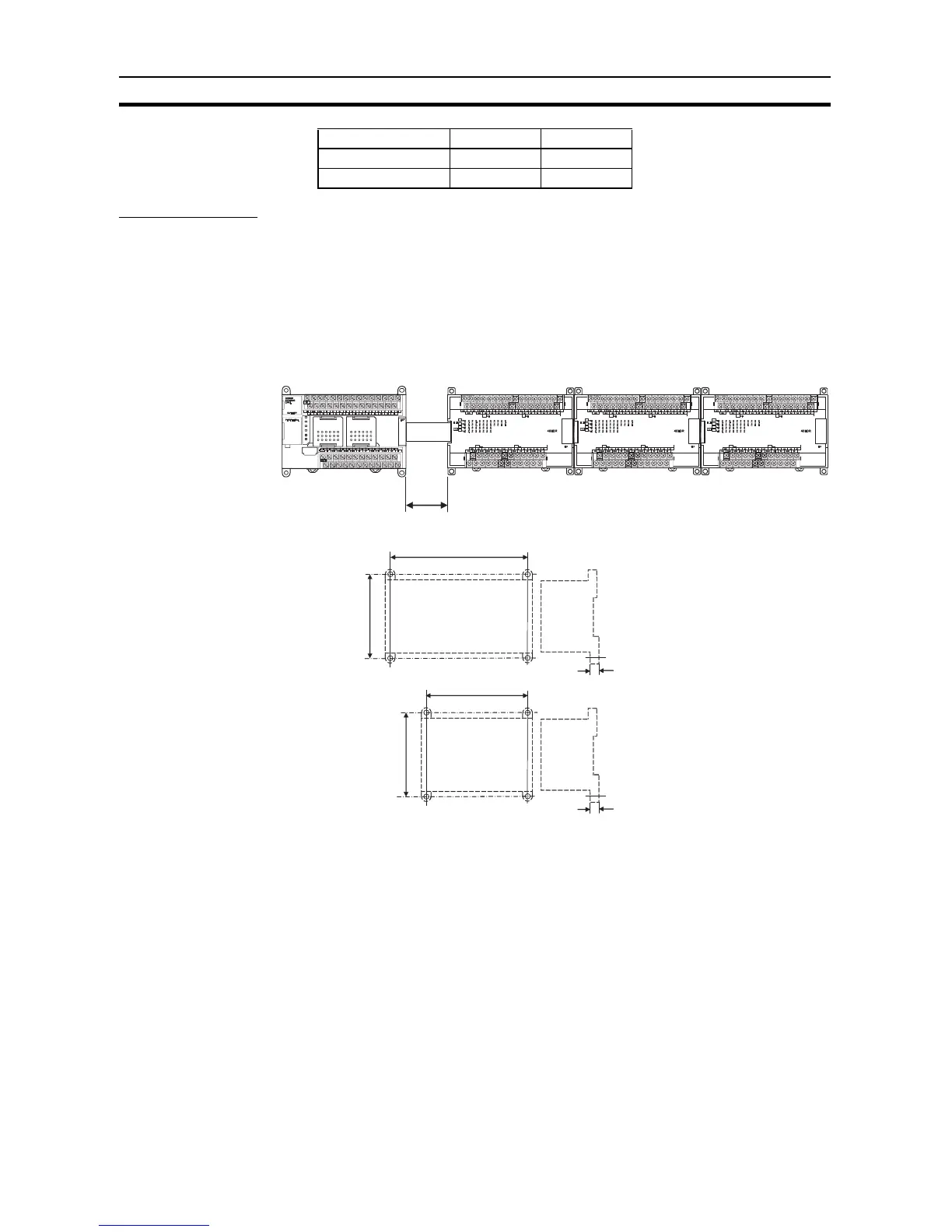

3-3-2 Connecting Expansion Units and Expansion I/O Units
Leave approximately 10 mm of space between the CPU Unit and the Expan-
sion Units or Expansion I/O Units.
Mounting Method
CP1L-L14D@-@ 86 76
CP1L-L10D@-@ 66 56
Model W1 W2
10 mm
CP1L CPU Unit
Expansion I/O Units or Expansion Units
100 mm
A
A
CP1L CPU Unit
with 30, 40 or 60 I/O
points
Expansion I/O Unit
with 32 or 40 I/O points
8 mm
100 mm
CP1L CPU Unit
with 10, 14 or 20 I/O
points
Expansion I/O Unit
with 8, 16 or 20 I/O points
Expansion Unit
8 mm
