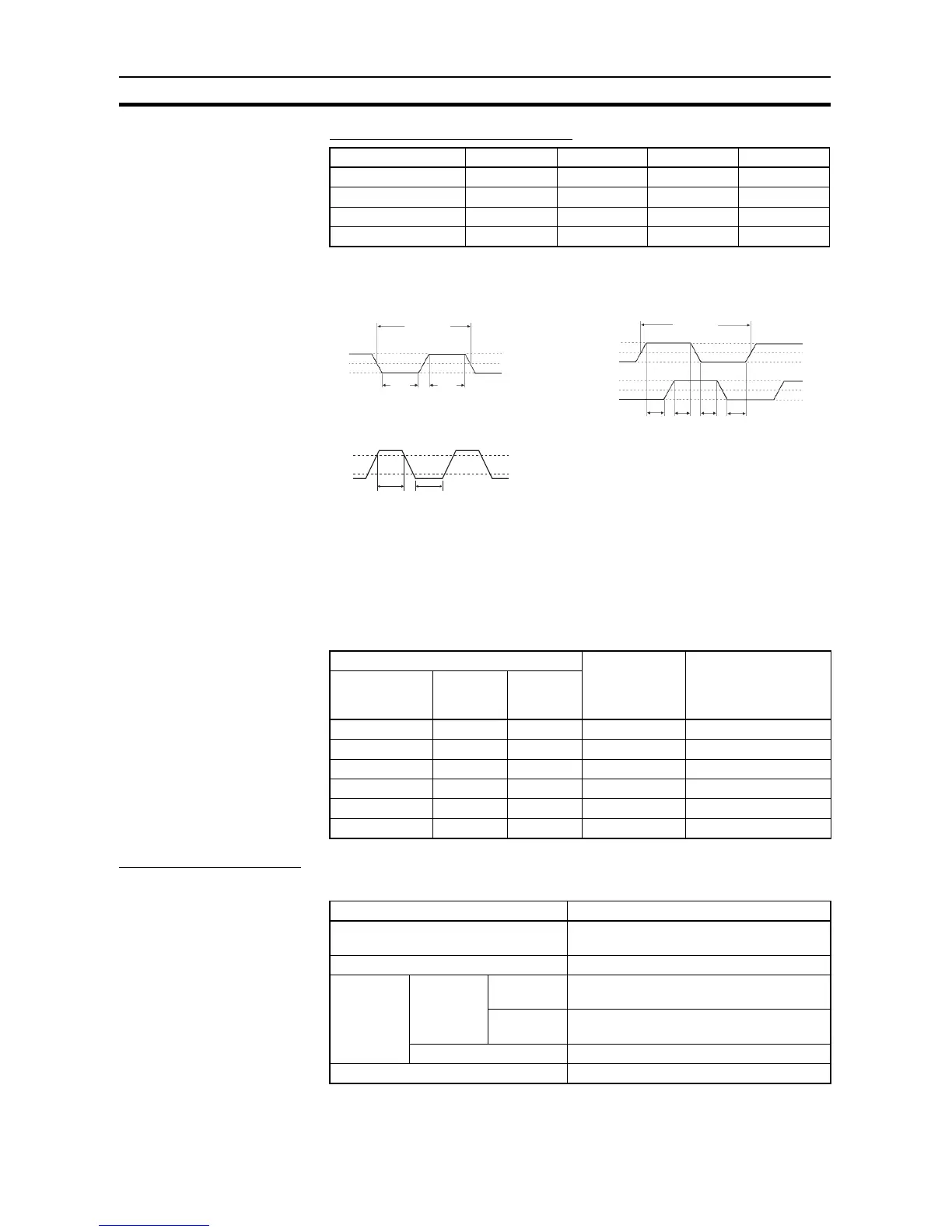

Input Bits for High-speed Counters
Interrupt Inputs and
Quick-response Inputs
With CPU Units with 20, 30, 40 or 60 I/O points, the six input bits from CIO
0.04 to CIO 0.09 can be used as either normal inputs or as interrupt or quick-
response inputs depending on the settings in the PLC Setup. With CPU Units
with 14 I/O points, the four input bits from CIO 0.04 to CIO 0.07 can be used
as either normal inputs or as interrupt or quick-response inputs. With CPU
Units with 10 I/O points, the two input bits from CIO 0.04 to CIO 0.05 can be
used as either normal inputs or as interrupt or quick-response inputs.
Output Specifications
Relay Outputs
Counter Single phase Phase A Phase B Phase Z
High-speed counter 0 CIO 0.00 CIO 0.00 CIO 0.01 CIO 0.04
High-speed counter 1 CIO 0.01 CIO 0.02 CIO 0.03 CIO 0.05
High-speed counter 2 CIO 0.02 --- --- ---
High-speed counter 3 CIO 0.03 --- --- ---
90%
10%
50 µs
min.
50 µs
min.
ON
OFF
ON
OFF
ON
OFF
ON
OFF
T
1
T
2
T
3
T
4
T
1
, T
2
, T
3
, T
4
: 2.5 µs min.
90%
50%
10%
90%
50%
10%
90%
50%
10%
2.5 µs
min.
2.5 µs
min.
20.0 µs min.
10.0 µs min.
Up/down input mode
Differential phase mode
Input bits: CIO 0.04 to CIO 0.09
Pulse plus direction input mode,
Increment mode
Input bit Interrupt
inputs
Quick-response
inputs
CPU Units with
20, 30, 40 or
60 I/O points
CPU Units
with 14 I/O
points
CPU Units
with 10 I/O
points
CIO 0.04 CIO 0.04 CIO 0.04 Interrupt input 0 Quick-response input 0
CIO 0.05 CIO 0.05 CIO 0.05 Interrupt input 1 Quick-response input 1
CIO 0.06 CIO 0.06 --- Interrupt input 2 Quick-response input 2
CIO 0.07 CIO 0.07 --- Interrupt input 3 Quick-response input 3
CIO 0.08 --- --- Interrupt input 4 Quick-response input 4
CIO 0.09 --- --- Interrupt input 5 Quick-response input 5
Item Specification
Max. switching capacity 2 A, 250 VAC (cosφ = 1)
2 A, 24 VDC (4 A/common)
Min. switching capacity 10 mA, 5 VDC
Service life
of relay
Electrical Resistive
load
100,000 operations (24 VDC)
Inductive
load
48,000 operations (250 VAC, cosφ = 0.4)
Mechanical 20,000,000 operations
ON delay 15 ms max.
