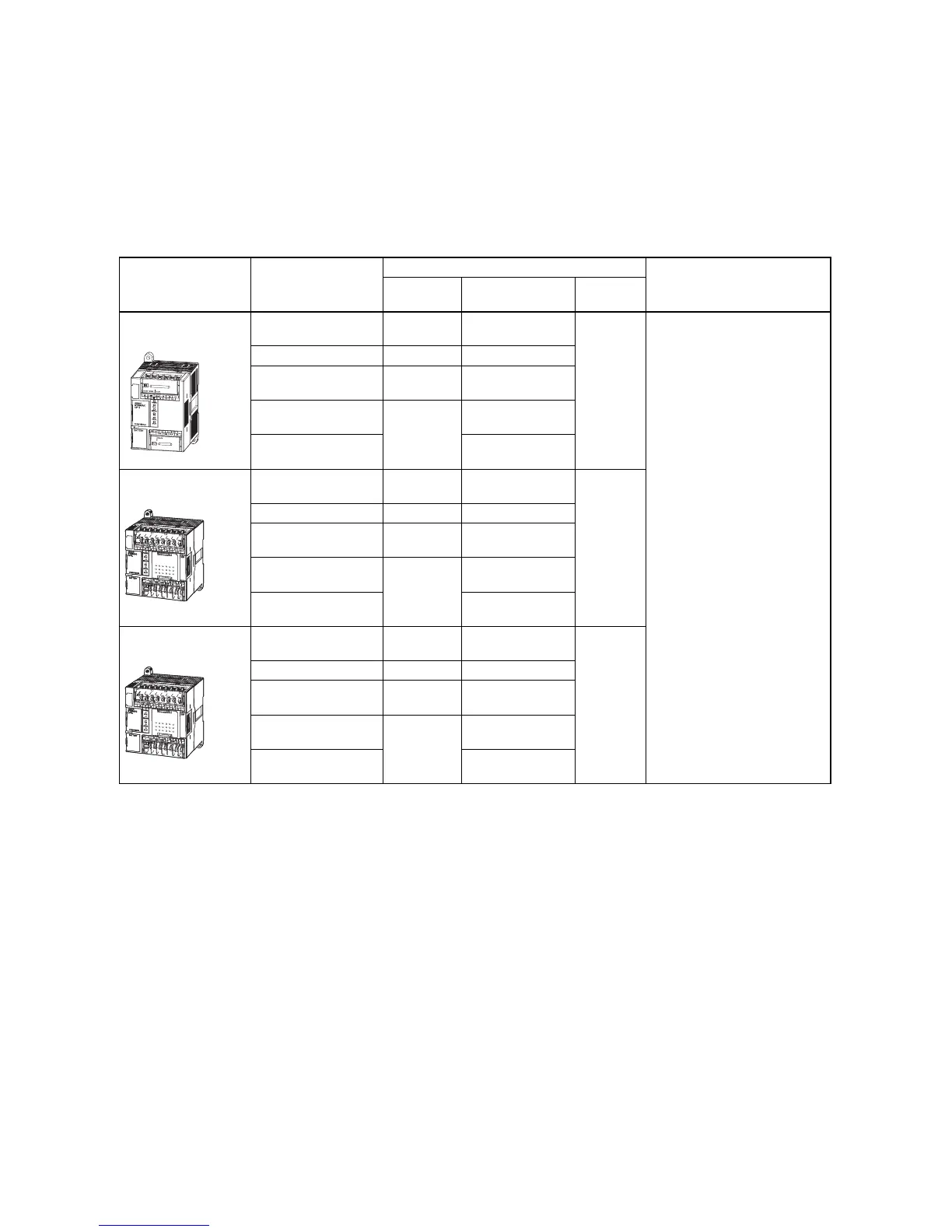

Omron CP1L - A Standard Models

583
Appendix A
Standard Models
CPU Units
Name and
appearance
Model Specifications Remarks
Power
supply
Outputs Inputs
CPU Units with 10
I/O Points
CP1L-L10DR-A 100 to
240 VAC
4 relay outputs 24 VDC
6 inputs
Memory capacity: 5 Ksteps
High-speed counters:
100 kHz, 4 counters
Pulse outputs:
2 axes at 100 kHz
CP1L-L10DR-D 24 VDC 4 relay outputs
CP1L-L10DT-A 100 to
240 VAC
4 transistor
outputs, sinking
CP1L-L10DT-D 24 VDC 4 transistor
outputs, sinking
CP1L-L10DT1-D 4 transistor
outputs, sourcing
CPU Units with 14
I/O Points
CP1L-L14DR-A 100 to
240 VAC
6 relay outputs 24 VDC
8 inputs
CP1L-L14DR-D 24 VDC 6 relay outputs
CP1L-L14DT-A 100 to
240 VAC
6 transistor
outputs, sinking
CP1L-L14DT-D 24 VDC 6 transistor
outputs, sinking
CP1L-L14DT1-D 6 transistor
outputs, sourcing
CPU Units with 20
I/O Points
CP1L-L20DR-A 100 to
240 VAC
8 relay outputs 24 VDC
12 inputs
CP1L-L20DR-D 24 VDC 8 relay outputs
CP1L-L20DT-A 100 to
240 VAC
8 transistor
outputs, sinking
CP1L-L20DT-D 24 VDC 8 transistor
outputs, sinking
CP1L-L20DT1-D 8 transistor
outputs, sourcing
