Features and Main Functions Section 1-1
1-1 Features and Main Functions
1-1-1 CP1L Overview
The SYSMAC CP1L PLCs are the low end PLCs in the SYSMAC CP Series
of package-type Programmable Controllers. They have the smallest program
and I/O capacity. The CP1L PLCs are the same size as the CPM1A and
CPM2A PLCs, but offer many more features and high performance.

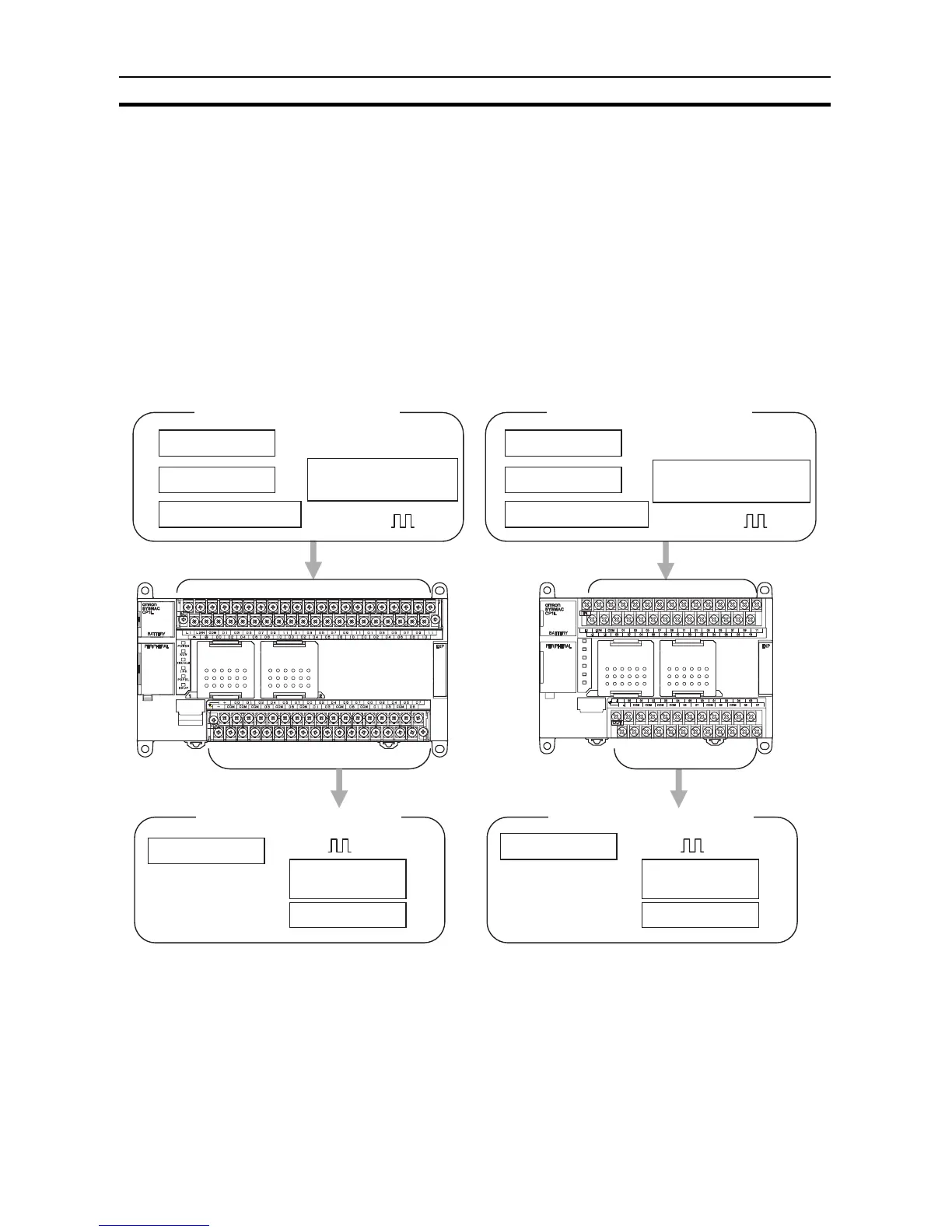

CPU Units with 60 I/O Points: CP1L-M60D@-@ CPU Units with 40 I/O Points: CP1L-M40D@-@
• The CPU Unit has 36 inputs and 24 outputs built
in.
• The CPU Unit has 24 inputs and 16 outputs built
in.
• The PLC can be expanded to a maximum total of
180 I/O points by using CP-series Expansion I/O
Units.
• The PLC can be expanded to a maximum total of
160 I/O points by using CP-series Expansion I/O
Units.
36 built-in inputs (Functions
can be assigned.) (See note.)
Normal inputs (36)
Interrupt inputs (6)
Quick-response inputs (6)
High-speed counter
(4 counters/2 axes)
100 kHz (single phase)
24 built-in outputs (Functions
can be assigned.) (See note.)
Normal outputs (24)
2 pulse outputs
100 kHz
2 PWM outputs
24 built-in inputs (Functions
can be assigned.) (See note.)
Normal inputs (24)
Interrupt inputs (6)
Quick-response inputs (6)
High-speed counter
(4 counters/2 axes)
100 kHz (single phase)
16 built-in outputs (Functions
can be assigned.) (See note.)
Normal outputs (16)
2 pulse outputs
100 kHz
2 PWM outputs
CPU Units with transistor outputs only. CPU Units with transistor outputs only.
