Wiring CPU Unit I/O Section 3-5

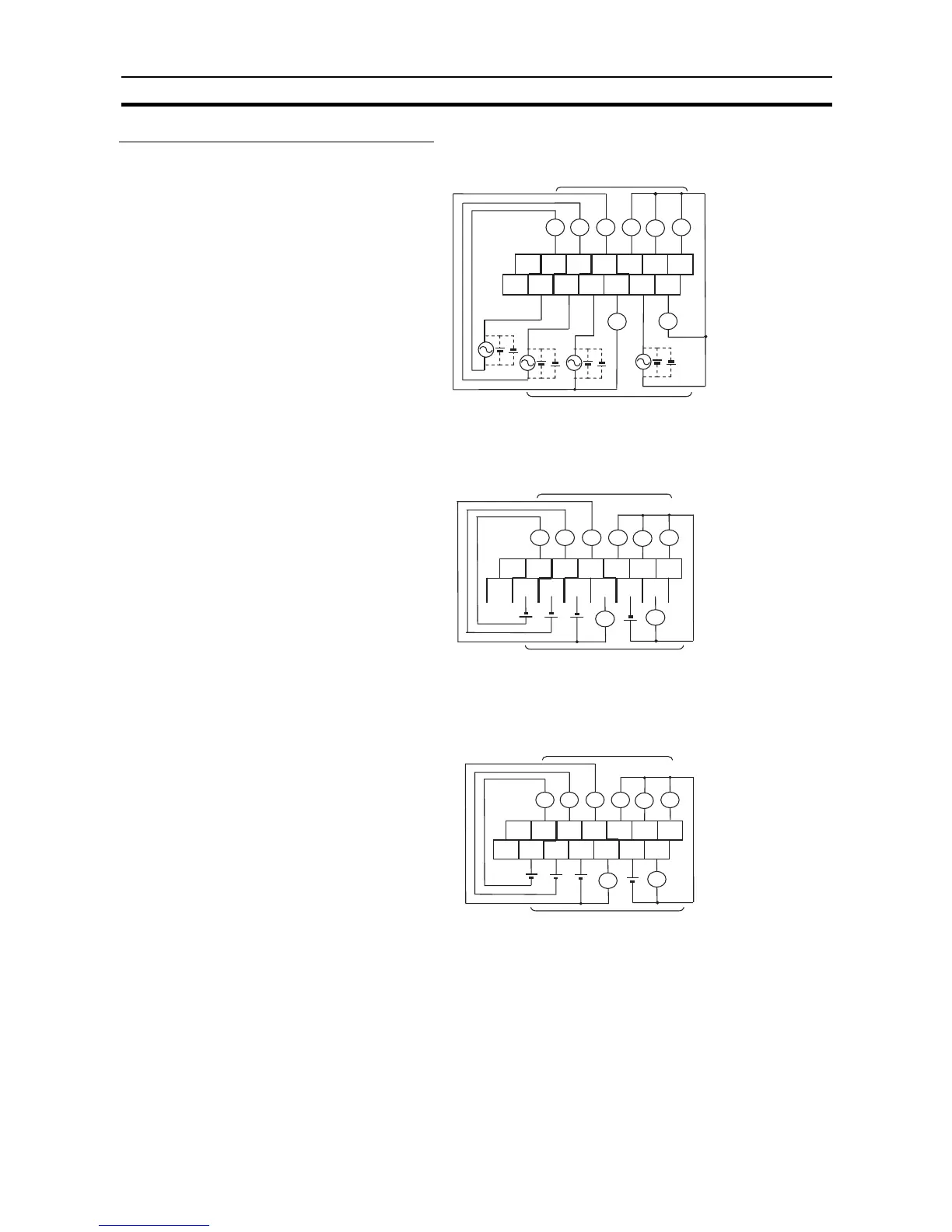

Output Wiring (Lower Terminal Block)
Relay Outputs
(CP1L-L20DR-A, CP1L-
L20DR-D, CP1L-J20DR-A
and CP1L-J20DR-D)
AC-power-supply models have a 24-VDC output terminals (+/−) on the lower
terminal block. They can be used as a DC power supply for the input circuit.
Sinking Transistor
Outputs (CP1L-L20DT-A
and CP1L-L20DT-D)
AC-power-supply models have a 24-VDC output terminals (+/−) on the lower
terminal block. They can be used as a DC power supply for the input circuit.
Sourcing Transistor
Outputs (CP1L-L20DT1-D
and CP1L-J20DT1-D)
CIO 100
L L L L
L
L
L
L
+ 00 01 02 04 05 07
- COM COM COM 03 COM 06
CIO 100
CIO 100
L L L L
L
L
L
L
+
00 01 02 04 05 07
-
COM COM COM 03 COM 06
CIO 100
CIO 100
L L L L L L
L
L
NC 00 01 02 04 05 07
NC COM COM COM 03 COM 06
CIO 100
