343
Interrupt Functions Section 6-1

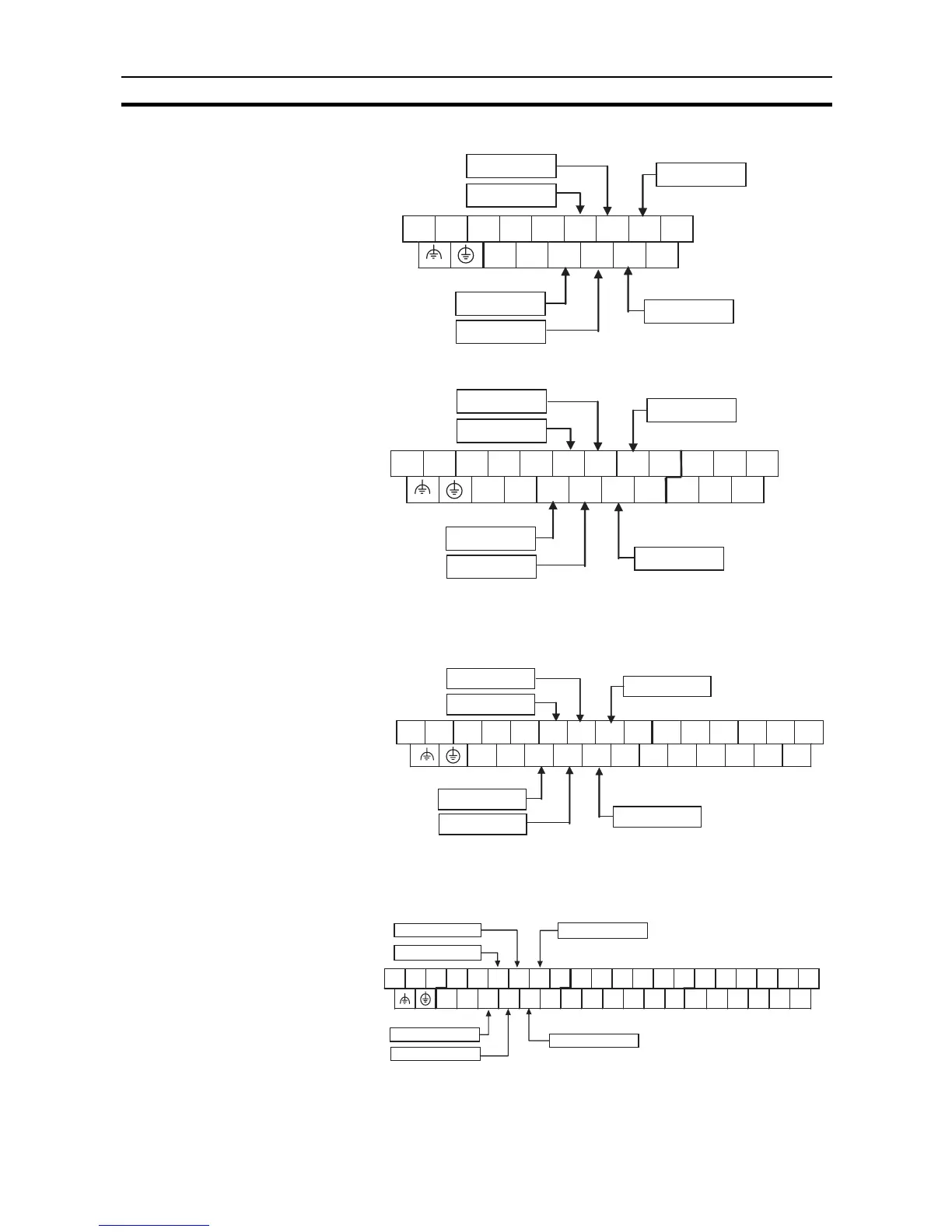

Input Terminal Block of
CPU Units with 20 I/O
Points
The 6 input bits CIO 0.04 to CIO 0.09 can be used for input interrupts.
Input Terminal Block of
CPU Units with 30 I/O
Points
The 6 input bits CIO 0.04 to CIO 0.09 can be used for input interrupts.
Input Terminal Block of
CPU Units with 40 I/O
Points
The 6 input bits CIO 0.04 to CIO 0.09 can be used for input interrupts.
Input Terminal Block of
CPU Units with 60 I/O
Points
The 6 input bits CIO 0.04 to CIO 0.09 can be used for input interrupts.
L1 L2/N COM 01 03 05 07 09 11
00 02 04 06 08 10
Input interrupt 0
Input interrupt 2
Input interrupt 3
Input interrupt 1
Input interrupt 5
Input interrupt 4
Inputs (CIO 0)
Upper Terminal Block
(Example: CPU Unit
with AC Power Supply)
L1 L2/N COM 01 03 05 07 09 11 01 03 05
00 02 04 06 08 10 00 02 04
Input interrupt 0
Input interrupt 2
Input interrupt 3
Input interrupt 1
Input interrupt 5
Input interrupt 4
Inputs (CIO 0) Inputs (CIO 1)
Upper Terminal Block
(Example: CPU Unit
with AC Power Supply)
L1 L2/N COM 01 03 05 07 09 11 01 03 05 07 09 11
00 02 04 06 08 10 00 02 04 06 08 10
Input interrupt 0
Input interrupt 2
Input interrupt 3
Input interrupt 1
Input interrupt 5
Input interrupt 4
Upper Terminal Block
(Example: CPU Unit
with AC Power Supply)
Inputs (CIO 0) Inputs (CIO 1)
Input interrupt 4
Input interrupt 5
Inputs(CIO 0)
Input interrupt 1
Input interrupt 0
Input interrupt 2
Input interrupt 3
Inputs(CIO 1)
Inputs(CIO 2)
L1 L2/N COM 01 03 05 07 09 11 01 03 05 07 09 11 01 03 05 07 09 11
00 02 04 06 08 10 00 02 04 06 08 10 00 02 04 06 08 10
Upper Terminal Block
(Example: AC Power
Supply Modules)
