Temperature Sensor Units Section 7-5
Note Accuracy for a K-type sensor at −100°C or less is ±4°C ±1 digit max.
Using Temperature Sensor Units
Connecting Temperature
Sensor Units
A maximum of three CPM1A-TS002 and CPM1A-TS102 Temperature Sensor
Units can be connected, because each is allocated four words.
Setting Temperature Ranges
Note (1) Always turn OFF the power supply before setting the temperature range.
(2) Never touch the DIP switch or rotary switch during Temperature Sensor
Unit operation. Static electricity may cause operating errors.
The Temperature Sensor Unit’s DIP switch and rotary switch are used to set
the temperature unit, to select 2-decimal-place Mode is to be used, and to set
the temperature input range.

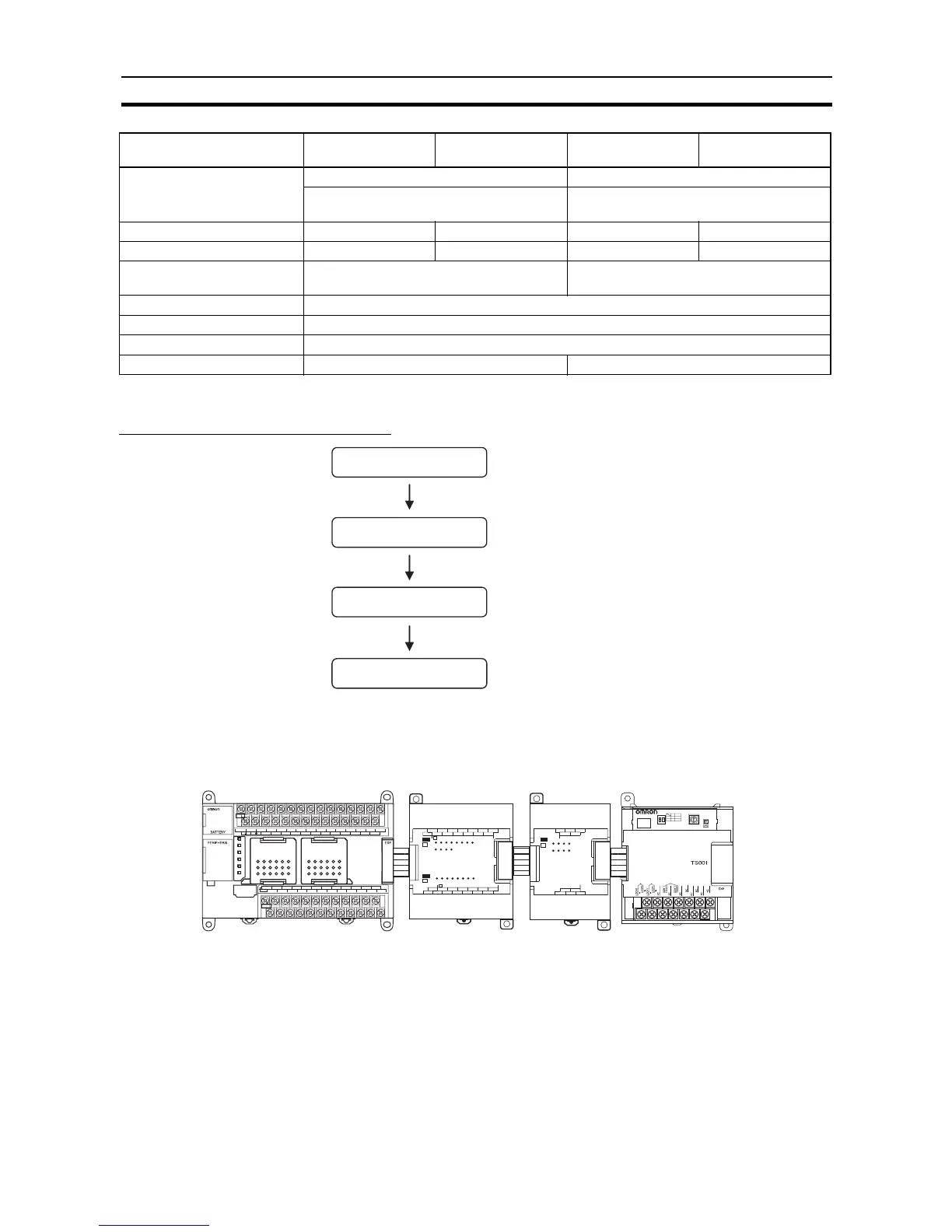

Item CP1W-TS001
CPM1A-TS001
CP1W-TS002
CPM1A-TS002
CP1W-TS101
CPM1A-TS101
CP1W-TS102
CPM1A-TS102
Temperature sensors Thermocouples Platinum resistance thermometer
Switchable between K and J, but same type
must be used for all inputs.
Switchable between Pt100 and JPt100, but
same type must be used for all inputs.
Number of inputs2424
Allocated input words2424
Accuracy (The larger of ±0.5% of converted value or
±2°C) ±1 digit max. (See note.)
(The larger of ±0.5% of converted value or
±1°C) ±1 digit max.
Conversion time 250 ms for 2 or 4 input points
Converted temperature data 16-bit binary data (4-digit hexadecimal)
Isolation Photocouplers between all temperature input signals
Current consumption 5 VDC: 40 mA max., 24 VDC: 59 mA max. 5 VDC: 54 mA max., 24 VDC: 73 mA max.
Connect the Unit.
Set the temperature ranges.
Connect the temperature
sensors.
Program operation in the
ladder program.
• Connect the Temperature Sensor Unit.
• Set the temperature unit, 2-decimal-place Mode
if required, and set the temperature input range.
• Connect temperature sensors.
• Read temperature data stored in the input word.
SYSMAC
CP1L
L1 L2/N
COM 01 03 05 07 09 11 01 03 05 07 09 11
00 02 04 06 08 10 00 02 04 06 08
10
00 01 02 03 04 06 00 01 03 04 06
COM COM COM COM 05 07 COM 02 COM 05
07
IN
OUT
IN
00
CH
CH
02 04 06 08
10
OUT
01COM 0305070911
COM COM COM 03COM
06
00 01 02 04 05
07
00 01 02 03 04 05 06
07
08 09 10
11
20EDR1
CH
00 01 02 03 04 05 06
07
NC
NC
NC
CH
EXP
IN
00 02
01COM 03
COM 0507
04 06
CH
00 01 02 03
08 09 10 11
8ED
EXP
CP1L CPU Unit
CP1W-20EDR1/
CPM1A-20EDR1
Expansion I/O Unit
CP1W-8ED/
CPM1A-8ED
Expansion I/O Unit
CP1W-TS001/TS101/
CPM1A-TS001/TS101
Temperature Sensor Unit
