506
LCD Option Board Function Section 8-6

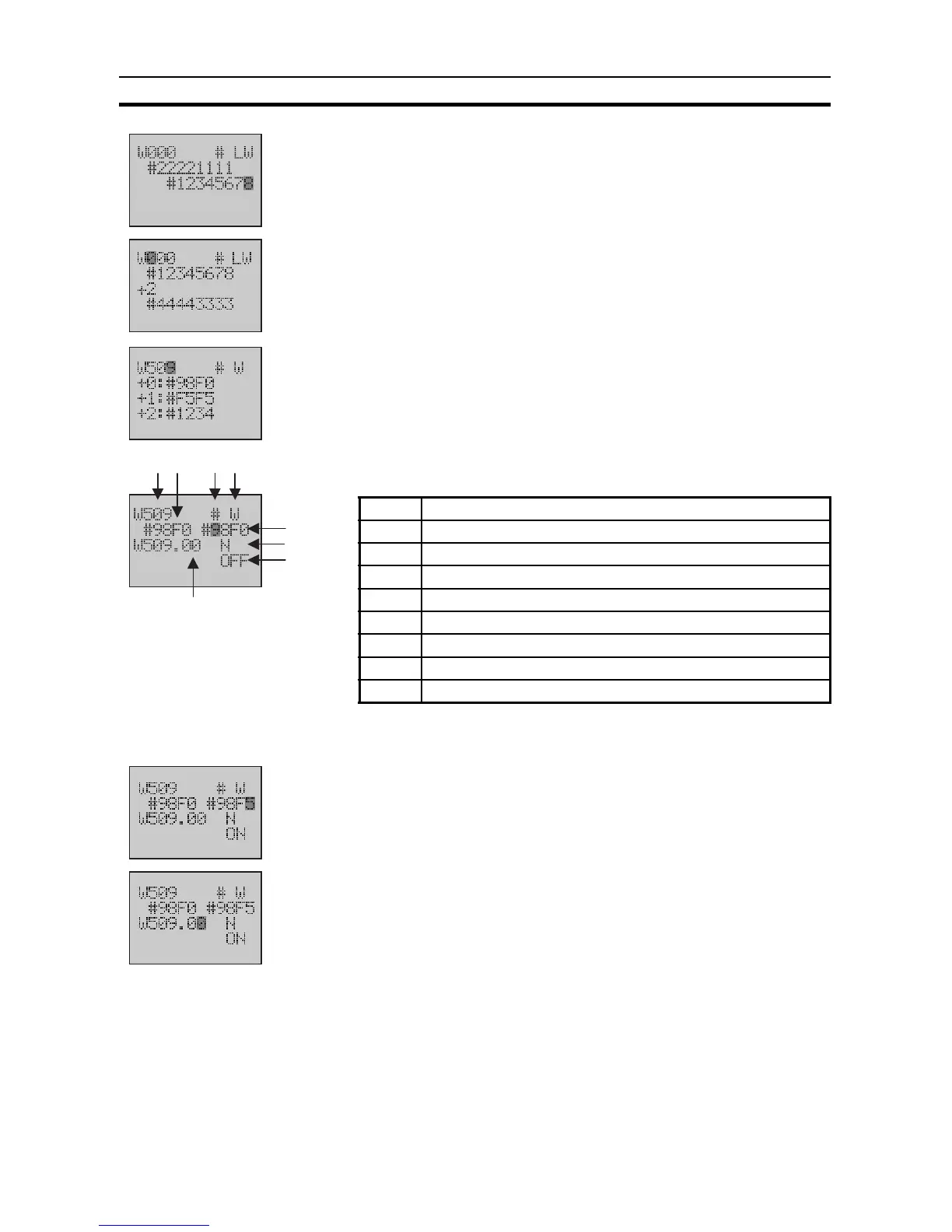

8. Press the Forward button to move the column cursor to the digit to be set.
Use the Down or Up button to change the data to
12345678 .
9. Press the OK button to save the setting.
Press the ESC button to return to the previous screen.
Then the data on W000 displayed in the Monitor Screen will be 12345678.
10. Change the leading word address to
509 to update the screen display.
11. Press the OK button to enter the Change Screen of I/O memory W509.
The following table shows the setting items.
Note If the display format is a decimal number (& or +), or the data length
is a LongWord, user cannot make a setting for bit.
12. Move the column cursor to the digit to be set.
Use the Up button to change the data to
98F5 .
13. Use the Forward button to move the column cursor to the position of bit
address.
The present setting is the default address. The range is 00~15.
a dbc
e
g
h
f
No. Description
a Leading word address(Read only)
b Display format(Read only)
c Data length(Read only)
d Data of I/O memory before change (Read only)
e Data of I/O memory after change
f Bit address
g Bit flag
hBit state
