Omron CP1L User Manual

vii

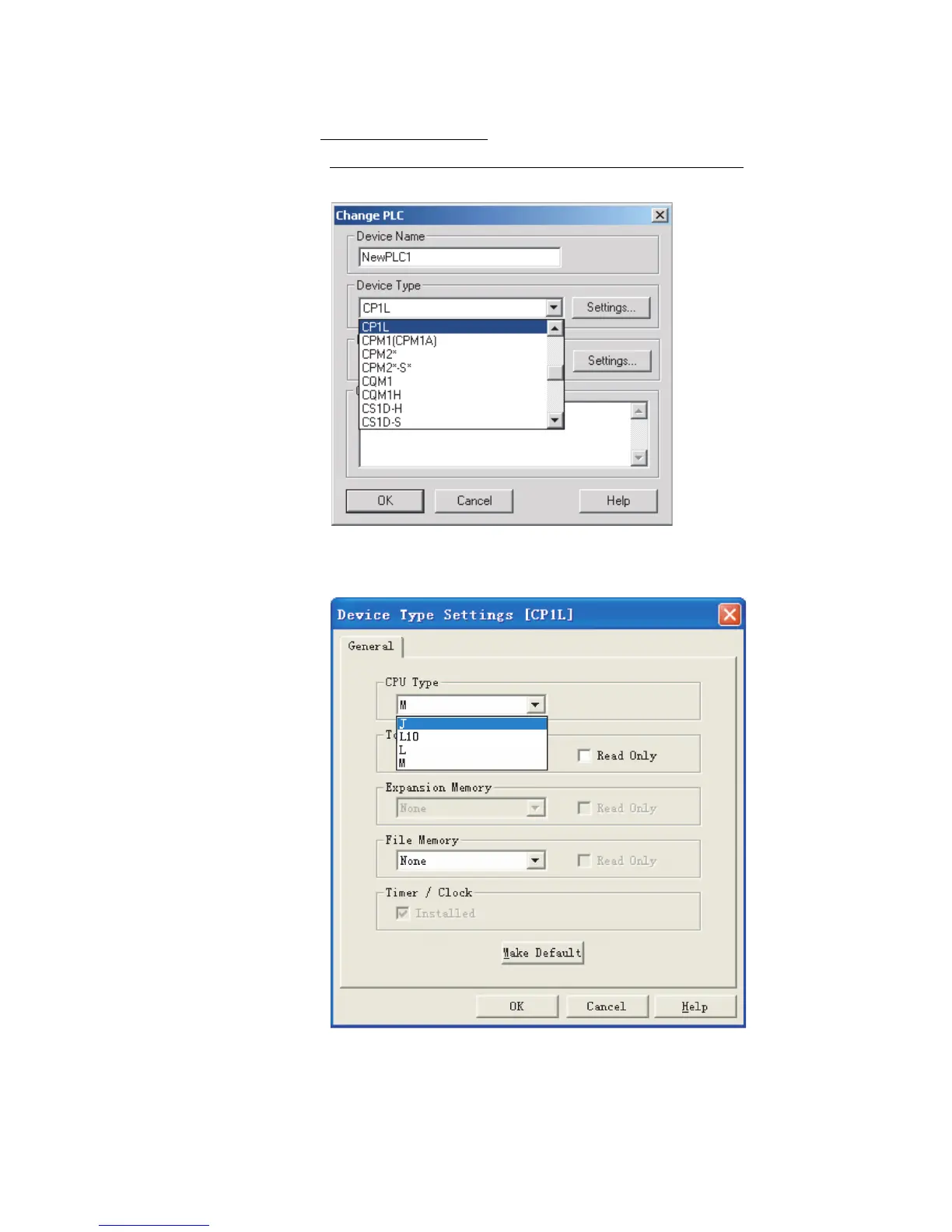

■ Confirmation Procedure
Procedure When the Device Type and CPU Type Are Known
1,2,3... 1. Set the Device Type Field in the Change PLC Dialog Box to CP1L .
2. Click the Settings Button by the
Device Type Field and, when the Device
Type Settings Dialog Box is displayed, set the
CPU Type Field to J, L, L10
or M .

Omron CP1L Specifications

General

Model	CP1L
Data Memory Capacity	32K words
Program Capacity	10K steps
Communication Ports	USB, RS-232C
Expansion	I/O
Pulse Output	100 kHz
Built-in I/O	Digital I/O
Expansion Slots	Supports up to 3 expansion units
Operating Voltage	100-240 VAC or 24 VDC (varies by model)
Operating Temperature	55 degrees Celsius
Storage Temperature	75 degrees Celsius
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
Shock Resistance	147 m/s^2, 3 times in X, Y, and Z directions
