Omron F3SJ Series User Manual

119
F3SJ-A
User’s Manual
Chapter4 Installation Conditions
Wiring/Installation
E

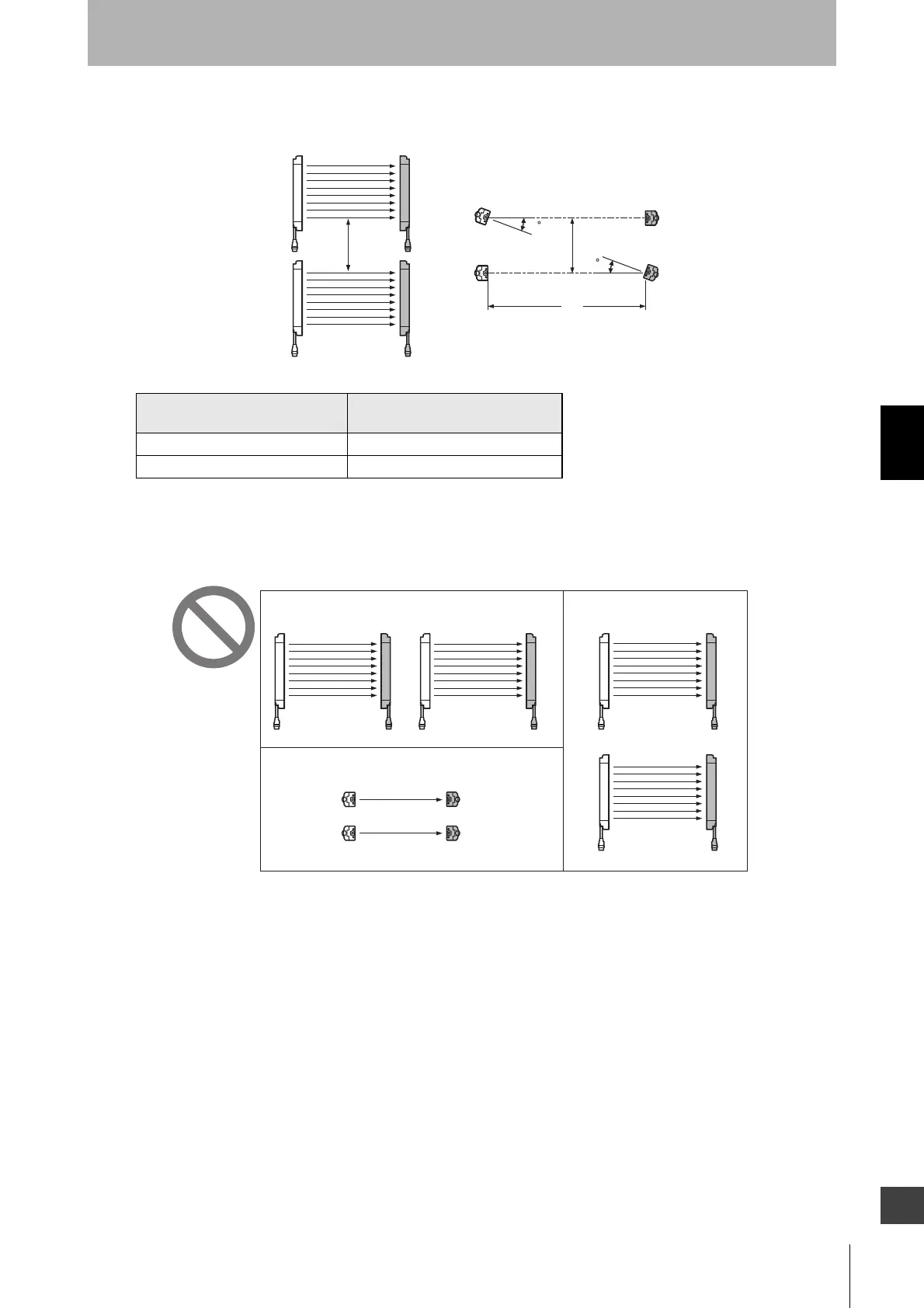

4. Keep sufficient distance between the F3SJs so that mutual interference does not occur
When using 4 or more sets that are not series-connected, the installations shown below may cause
mutual interference. When mutual interference occurs, the safety outputs are turned OFF in a moment
or the F3SJ enters lockout.
Distance between emitter and
receiver (operating range L)
Allowable installation distance D
For 0.2 to 3m 0.26m
For 3m or more L x tan5 ° = L x 0.088 (m)
DD
L
D
5
5
Receiver
Emitter Receiver
Emitter Receiver
Emitter
Receiver
Emitter
Emitter Receiver Emitter Receiver
Emitter Receiver
Receiver
Emitter
Aligned horizontally
Aligned fore and aft
Emitter Receiver
Emitter
Receiver
Aligned vertically

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
