Omron F3SJ Series User Manual

135
F3SJ-A
User’s Manual
Chapter4 Dimensions
Wiring/Installation
E

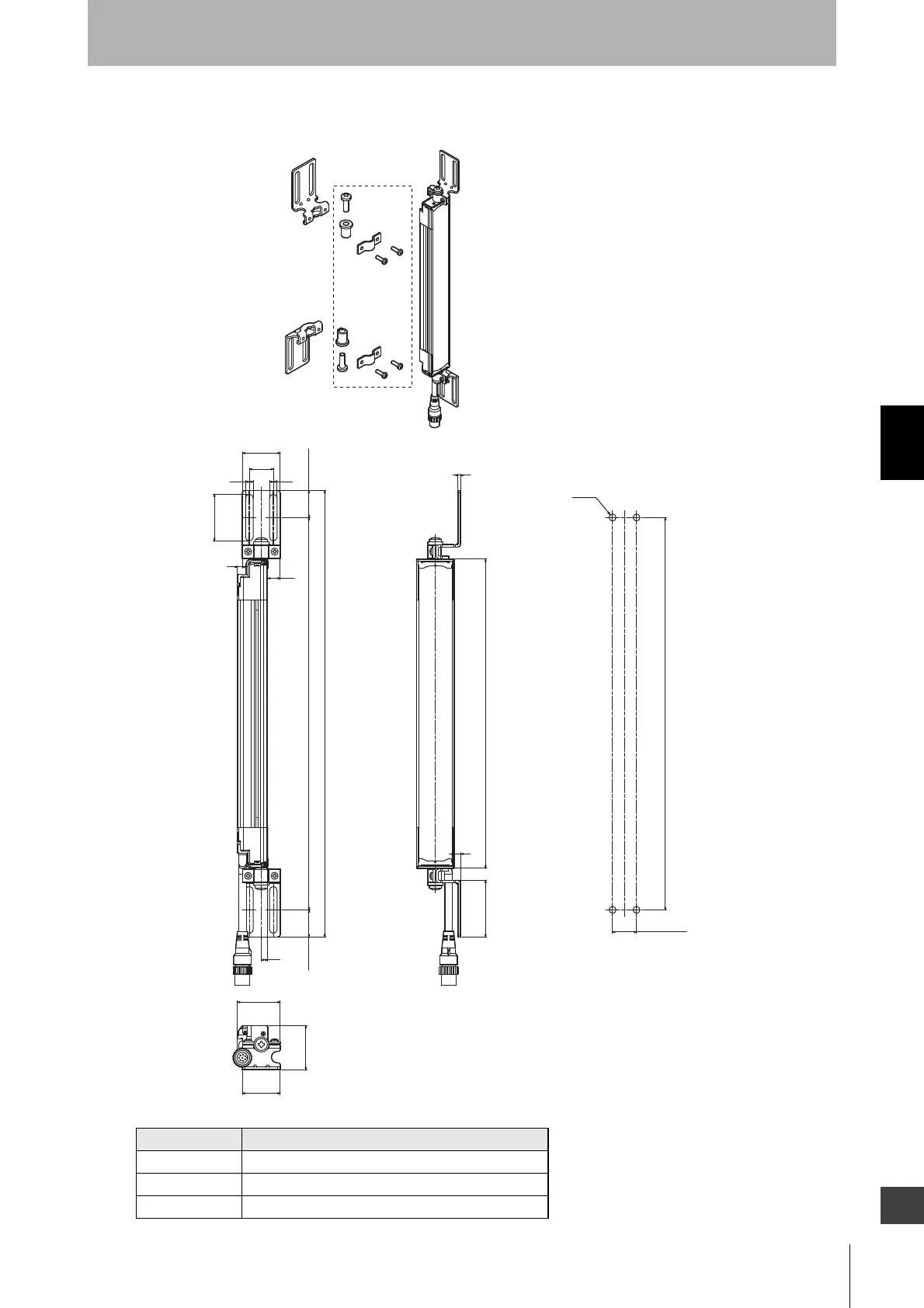

Dimensions A to C
A C + 109
BC + 66
C 4-digit number of the model name (protective height)
F39-LJ4
4-M5
B
19(*1)
19
66
37
A B
21.5
(21.5)
30
35
34
5
4
10
5
30
2
45
Side mounting
Use standard
brackets
C (Protective height)
(Unit: mm)
Material: Stainless steel
*1 A mounting width of 18 to 20 can be
supported when mounting with M5 screws.

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
