Chapter4 Dimensions
F3SJ-A
User’s Manual
Wiring/Installation

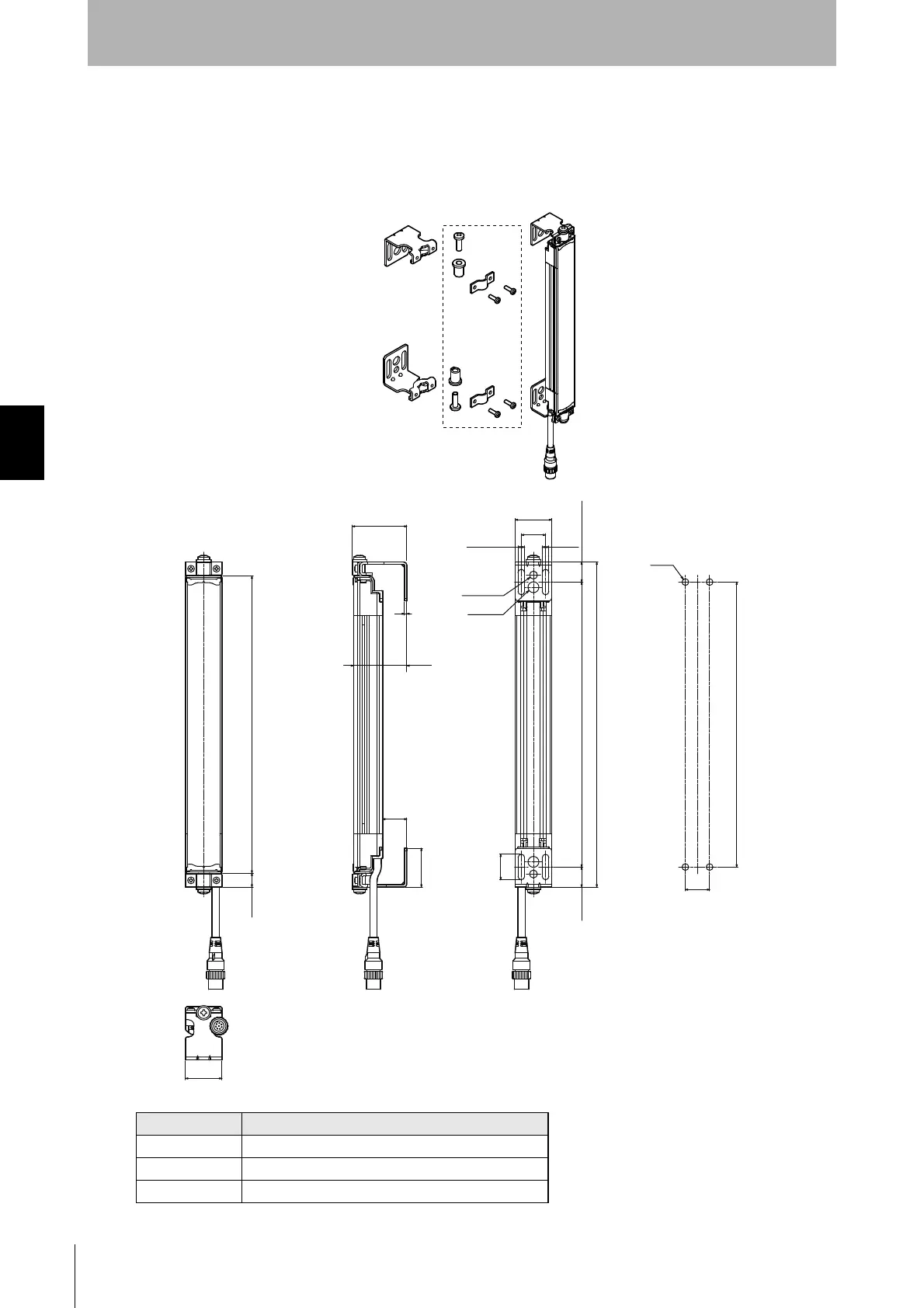

 F39-LJ5 Replacement Bracket for F3SN
Use these replacement brackets for an F3SN with a small protective height.
(These brackets are designed for use with the F3SN's mounting holes.)
Dimensions A to C
AC + 23
BC - 10
C 4-digit number of the model name (protective height)
F39-LJ5
Inward-facing mounting
Use standard
brackets
5.5
5.5
20
30
21
32
19.9
20
B
B
4-M5
30
2
16.5
(16.5)
A
11.5
C (Protective height)
(Unit: mm)
Material: Stainless steel
dia. 6.5
dia. 9
44.9
44

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
