Chapter4 Dimensions
F3SJ-A
User’s Manual
Wiring/Installation
 F39-LJ9 Mounting Bracket for F3W-C Replacement
Use these brackets to replace F3W-C.

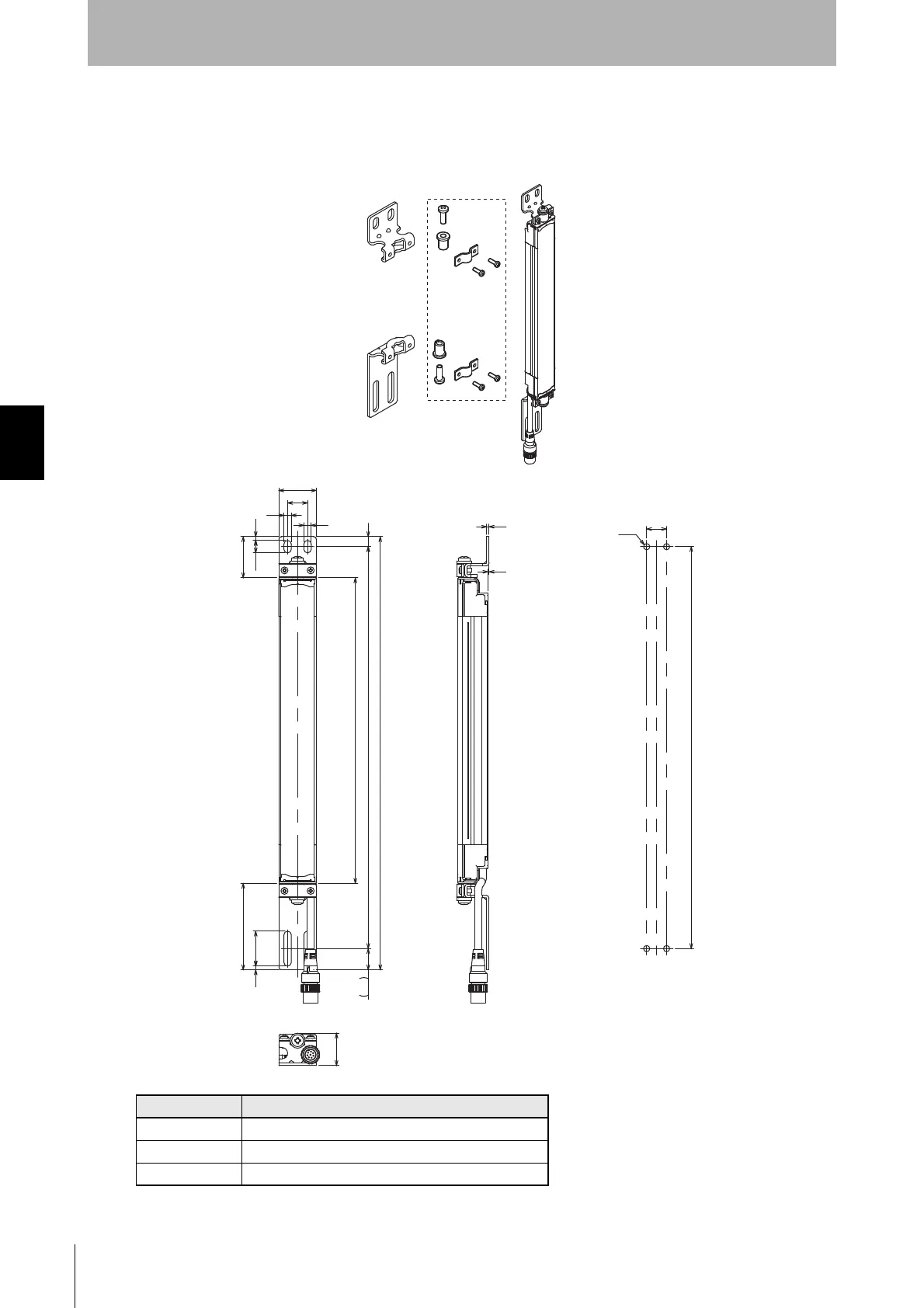

Dimensions A to C
A C + 102.3
B C + 77.3
C 4-digit number of the model name (protective height)
F39-LJ9
Backside mounting
Use standard
brackets
(Unit: mm)
C (Protective height)
8B17
16
B
16
6
6
30
3
10
33
3 28
69.3
A
4-M5
1
2
26
Material: Stainless steel

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
