Chapter4 Dimensions
Wiring/Installation
E
Dimensions A to C
A C + 102.3
B C + 77.3
C 4-digit number of the model name (protective height)

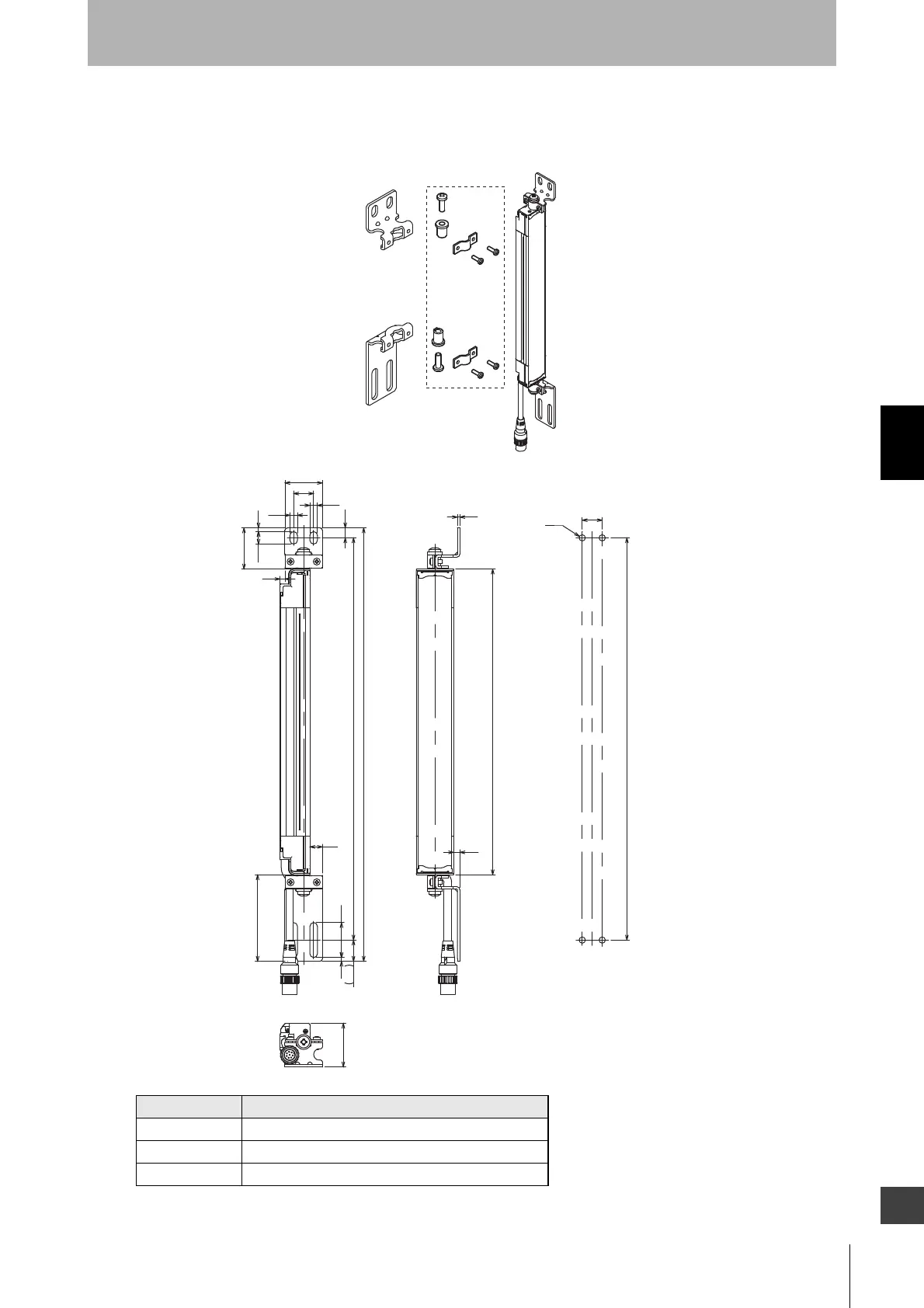

F39-LJ9
Side mounting
Use standard
brackets
(Unit: mm)
16
B
5
2
4-M5
B
8
17
30
6
6
16
A
3
10
33
69.3
3 28
10
4
35
C (Protective height)
Material: Stainless steel
