Omron F3SJ Series User Manual

160
Chapter4 Wiring
F3SJ-A
User’s Manual
Wiring/Installation

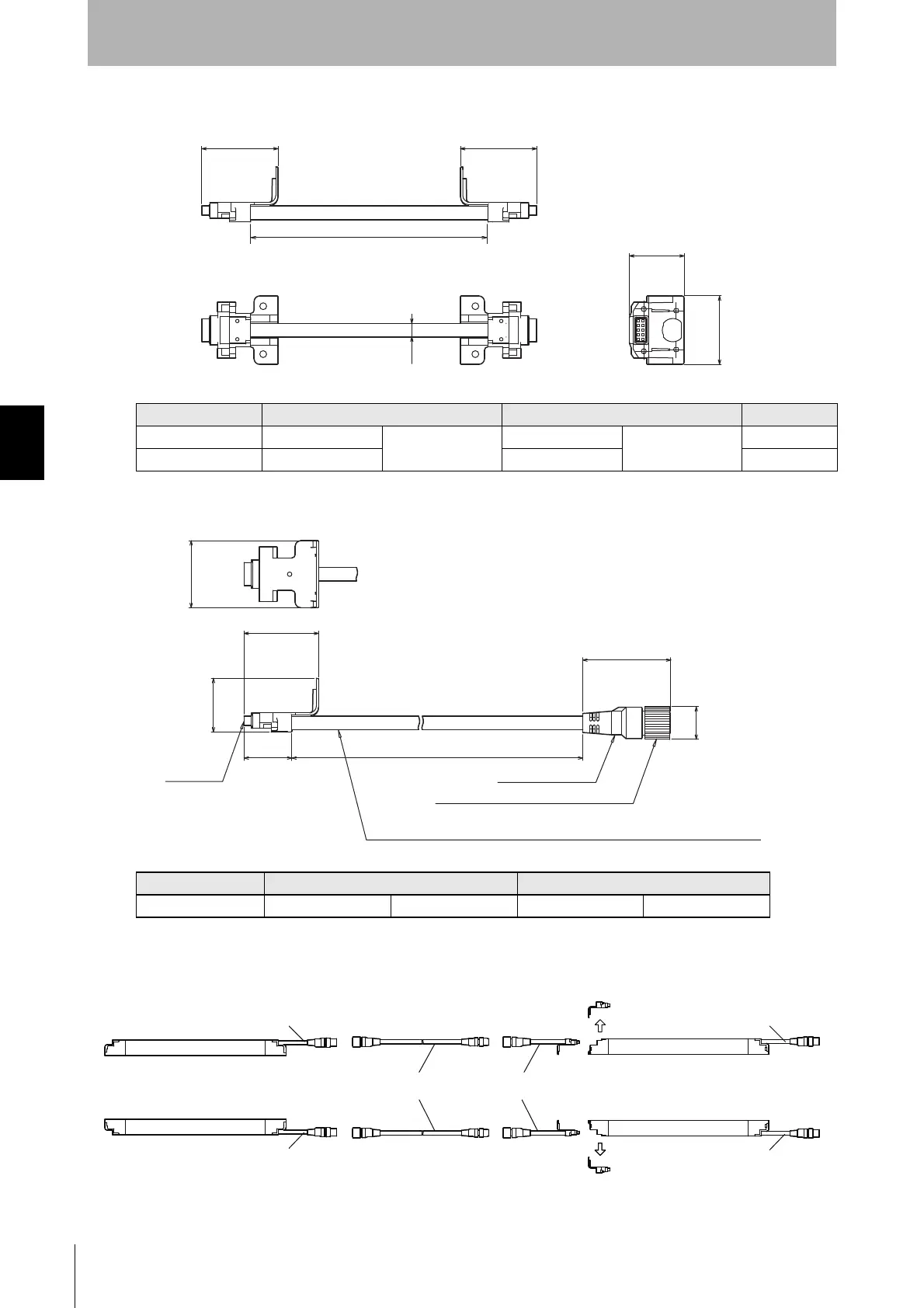

 Series Connection Cable for Close Contact(F39-JJRL, sold separately)
 Series Connection Cable for Extension (F39-JJR3W, sold separately)
Connect a double-ended cable F39-JCB or F39-JDB in between. (The maximum length between
series connections is 15m.)
Set model name For emitter For receiver L (mm)
F39-JJR06L F39-JJR06L-L Grey cable F39-JJR06L-D Black cable 60
F39-JJR15L F39-JJR15L-L F39-JJR15L-D 150
Set model name For emitter For receiver
F39-JJR3W F39-JJR3W-L Grey cable F39-JJR3W-D Black cable
L
33.433.4
dia. 6
24
30
(Unit: mm)
30
33.4
21.4
24
39.5
300
(Unit: mm)
Body color: Black
M12 Waterproof connector (socket)
Insulated vinyl round cable dia. 6, shielded
8-wire (Cross section of conductor: 0.15mm
2
/ Insulator diameter: 1mm)
Connector
dia. 15
Cap
Cap
F3SJ Emitter Cable is grey.
Series connection cable for
extension F39-JJR3W
F3SJ Receiver Cable is black F3SJ Receiver Cable is black.
F39-JCB-L/-JDB-L (Grey)
F39-JCB-D/-JDB-D (Black)
Cable with connectors on both ends
F39-JCB/-JDB
F3SJ Emitter Cable is grey
