Omron F3SJ Series User Manual

161
F3SJ-A
User’s Manual
Chapter4 Wiring
Wiring/Installation
E

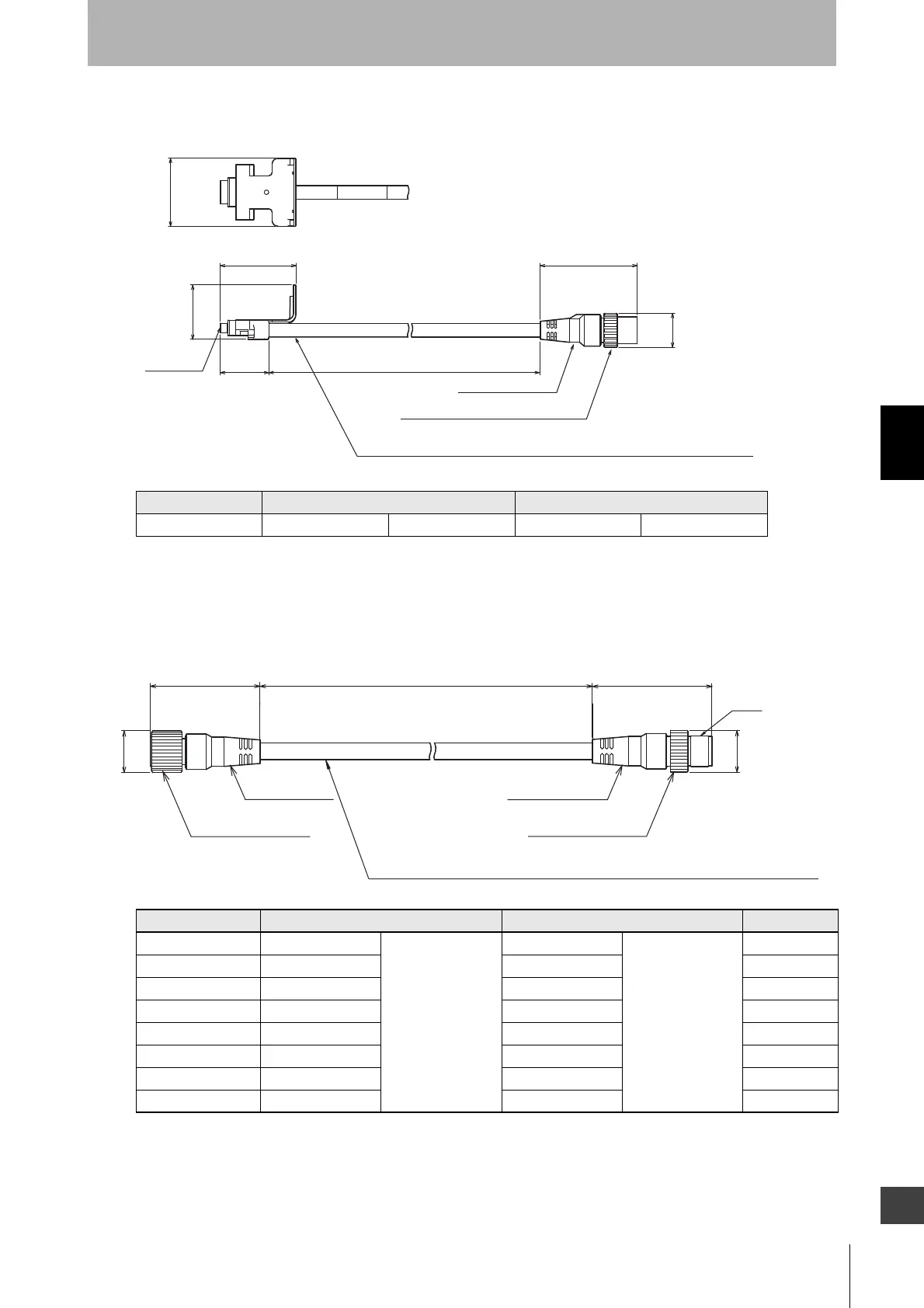

 Connection Cable (F39-JJR3K, sold separately)
The connection cable is a standard included product. Purchase a replacement when damaged or lost.
 Cable with Connectors on Both Ends: Cable for Extension and for Connection (F39-
JDB*, sold separately)
* The size and the number of wires of the double-ended cable F39-JCB are the same as those of F39-JDB.
Set model name For emitter For receiver
F39-JJR3K F39-JJR3K-L Grey cable F39-JJR3K-D Black cable
Set model name For emitter For receiver L (mm) *
F39-JDR5B F39-JDR5B-L Grey cable F39-JDR5B-D Black cable 500
F39-JD1B F39-JD1B-L F39-JD1B-D 1000
F39-JD3B F39-JD3B-L F39-JD3B-D 3000
F39-JD5B F39-JD5B-L F39-JD5B-D 5000
F39-JD7B F39-JD7B-L F39-JD7B-D 7000
F39-JD10B F39-JD10B-L F39-JD10B-D 10000
F39-JD15B F39-JD15B-L F39-JD15B-D 15000
F39-JD20B F39-JD20B-L F39-JD20B-D 20000
30
4333.4
21.4
24
300
(Unit: mm)
Body color: Black
M12 Waterproof connector (plug)
Connector
Insulated vinyl round cable dia. 6, shielded
8-wire (Cross section of conductor: 0.15mm
2
/ Insulator diameter: 1mm)
dia. 15
M12
39.5 L
43
dia. 15
dia. 15
M12 IP67 Connector
(Unit: mm)
Body color: Black
Body color: Black
M12 IP67 Connector
Insulated vinyl round cable dia. 6.6, shielded
8-wire (4-pair) (Cross section of conductor: 0.3mm
2
/ Insulator diameter: 1.15mm) *

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
