190
Chapter7 Accessories (Sold Separately)
F3SJ-A
User’s Manual
Appendix

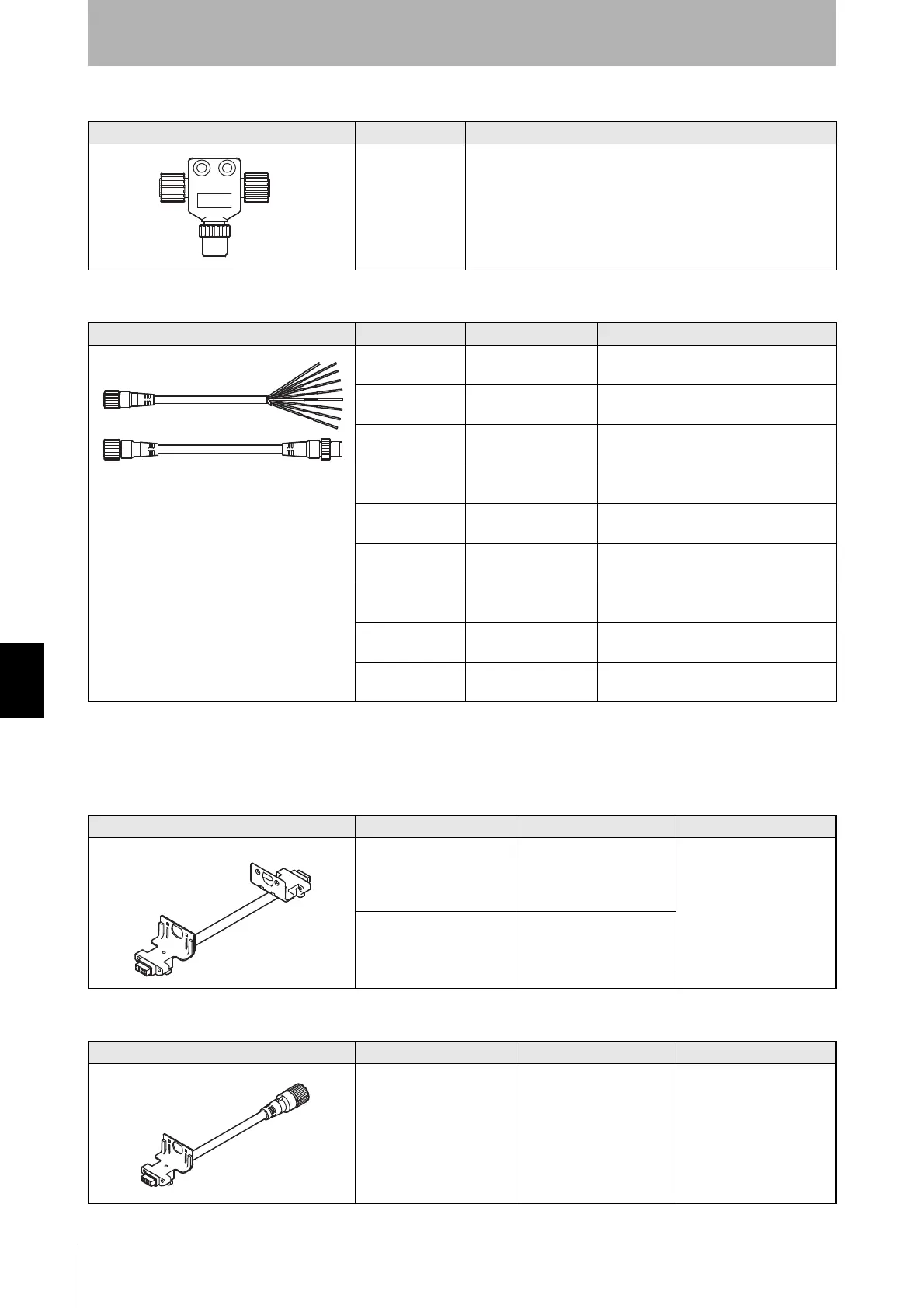

Reduced Wiring Connector
Cable for reduced wiring (2 cables per set, for emitter and receiver)
Note: Also available is a combination of cables for an emitter and a receiver with other lengths than the above.
For details, contact Omron.
* 1. Double-ended cable for an emitter and single-end cable for a receiver.
Series connection cable for close contact (2 cables per set, for emitter and receiver)
Series connection cable for extension (2 cables per set, for emitter and receiver)
Appearance Model name Note
F39-CN5 This connector is used for a reduced wiring system, in
combination with the following cables for reduced wiring system.
Appearance Model name Cable length Note
F39-JD0303BA Emission: 3m
Light Reception: 3m
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD3A-D
F39-JD0307BA Emission: 3m
Light Reception: 7m
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD7A-D
F39-JD0310BA Emission: 3m
Light Reception: 10m
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD10A-D
F39-JD0503BA Emission: 5m
Light Reception: 3m
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD3A-D
F39-JD0507BA Emission: 5m
Light Reception: 7m
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD7A-D
F39-JD0510BA Emission: 5m
Light Reception: 10m
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD10A-D
F39-JD1003BA Emission: 10m
Light Reception: 3m
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD3A-D
F39-JD1007BA Emission: 10m
Light Reception: 7m
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD7A-D
F39-JD1010BA Emission: 10m
Light Reception: 10m
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD10A-D
Appearance Model name Cable length Specifications
F39-JJR06L 0.06m Cap (10-pin)
- Cap (10-pin)
F39-JJR15L 0.15m
Appearance Model name Cable length Specifications
F39-JJR3W 0.3m Cap (10-pin)
- M12 connector (8-pin)
To Next Page
