F3SJ-A
User’s Manual
Chapter3 Setting Adjusted to Application
What can be done by the setting tool
E

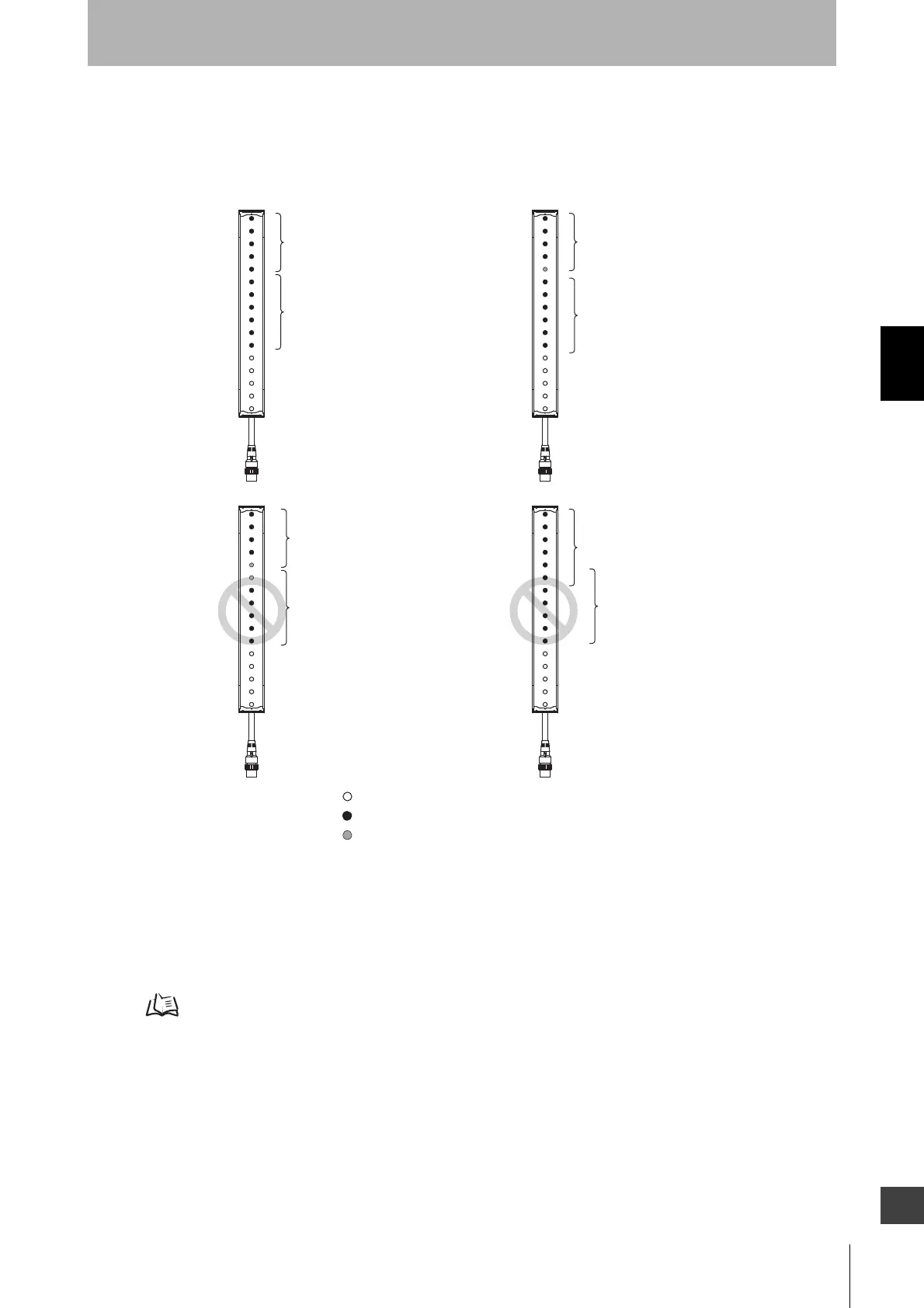

 Restriction Condition between Fixed Blanking Zones
More than one fixed blanking zone can be configured adjacently (Figures 1 and 2). But allowable
beams cannot be set adjacently. (Figure 3)
You cannot overlap fixed blanking zones. (Figure 4)
 Limitation for Combination with Other Functions
You can use this function in combination with muting, floating blanking, and warning zone functions at
the same time with the PC tool for F3SJ. The setting console can be combined with muting function.
For both setting tools, there is a limitation for setting with zones.
For details, see Setting Zone Adjacent Conditions p.91 .
Setting Zone Adjacent Conditions p.91
Normal detecting beam
Fixed blanking beam
Allowable beam
Figure 4Figure 3
Figure 1
Figure 2
Fixed blanking zone 1
Fixed blanking zone 2
Fixed blanking zone 1
Fixed blanking zone 2
Fixed blanking zone 1
(Lower 1 allowable beam)
Fixed blanking zone 1
(Lower 1 allowable beam)
Fixed blanking zone 2
(Upper 1 allowable beam)
Fixed blanking zone 2
Upper
Upper
Upper
Upper
Lower
Lower
Lower
Lower

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
