Omron MX2 Series User Manual

7 Other Functions
7 - 81
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)

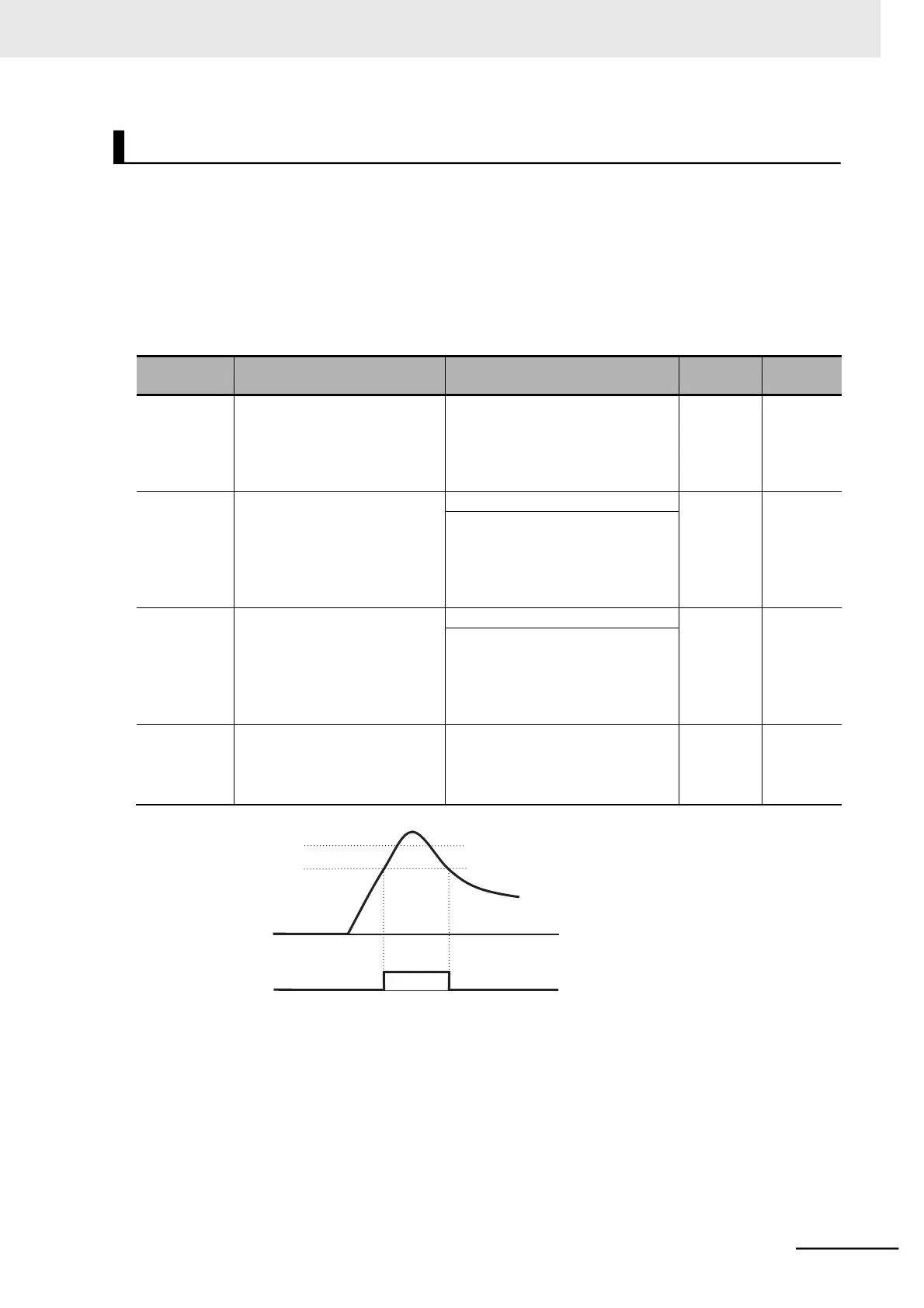

The overload warning function causes the inverter to output an overload warning if the load is too large,
before it detects an overload trip.
This is useful to prevent mechanical damage to transfer machines etc. due to overweighed loading, or
stoppage of transfer lines due to an overload, through the use of the overload protection function of the
inverter.
Allocate the Multi-function Output 11/12 selection (C021/C022) or the Multi-function Relay Output (AL1,
AL2) Function Selection (C026) to 03 (OL: Overload warning) or 26 (OL2: Overload warning 2). (Two
types of overload warning signals can be output.)
Parameter
No.
Function name
Data
Default
data
Unit
C040
Overload Warning Signal Out-
put Selection
00: Enabled during accelera-
tion/deceleration and constant
speed
01: Enabled during constant
speed
01
−
C041/C241
1st/2nd Overload Warning Level
0.00: Overload warning disabled
Rated
current 
1.15
A
0.01  Rated current to 2.00 
Rated current
The inverter will output the OL sig-
nal when the set overload warning
level is reached.
C111
1st Overload Warning Level 2
0.00: Overload warning disabled
Rated
current 
1.15
A
0.01  Rated current to 2.00 
Rated current
The inverter will output the OL2 sig-
nal when the set overload warning
level is reached.
Multi-function Output 11/12
03: OL (Overload warning)
C021, C022
C026
Selection
Multi-function Relay Output
26: OL2 (Overload warning 2)
−
−
(AL1, AL2) Function Selection
Overload Limit Level
b022/b025
Overload Warning Level
C041/C111
Output current
OL/OL2 output
Overload Warning

Omron MX2 Series Specifications

General

Cooling Method	Fan cooling
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, Sensorless vector control
Protection Functions	Overcurrent, overvoltage, undervoltage, overload, overheating, short circuit
Communication Options	Modbus RTU
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Ambient Operating Temperature	-10°C to +50°C
Enclosure	IP20
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Power Supply Voltage	200-240V AC
Input Voltage	3-phase 200-240V AC
