The main functions of the DriveProgramming Editor available in CX-Drive are as shown below.
Function
Description
Programming
Supports the creation, editing, saving, reading, and printing of user programs.
Compilation
Compiles a user programs.
*1
Transfer
Downloads a user program to the inverter, or
uploads a user program from the inverter.
Debugging support
Starts and stops the execution of a program.
This allows the user to check the inverter status monitor etc.
*1. Compilation is the process to generate an intermediate code after a program check.
For details, refer to “DriveProgramming User’s Manual (I580).”

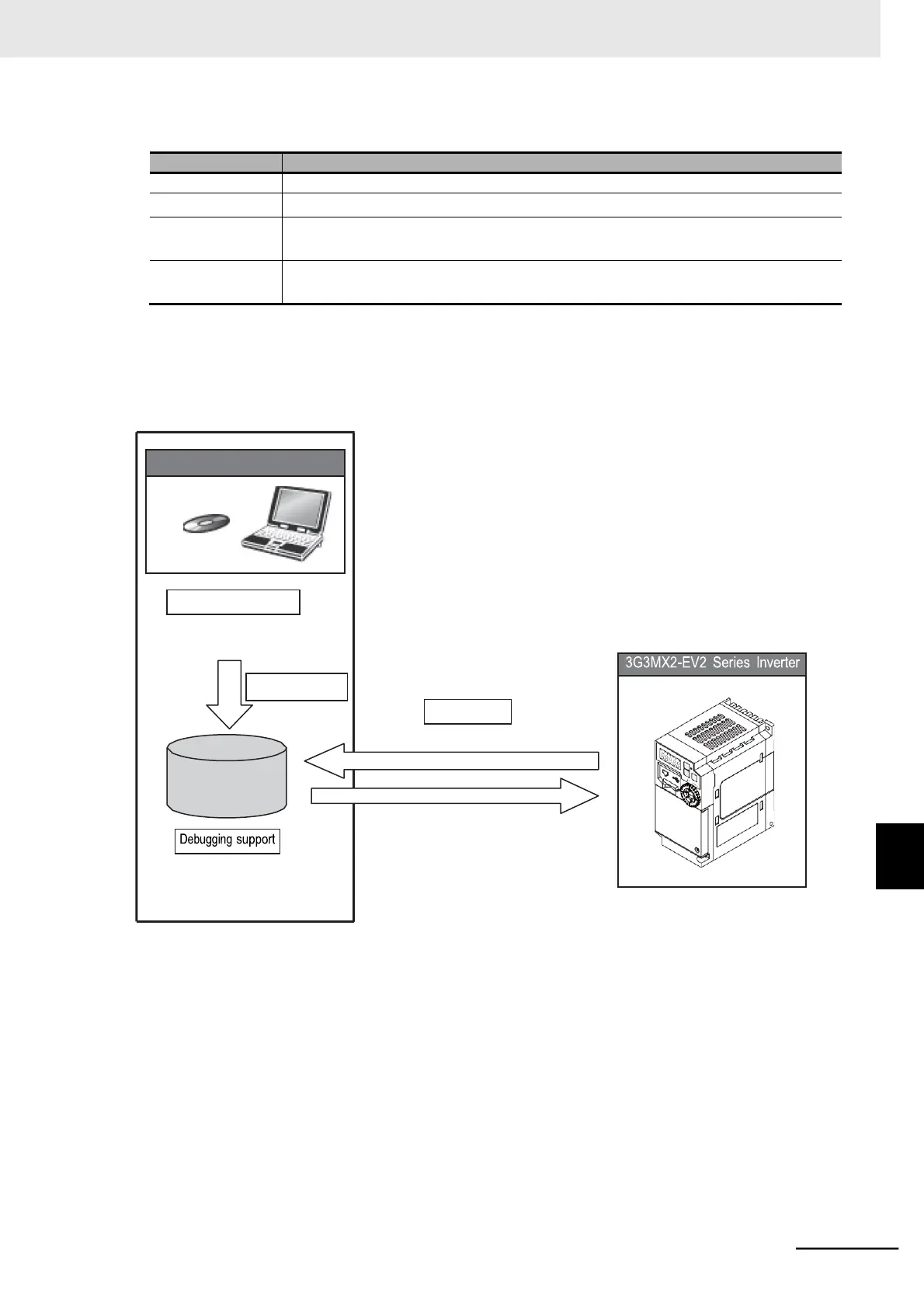

9 Overview of DriveProgramming
Creation, editing and saving of
user programs
Connect directly or
via communications
Upload
User Programs
Download
Program execution
Monitor
Parameter changed
(DriveProgramming)
CX-Drive
Ver. 3.02 or higher
Monitoring software
Transmission
Compilation
Programming
9
9-1 Overview of DriveProgramming

Omron MX2 Series Specifications

General

Cooling Method	Fan cooling
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, Sensorless vector control
Protection Functions	Overcurrent, overvoltage, undervoltage, overload, overheating, short circuit
Communication Options	Modbus RTU
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Ambient Operating Temperature	-10°C to +50°C
Enclosure	IP20
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Power Supply Voltage	200-240V AC
Input Voltage	3-phase 200-240V AC
