1 Overview
1 - 26
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)
3G3MX2-E
3G3MX2-EV2

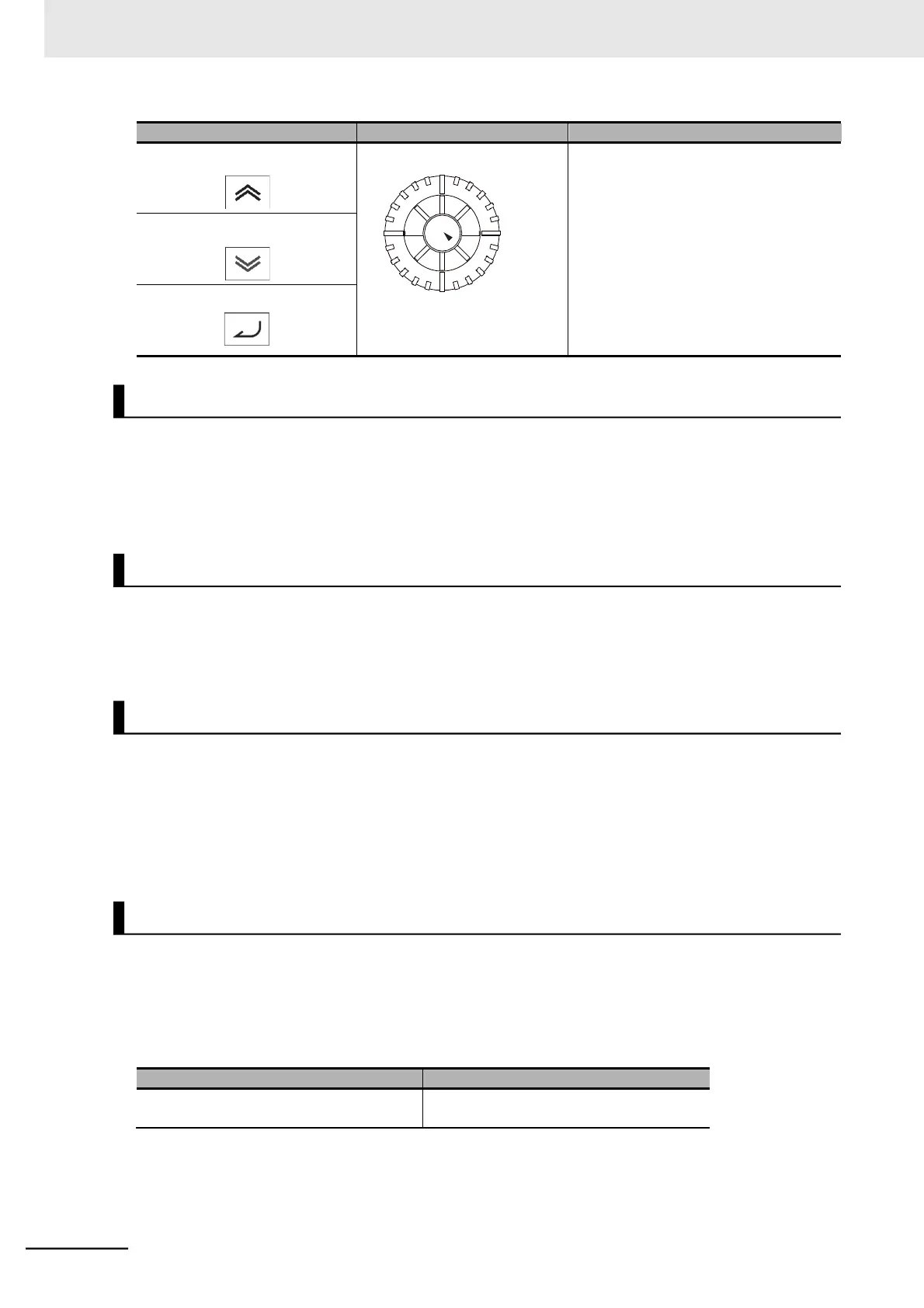

Details
Increment key
Jog dial
Enter key
The Increment key, Decrement key, and
Enter key are replaced with a Jog dial.
Decrement key
Enter key
The Digital Operator’s LED data display of the 3G3MX2-EV2 Series Inverter is changed to a 5-digit
display. Refer to 3-1-1 Part Names and Descriptions on page 3-5 for information on the LED data
display.
If the RUN command is input when the Inverter is unable to start operation (such as when the
frequency reference is 0 Hz or an alarm has occurred), the RUN LED blinks. Refer to 3-1-1 Part Names
and Descriptions on page 3-5 for information on the RUN LED indicator.
The digit shift display mode is added to display parameter data with more than 5 digits on the Digital
Operator.
For details on the digit shift display mode, refer to Digit Shift Display Mode on page 3-11.
While the 3G3MX2-E Series Inverter allows for monitoring data up to the display digits of its Digital
Operator, the 3G3MX2-EV2 Series Inverter is able to monitor data that exceeds the display digits.
The individual input mode selection method is changed according to the change of Digital Operator
keys.
The remote Digital Operator (Model: 3G3AX-OP01) allows you to enter the individual input mode by
simultaneously pressing the Increment and Decrement keys, as with conventional models. For details,
refer to Individual Input Mode on page 3-12.
3G3MX2-E
3G3MX2-EV2
Press the Increment key and the Decrement
key simultaneously.
Press and hold the Enter key for 3 seconds.
Change of the Number of Digits on LED Data Display
Addition of the Blinking RUN LED Indicator
Addition of Digit Shift Display Mode
Change of Individual digit Input Mode Selection
