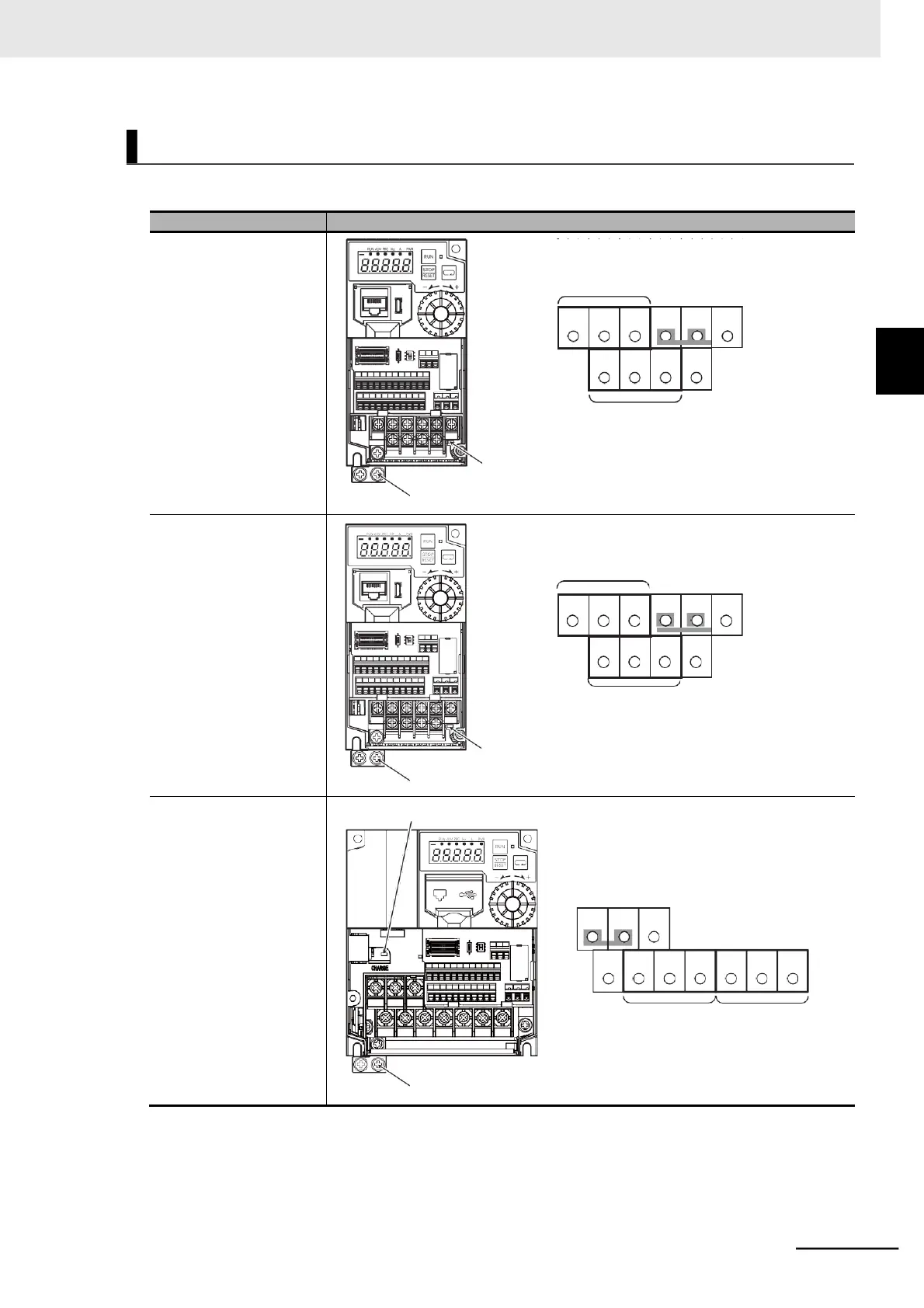

The arrangement of terminals on the inverter main circuit terminal block is shown below.
Applicable model
Terminal arrangement
3G3MX2-A2001-EV2
to A2007-EV2
Power supply
input terminals
Motor output
terminals
Charge indicator
Ground bars: M4 × 2
3G3MX2-AB001-EV2
to AB004-EV2
Power supply
input terminals
Motor output
terminals
Charge indicator
Ground bars: M4 × 2
3G3MX2-A2015-
EV2, A2022-EV2
3G3MX2-A4004-EV2
to A4030-EV2
Charge indicator
+1
P/+
RB
N/- R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
Power supply Motor output
input terminals terminals
Ground bars: M4 × 2
Arrangement of Main Circuit Terminals
2-3-4 Wiring for Main Circuit Terminals
L1
N
+1
P/+
RB
U/T1
V/T2
W/T3
N/-
2
2-3 Wiring
R/L1
S/L2
T/L3
º
+1
P/+
RB
U/T1
V/T2
W/T3
N/-
