Omron MX2 Series - Page 98

2 Design
2 - 20
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)

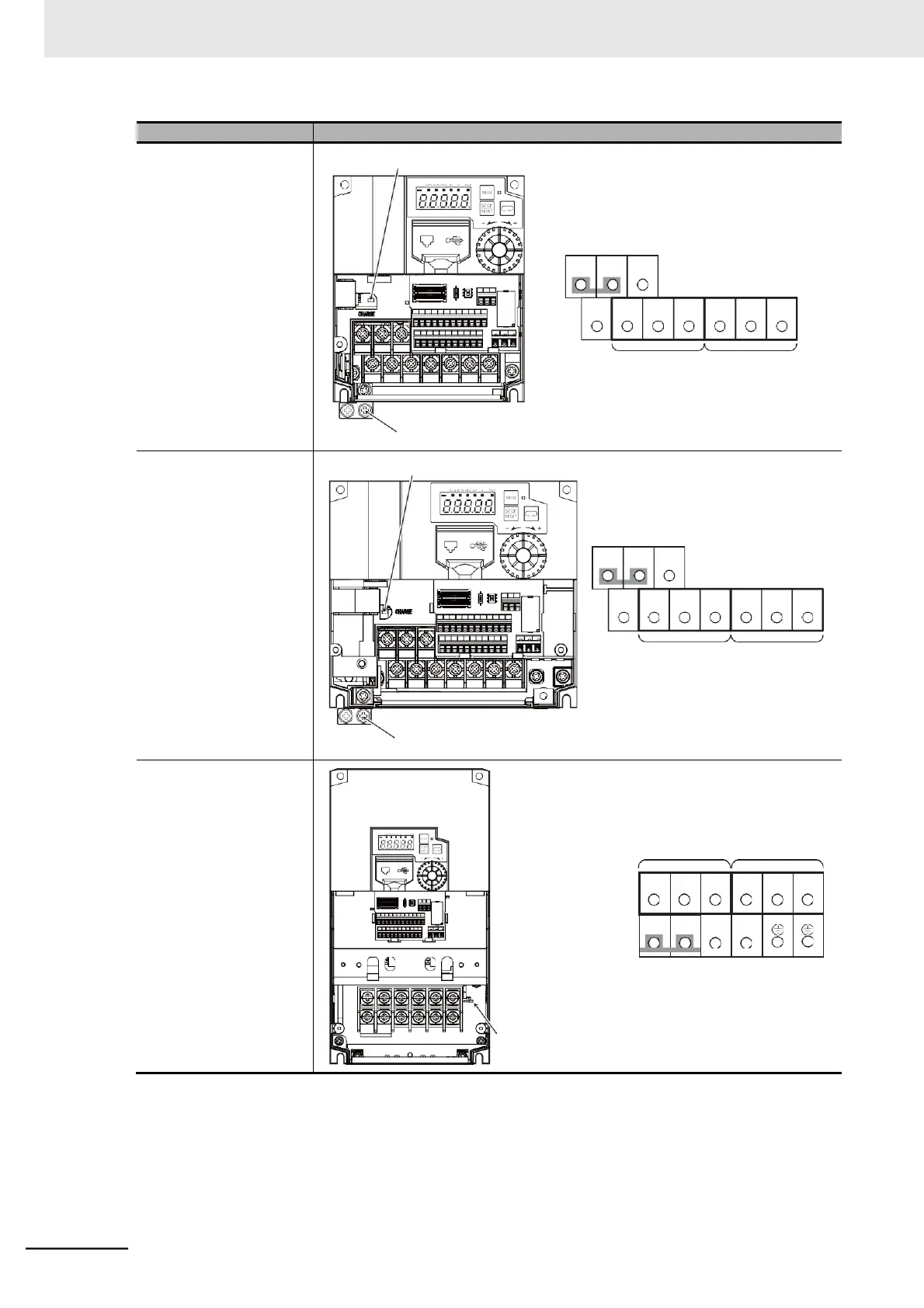

Applicable model
Terminal arrangement
3G3MX2-AB007-
EV2, AB015-EV2,
AB022-EV2
Charge indicator
+1
P/+
RB
N/- L1 N U/T1 V/T2 W/T3
Power supply Motor output
input terminals terminals
Ground bars: M4 × 2
3G3MX2-A2037-EV2
3G3MX2-A4040-EV2
Charge indicator
+1
P/+
RB
N/- R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
Power supply Motor output
input terminals terminals
Ground bars: M4 × 2
3G3MX2-A2055-
EV2, A2075-EV2
3G3MX2-A4055-
EV2, A4075-EV2
Power supply
Motor output
input terminals
terminals
Charge indicator
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
+1
P/+
N/-
RB
G
G
