Example The

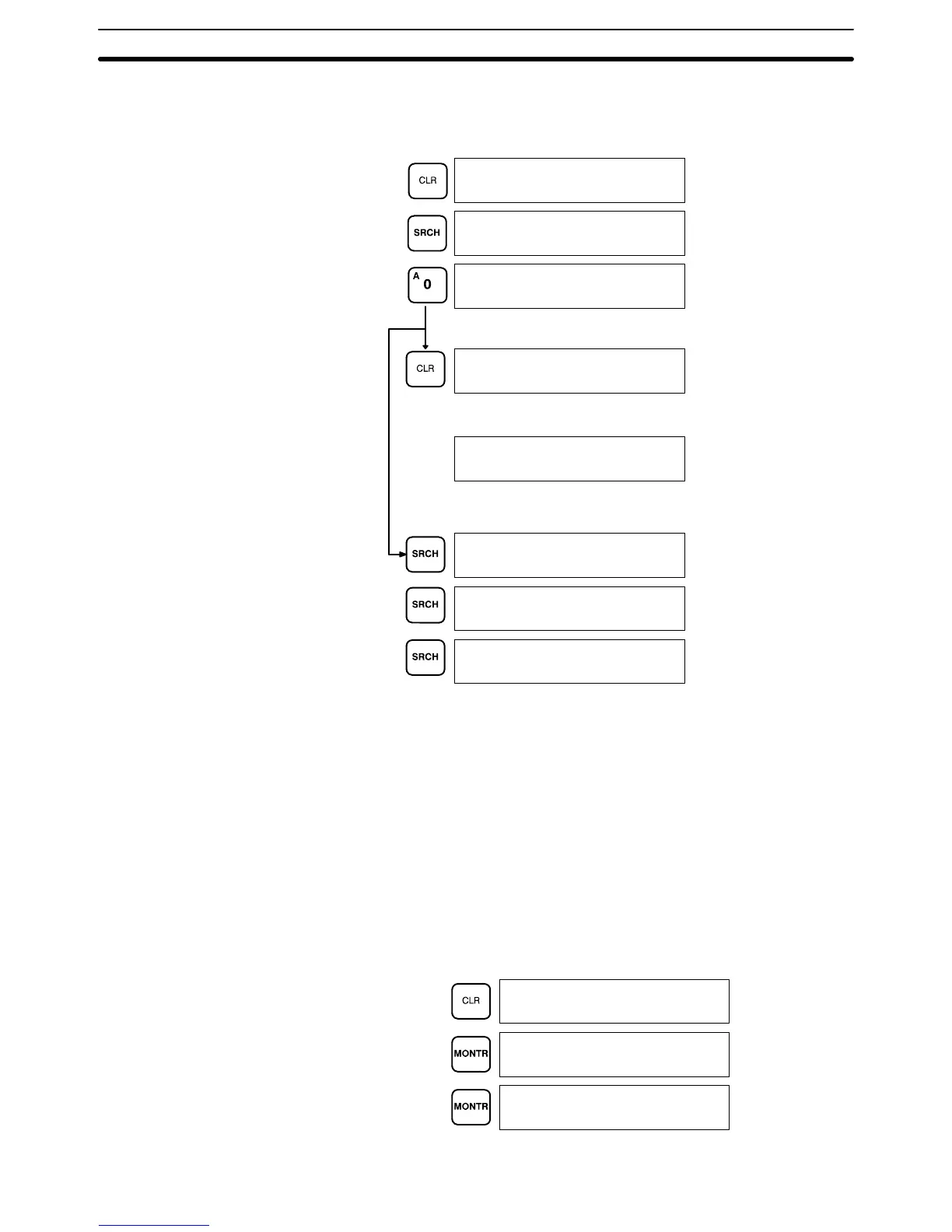

following example shows some of the displays that can appear as a result of
a program check.
Display
#2
Display #3
Halts program check
Check continues until END(01)
When errors are found
Display #1
00699CHK ABORTD
02000PROG CHK
END (01)(02.7KW)
00178CIRCUIT ERR
OUT 00200
00200IL-ILC ERR
ILC (03)
02000NO END INST
END
00000
00000PROG CHK
CHKLVL (0-2)?
00064PROG CHK
4-7-4 Displaying the Cycle Time
Once
the program has been cleared of syntax errors, the cycle time should be
checked.
This is
possible only in RUN or MONIT
OR mode while the program is
being executed. See Section 6 Program Execution Timing for details on the
cycle time.
To display the current average cycle time, press CLR then MONTR. The time
displayed
by
this operation is a typical cycle time. The dif
ferences in displayed
values
depend on the execution
conditions that exist when MONTR is pressed.
Example
00000
00000SCAN TIME
054.1MS
00000SCAN TIME
053.9MS
Inputting, Modifying, and Checking the Program Section 4-7
