85
It
is necessary to register the I/O table if I/O Units
are changed, otherwise an I/O
verification error message, “I/O VER ERR” or “I/O SET ERROR”, will appear
when starting programming operations.
I/O
T
able Registration can be performed only in
PROGRAM mode with the write-
protection switch (pin 1 of the CPU’s DIP switch) set to OFF (OFF=“WRITE”).
Group-2 HIgh-density I/O Units will not be displayed in the I/O table when it is
displayed
using a host computer
. Four asterisks (
∗∗∗∗
), indicating no Unit, will
be
displayed instead.

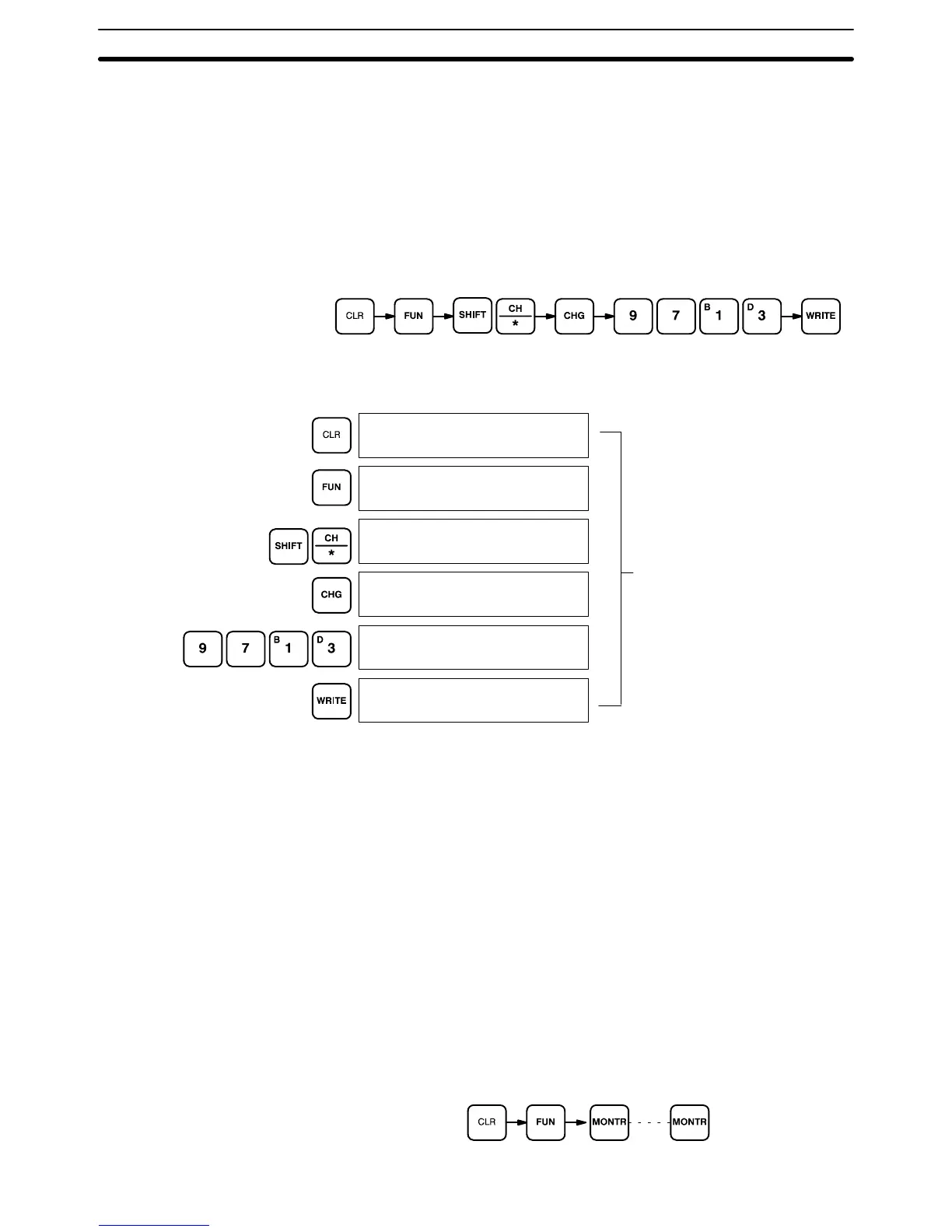

Key Sequence
Initial I/O Table Registration
Register I/O table
00000
00000
FUN (??)
00000IOTBL ?
?-?U=
00000IOTBL WRIT
????
00000IOTBL WRIT
9713
00000IOTBL WRIT
OK
4-6-5 Clearing Error Messages
After
the I/O table has been registered, any error messages recorded in memory
should be cleared. It is assumed here that the causes of any of the errors for
which error messages appear have already been taken care of. If the beeper
sounds
when an attempt is made to clear an
error message, eliminate the cause
of
the error
, and then clear the error message (refer to
Section
10 T
roubleshoot-
ing).
To
display any recorded error messages, press CLR, FUN, and then MONTR.
The first message will appear. Pressing MONTR again will clear the present
message
and display the next error message. Continue pressing MONTR until
all messages have been cleared.
Although error messages can be accessed in any mode, they can be cleared
only in PROGRAM mode.
Key Sequence
Preparation for Operation Section 4-6
