2-1 CPU Components
There
are two groups of CPUs available, one that uses an AC power supply
, and
one
that
uses a DC power supply
. Select one of the models shown below accord
-
ing to requirements of your control system.
CPU model Power supply voltage
C200HS-CPU01-E/CPU21-E/CPU31-E 100 to 120 VAC or 200 to 240 VAC
(voltage selector)
C200HS-CPU03-E/CPU23-E/CPU33-E 24 VDC
The CPU21-E, CPU23-E, CPU31-E, and CPU33-E CPUs have an RS-232C
connector.
The CPU31-E and CPU33-E CPUs support the SYSMAC NET Link
Unit and SYSMAC LINK Unit.
Caution Be
sure to check the power supply used by the CPU. Absolutely
do not provide an AC power sup
-
ply to a DC-type CPU.

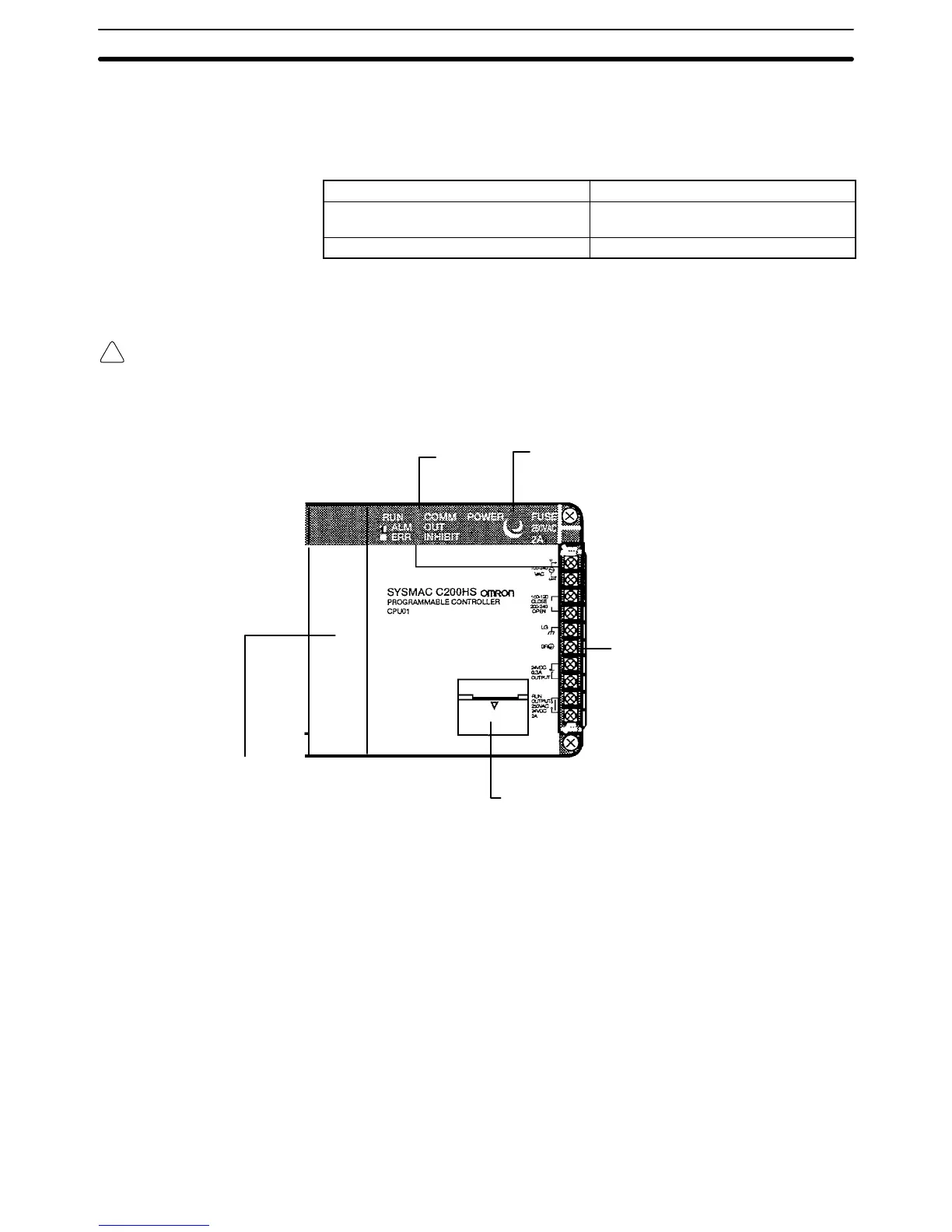

The following diagram shows the main CPU components.
Power fuse (MF51NR, 5.2 dia. x 20 mm)
C200HS-CPU01-E: 2 A, 250 V
C200HS-CPU03-E: 5 A, 125 V
Indicators
Removable terminal block
Cable connector for Peripheral Devices
(Peripheral port)
Battery/switch compartment
The backup lithium battery (C200H-BAT09)
and the DIP switch for setting C200HS opera-
tions are contained. An optional Memory Cas-
sette can also be mounted.
CPU Components Section 2-1
