5-8 Ladder Diagram Instructions
Ladder Diagram instructions include Ladder instructions and Logic Block
instructions
and correspond to the conditions on the ladder diagram. Logic block
instructions are used to relate more complex parts.
5-8-1 LOAD, LOAD NOT, AND, AND NOT, OR, and OR NOT
B: Bit
IR, SR, AR, HR, TC, LR, TR

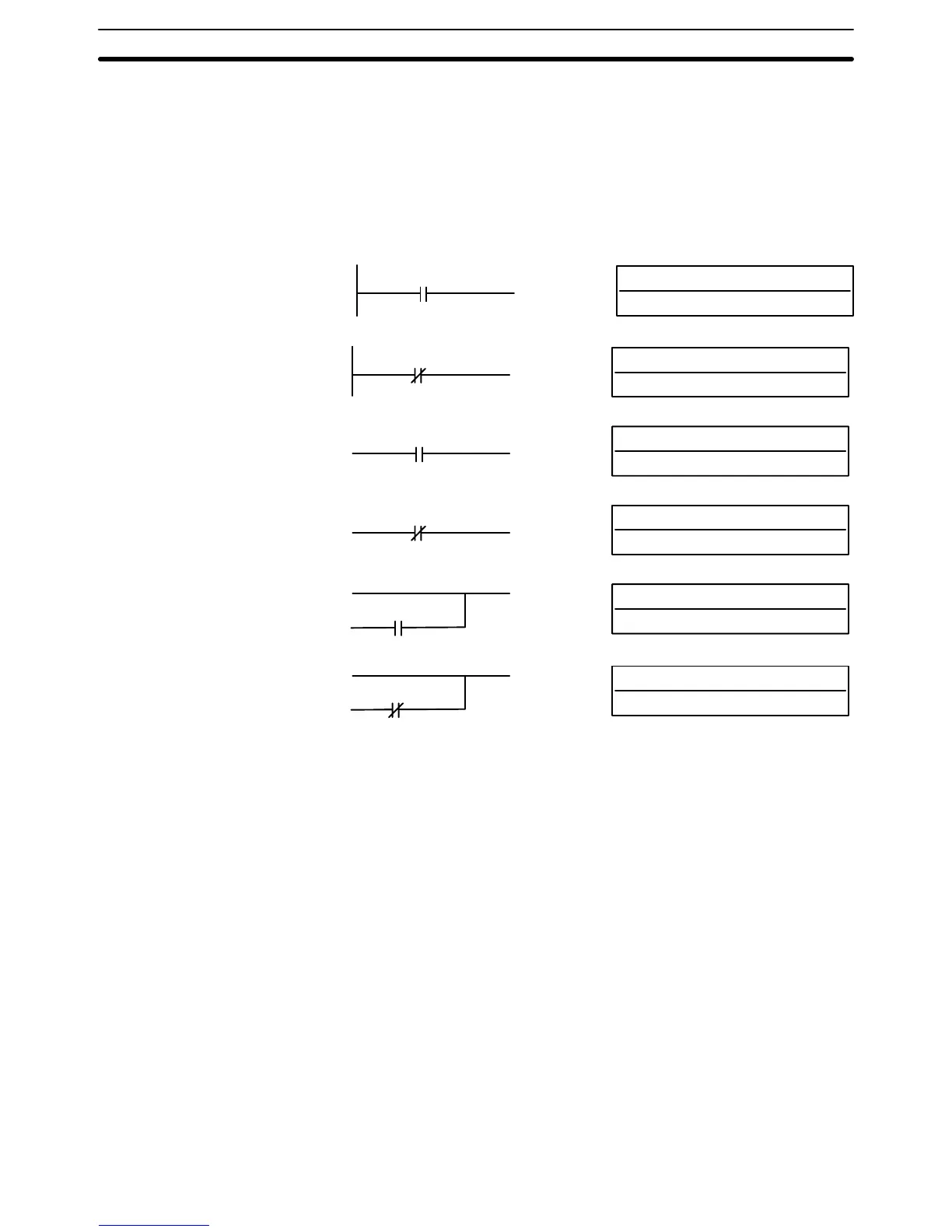

Ladder Symbols Operand Data Areas
LOAD – LD
B
B: Bit
IR, SR, AR, HR, TC, LR
LOAD NOT – LD NOT
B
B: Bit
IR, SR, AR, HR, TC, LR
AND – AND
B
B: Bit
IR, SR, AR, HR, TC, LR
AND NOT – AND NOT
B
B: Bit
IR, SR, AR, HR, TC, LR
OR – OR
B
B: Bit
IR, SR, AR, HR, TC, LR
OR NOT – OR NOT
B
Limitations There
is no limit to
the number of any of these instructions, or restrictions in the
order
in which they must be used, as
long as the memory capacity of the PC is
not exceeded.
Description These
six basic instructions correspond to the
conditions on a ladder diagram.
As described in Section 4 Writing and Inputting the Program, the status of the
bits assigned to each instruction determines the execution conditions for all
other
instructions. Each of these instructions and each bit address can be used
as
many times as required.
Each can be used in as many of these instructions as
required.
The
status of the bit operand (B) assigned to LD or LD NOT determines the first
execution
condition. AND takes
the logical AND between the execution condi
-
tion and the status of its bit operand; AND NOT, the logical AND between the
execution
condition and the inverse of the status of its
bit operand. OR takes the
logical OR between the execution condition and
the status of its bit operand; OR
NOT, the logical OR between the execution condition and the inverse of the
status
of its bit operand. The ladder symbol
for loading TR bits is dif
ferent from
that shown above. Refer to 4-4-3 Ladder Instructions for details.
Flags There are no flags affected by these instructions.
Ladder Diagram Instructions Section 5-8
