Omron SYSMAC C200HS User Manual

152

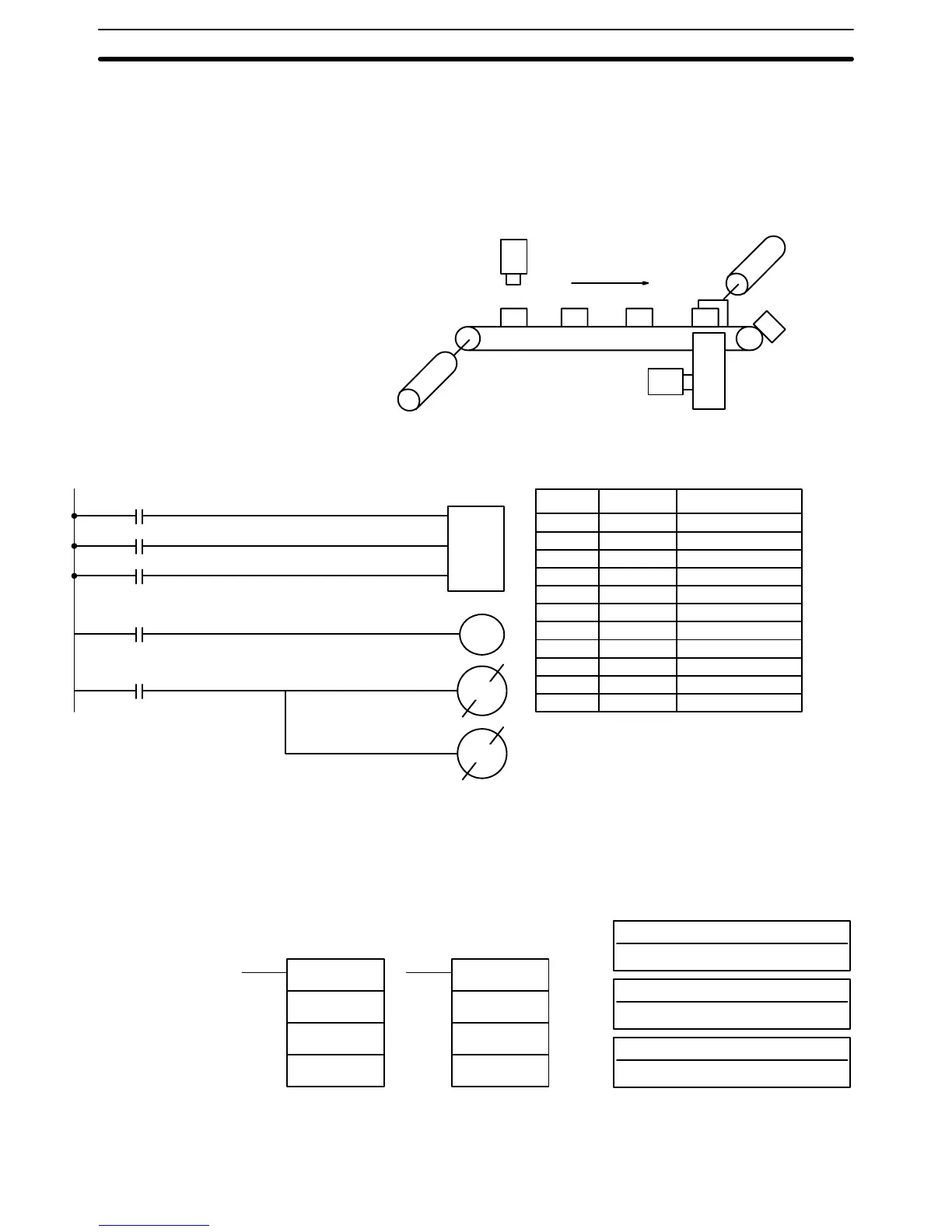

The program is set up so that a rotary encoder (00000) controls execution of
SFT(10) through a DIFU(13),
the rotary encoder is set up to turn ON and OFF
each time a product passes the first sensor . Another sensor (00002) is used to
detect faulty products in the shoot so that the pusher output and HR 0003 of the
shift register can be reset as required.
Chute
(00500)
Sensor
(00001)
Rotary
Encoder
(00000)
Pusher
Sensor
(00002)
I
P
SFT(10)
HR 00
HR 01
R
00001
00000
00003
00500
HR 0003
00500
HR 0003
00002
Address Instruction Operands
00000 LD 00001
00001 LD 00000
00002 LD 00003
00003 SFT(10)
HR 00
HR 01
00004 LD HR 0003
00005 OUT 00500
00006 LD 00002
00007 OUT NOT 00500
00008 OUT NOT HR 0003
5-15-2 REVERSIBLE SHIFT REGISTER – SFTR(84)
C: Control word
IR, AR, DM, HR, LR
St: Starting word
IR, SR, AR, DM, HR, LR
Ladder Symbols
Operand Data Areas
E: End word
IR, SR, AR, DM, HR LR
SFTR(84)
C
St
E
@SFTR(84)
C
St
E
Limitations St and E must be in the same data area and St must be less than or equal to E.
Data Shifting Section 5-15

Omron SYSMAC C200HS Specifications

General

Model	C200HS
Manufacturer	Omron
Series	SYSMAC
Humidity	10 to 90% RH (non-condensing)
Programming Language	Ladder logic
Program Memory	RAM/EPROM/EEPROM
Communication Protocols	SYSMAC LINK, SYSMAC NET
Communication Ports	RS-232C, RS-422
Power Supply	100-240V AC, 24V DC
Operating Temperature	0 to 55°C
Vibration Resistance	10 to 57 Hz, 0.075mm amplitude
