Omron SYSMAC C200HS User Manual

176

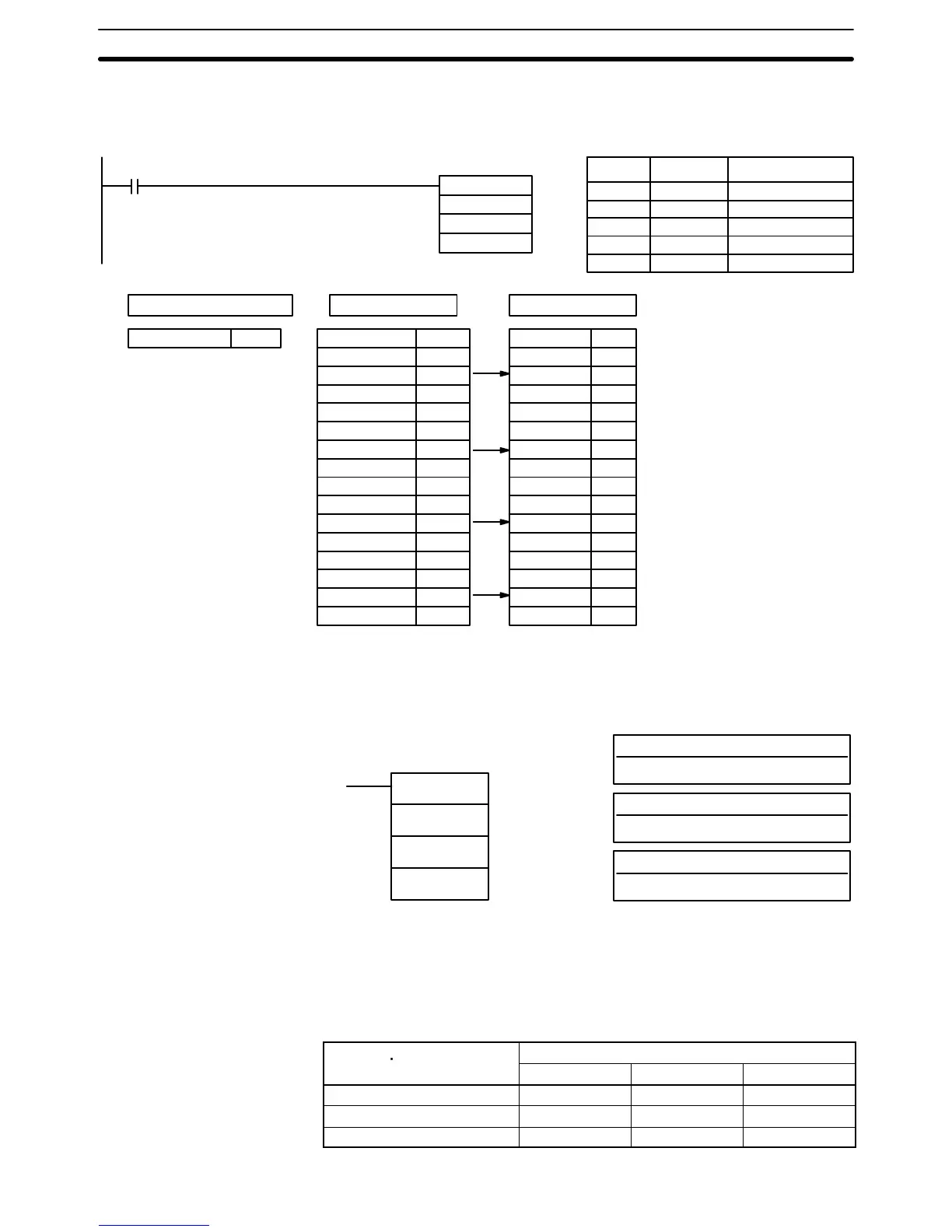

Example The following example shows the comparisons made and the results provided
for TCMP(85). Here, the comparison is made during each cycle when 00000 is
ON.
CD: 001 Upper limits R: HR 05
001 0210 HR 10 0100 HR 0500 0
HR 11 0200
HR 0501 0
HR 12 0210
HR 0502 1
HR 13 0400 HR 0503 0
HR 14 0500
HR 0504 0
HR 15 0600 HR 0505 0
HR 16 0210
HR 0506 1
HR 17 0800 HR 0507 0
HR 18 0900
HR 0508 0
HR 19 1000 HR 0509 0
HR 20 0210
HR 0510 1
HR 21 1200
HR 051 10
HR 22 1300 HR 0512 0
HR 23 1400
HR 0513 0
HR 24 0210
HR 0514 1
HR 25 1600
HR 0515 0
TCMP(85)
001
HR 10
HR 05
00000
Compare the data in IR 001
with the given ranges.
Address Instruction Operands
00000 LD 00000
00001 TCMP(85)
001
HR 10
HR 05
5-17-6 AREA RANGE COMPARE – ZCP(88)
CD: Compare data
IR, SR, AR, DM, HR, TC, LR, #
LL: Lower limit of range
IR, SR, AR, DM, HR, TC, LR, #
Ladder Symbols
Operand Data Areas
UL: Upper limit of range
IR, SR, AR, DM, HR, TC, LR, #
ZCP(88)
CD
LL
UL
Limitations LL must be less than or equal to UL.
Description When
the execution condition is OFF , ZCP(88) is not executed. When the exe -
cution
condition is ON, ZCP(88) compares CD to the range defined by lower limit
LL and upper limit UL and outputs the result to the GR, EQ, and LE flags in the
SR area. The resulting flag status is shown in the following table.
Comparison result
Flag status
p
GR (SR 25505) EQ (SR 25506) LE (SR 25507)
CD < LL 0 0 1
LL ≤ CD ≤ UL 0 1 0
UL < CD 1 0 0
Data Comparison Section 5-17
