Omron SYSMAC C200HS

167

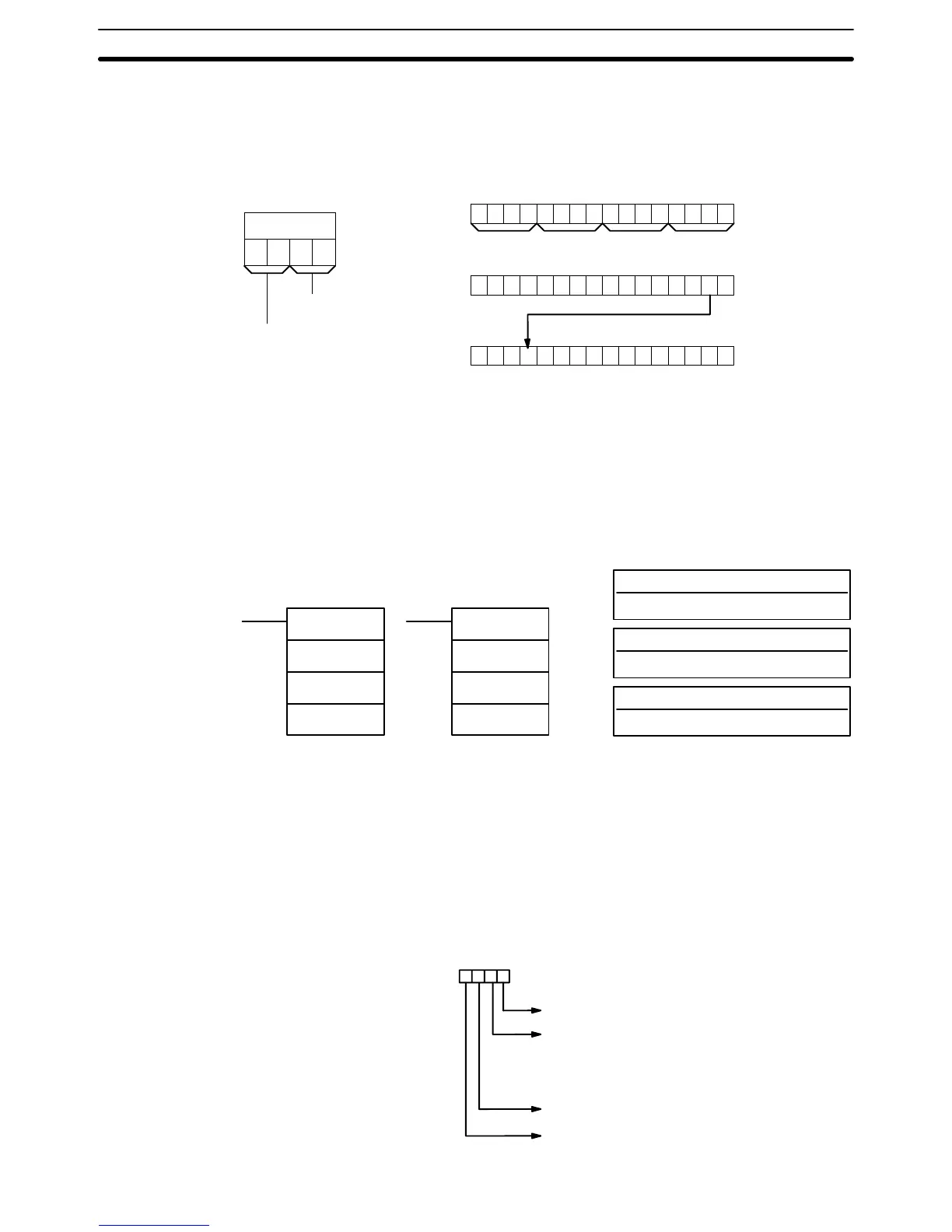

Description When the execution condition is OFF , MOVB(82) is not executed. When the exe -
cution
condition is ON, MOVB(82) copies the specified bit of S to the specified bit
in D. The bits in S and D are specified by Bi. The rightmost two digits of Bi desig -
nate the source bit; the leftmost two bits designate the destination bit.
1
Bi
120
Source bit (00 to 15)
Destination bit (00 to 15)
0 0 0 1 001000000001
Bit
15
Bit
00
0101010001110001
0100010001110001
S
D
Bi
1201
Bit
15
Bit
15
Bit
00
Bit
00
LSBMSB
Flags ER: C is not BCD, or it is specifying a non-existent bit (i.e., bit specification
must be between 00 and 15).
Indirectly
addressed DM word is non-existent. (Content of ∗ DM word is
not BCD, or the DM area boundary has been exceeded.)
5-16-9 MOVE DIGIT – MOVD(83)
S: Source word
IR, SR, AR, DM, HR, TC, LR, #
Di: Digit designator (BCD)
IR, SR, AR, DM, HR, TC, LR, #
Ladder Symbols
Operand Data Areas
D: Destination word
IR, SR, AR, DM, HR, TC, LR
MOVD(83)
S
Di
D
@MOVD(83)
S
Di
D
Limitations The rightmost three digits of Di must each be between 0 and 3.
Description When
the execution condition is OFF , MOVD(83) is not executed. When the exe -
cution condition is ON, MOVD(83) copies the content of the specified digit(s) in S
to the specified digit(s) in D. Up to four digits can be transferred at one time. The
first digit to be copied, the number of digits to be copied, and the first digit to re -
ceive
the copy are designated in Di as shown below . Digits from S will be copied
to consecutive digits in D starting from the designated first digit and continued for
the designated number of digits. If the last digit is reached in either S or D, further
digits are used starting back at digit 0.
First digit in S (0 to 3)
Number of digits (0 to 3)
0: 1 digit
1: 2 digits
2: 3 digits
3: 4 digits
First digit in D (0 to 3)
Not used.
Digit number: 3210
Data Movement Section 5-16
