293
Flags ER: The
specified node number is greater than 126 in a SYSMAC NET Link
System or greater than 62 in a SYSMAC LINK System.
The sent data overruns the data area boundaries.
Indirectly
addressed
DM word is non-existent. (Content of
:
DM word is
not BCD, or the DM area boundary has been exceeded.)
There is no SYSMAC NET Link/SYSMAC LINK Unit.

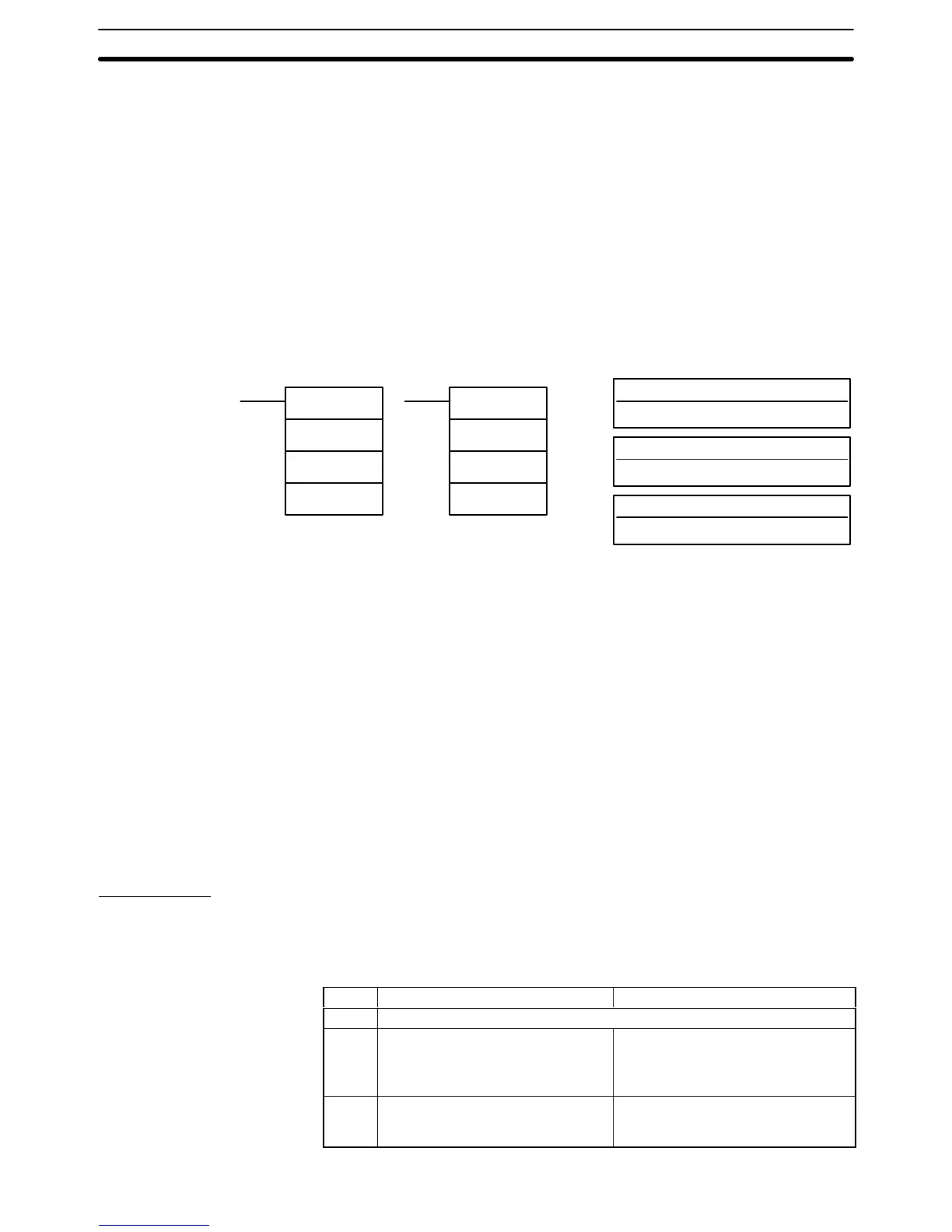

5-26-2 NETWORK RECEIVE – RECV(98)
S: Source beginning word
IR, SR, AR, DM, HR, TC, LR
D: Destination beginning word
IR, AR, DM, HR, TC, LR
Operand Data Areas
C: First control data word
IR, AR, DM, HR, TC, LR
Ladder Symbols
RECV(98)
S
D
C
@RECV(98)
S
D
C
Limitations Can
be performed with the CPU31-E/33-E only
. C through C+2 must be
within
the
same data area and must be within the values specified below
. T
o be able to
use
RECV(98), the system must have a SYSMAC NET Link or SYSMAC LINK
Unit mounted.
When
the execution condition is OFF
, RECV(98) is not executed. When the exe
-
cution
condition is ON, RECV(98) transfers data beginning at S from a node on
the SYSMAC NET Link/SYSMAC LINK System to words beginning at D. The
control
words, beginning with C, provide the number of words to be received, the
source node, and other transfer parameters.
The
status of bit 15 of C+1 determines whether the instruction is for a SYSMAC
NET Link System or a SYSMAC LINK System.
Control Data
SYSMAC NET Link Systems The source port number is always set to 0. Set the network number to 0 to re-
ceive
data to a node on the same Subsystem (i.e., network). Refer to the
SYS
-
MAC NET Link System Manual for details.
Word Bits 00 to 07 Bits 08 to 15
C Number
of
words (0 to 1000 in 4-digit hexadecimal, i.e., 0000
hex
to 03E8
hex
)
C+1 Network
number (0 to 127 in 2-digit
hexadecimal, i.e., 00
hex
to 7F
hex
)
Bit 14 ON: Operating level 0
OFF: Operating level 1
Bits 08 to 13 and 15:
Set to 0.
C+2 Source node (1 to 126 in 2-digit
hexadecimal, i.e., 01
hex
to 7E
hex
)
Source port
NSB: 00
NSU: 01/02
Description
Network Instructions Section 5-26
