7-1-8 Differentiation Monitor
This operation can be used to monitor the up or down dif ferentiation status of bits
in the IR, SR, AR, LR, HR, and TC areas. T o monitor up or down dif ferentiation
status,
display the desired bit leftmost on the bit monitor display , and then press
SHIFT and the Up or Down Arrow Key.
A CLR entry changes the Dif ferentiation Monitor operation back to a normal bit
monitor display.

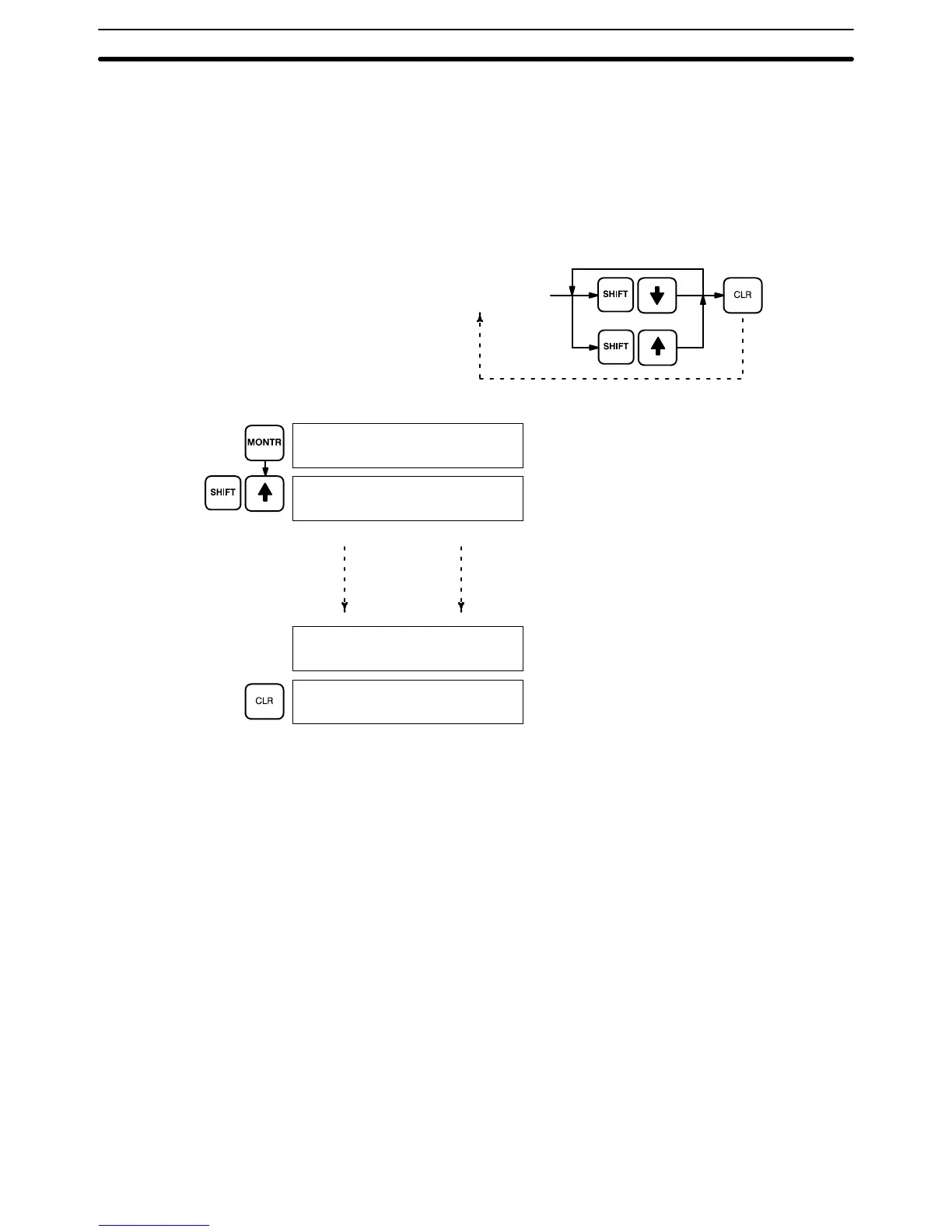

Key Sequence
Bit monitor in progress
L000000108H2315
OFF OFF ON
L000000108H2315
U@OFF OFF ON
L000000108H2315
OFF OFF ON
D0002
0123
Monitor the desired bit so that it is
leftmost on the screen.
Press SHIFT and Up Arrow to
specify up dif ferentiation (U@).
(Press SHIFT and Down Arrow to
specify down dif ferentiation (D@).
The buzzer will sound when up
(U@) or down (D@) dif ferentiation is
detected.
The original bit monitor display will
return when dif ferentiation
monitoring is completed.
Press CLR to cancel differentiation
monitoring and return to the original
bit monitor display .
Example
Monitoring Operation and Modifying Data Section 7-1
