Note the orientation and correct handling of the processor package.

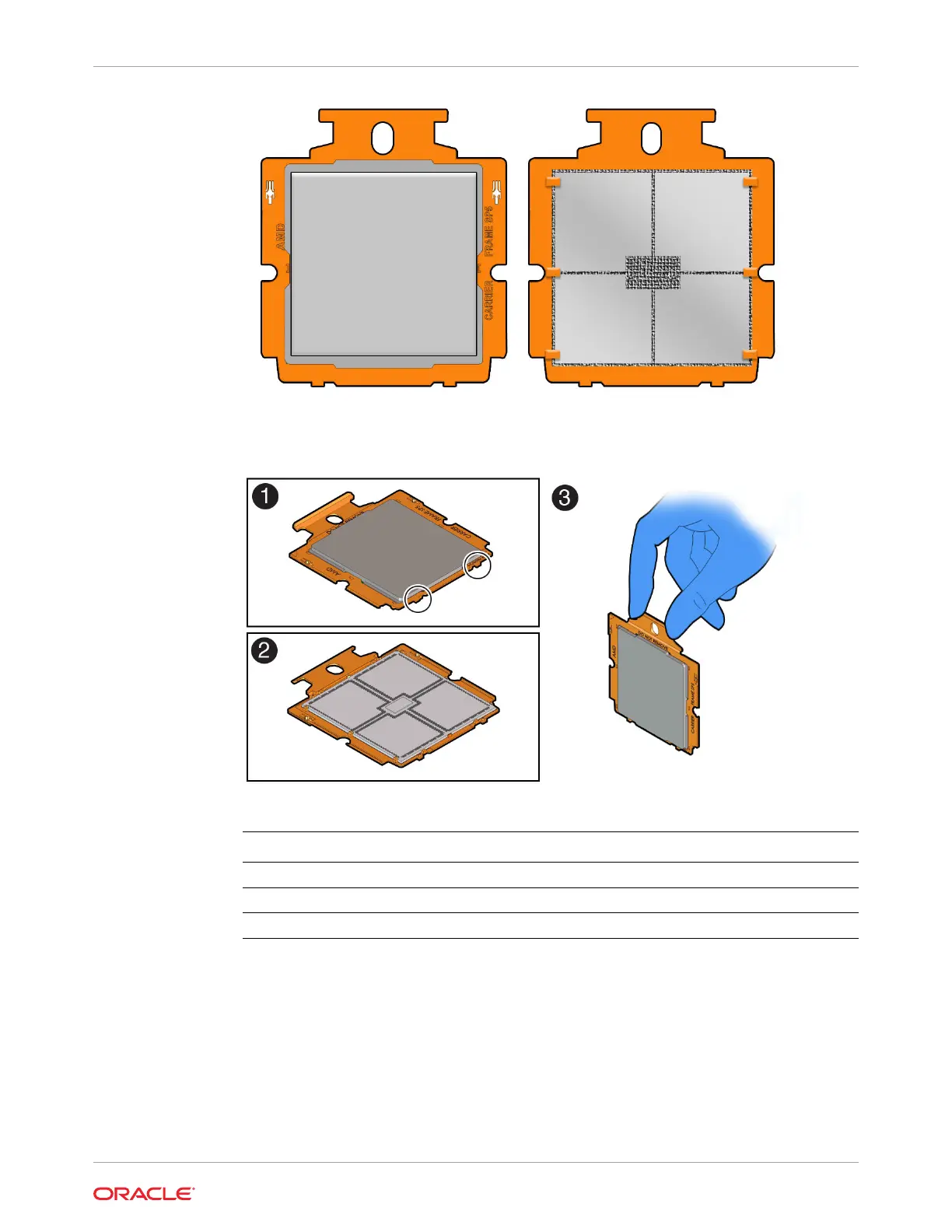

Callout Description
1 Top of processor carrier (insertion tabs are circled)
2 Bottom of processor carrier (contacts the socket)
3 Use of the processor carrier handle
3. Holding the processor carrier by its handle, slide it into the socket Rail Frame.
