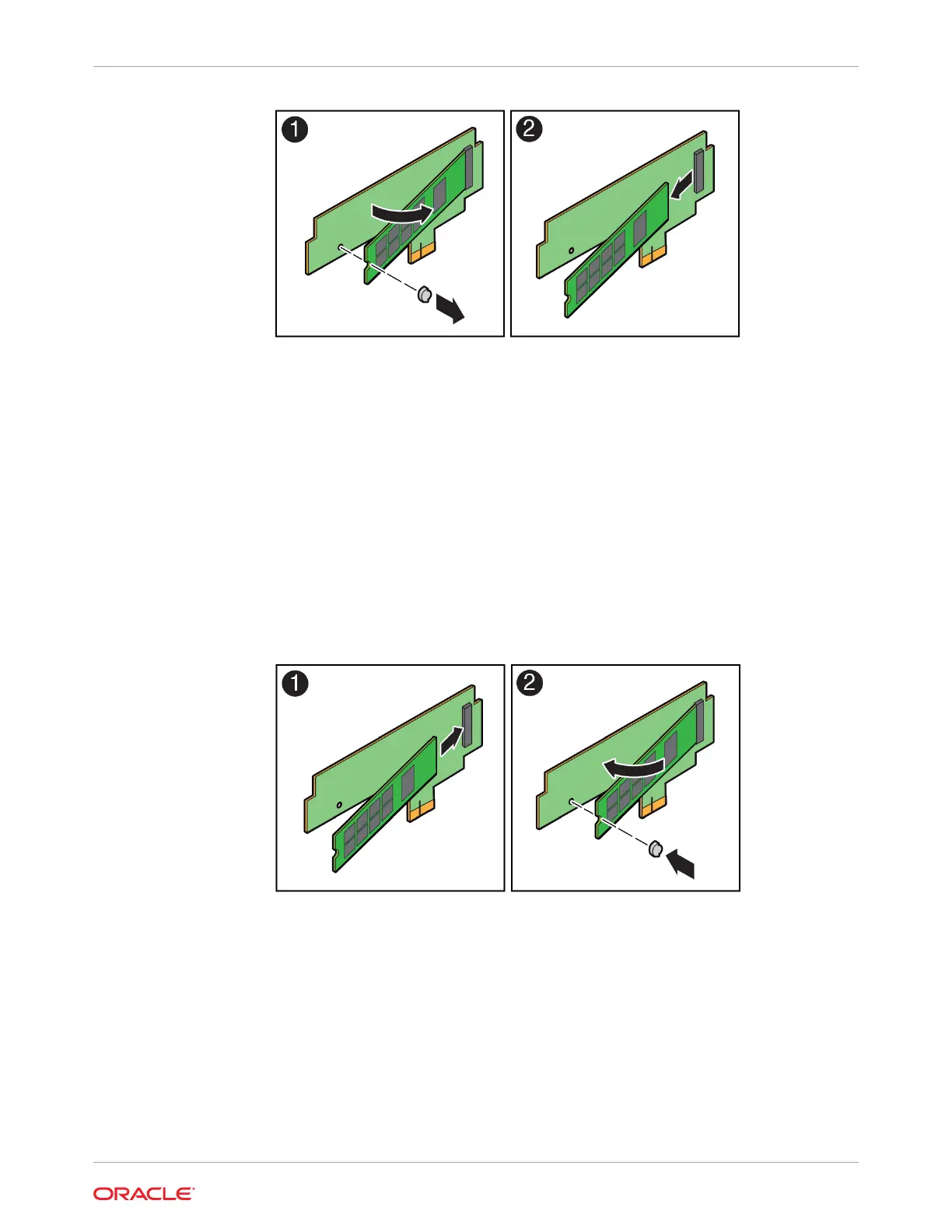

b. Remove the M.2 flash SSD from its connector socket on the riser board socket [2].
c. Place the M.2 flash SSD on an antistatic mat.
Install a Flash Riser Board
The system motherboard provides two slots (labeled SSDR 0 and SSDR 1) for flash riser
boards. When installing flash riser boards, install the first riser board into slot SSDR 0 and the
second into SSDR 1.
1. Unpack the replacement flash riser board and place it on an antistatic mat.
2. Install the M.2 flash SSD onto the riser board.
a. At an approximate 45 degree angle, insert the M.2 flash SSD into its connector
socket on the riser board socket [1].
b. With the M.2 flash SSD at an approximate 45 degree angle to the riser board, insert
the plastic retainer clip into the notched end of the M.2 flash SSD and then push
down on the end of the M.2 flash SSD until the retainer clip snaps into place in the
hole on the riser board [2].
You hear an audible click when the M.2 flash SSD is secured to the flash riser board.
3. Install the flash riser board.
a. Ensure that the riser board securing levers on the motherboard are in the open
position.
Chapter 4
Servicing Internal M.2 Flash SSDs (CRU)
4-7
